Symptom Chart

NOTE: New speed control diagnostic software is available in Version 12 or higher for the diagnostic tool. When using this software, it is necessary to use Next Generation Speed Control Adapter 007-00586 with the diagnostic tool.

NOTE: Refer to the Wiring Diagrams for connector numbers stated in the Pinpoint Test.

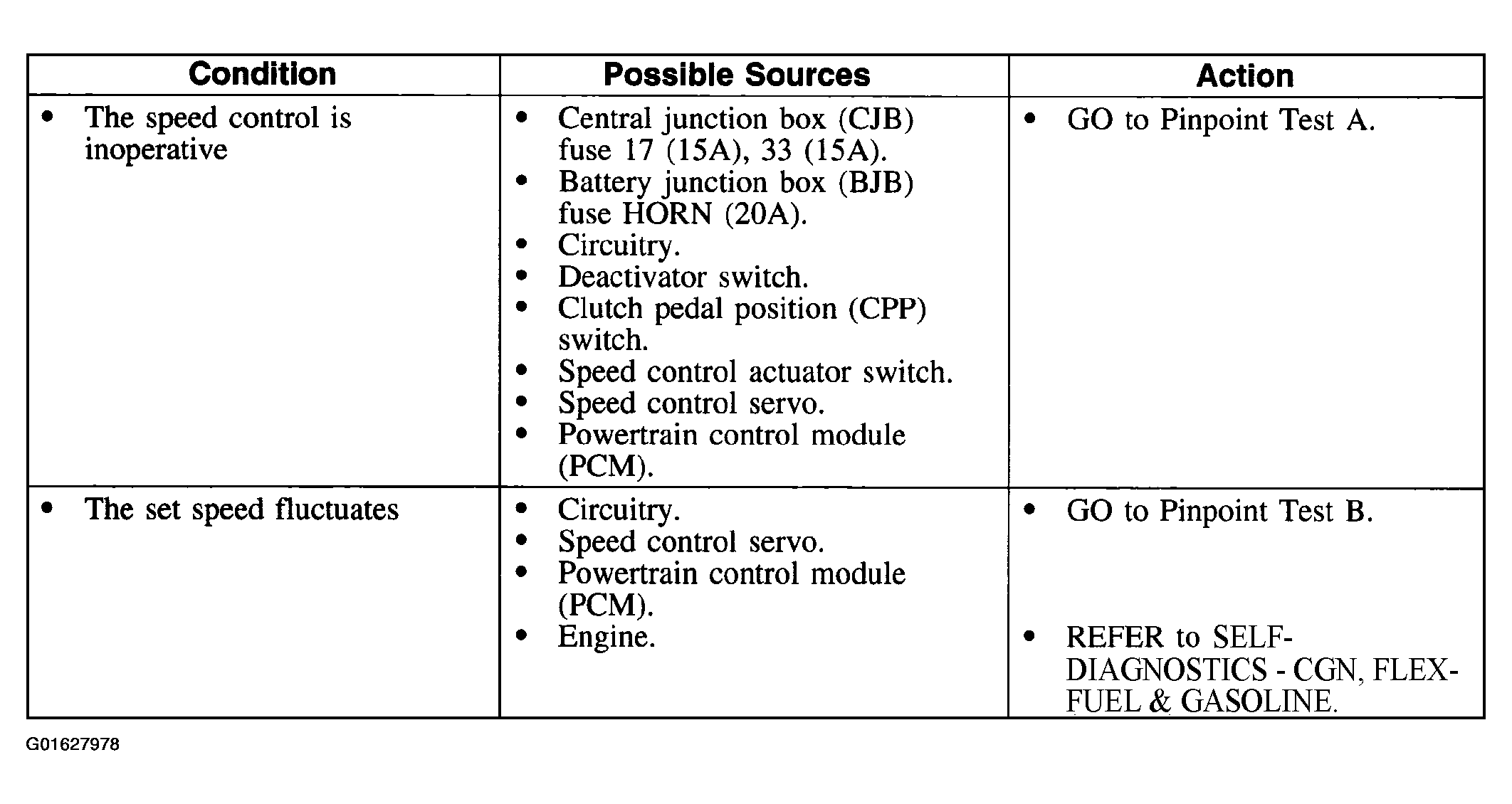

Fig 1: Speed Control Symptom Diagnostic Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

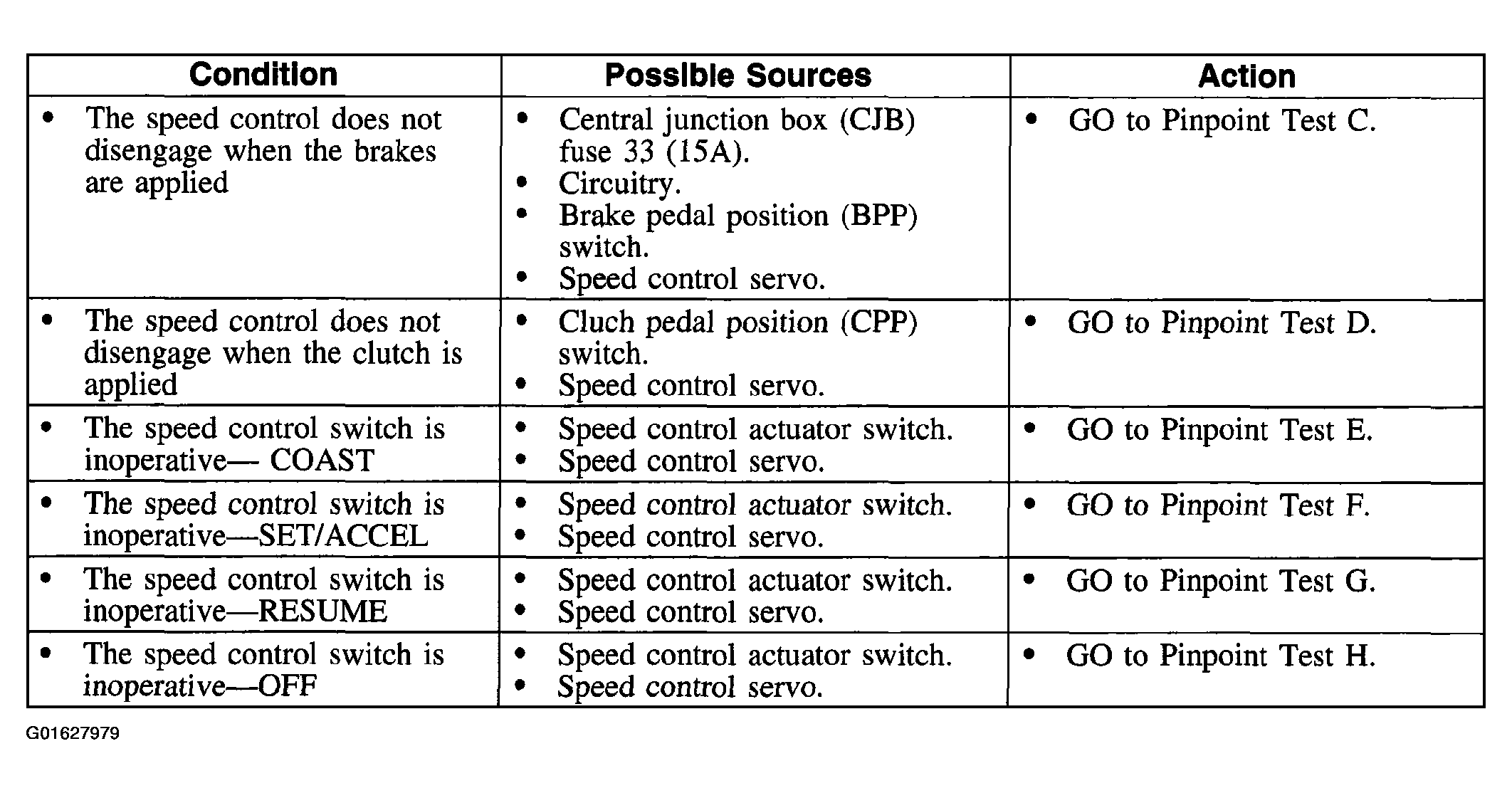

Fig 2: Speed Control Symptom Diagnostic Chart (2 Of 2)

Courtesy of FORD MOTOR CO.
