Rear Window Defrost Relay

NOTE: Rear window defrost relay is located behind center of instrument panel. See Fig 1.

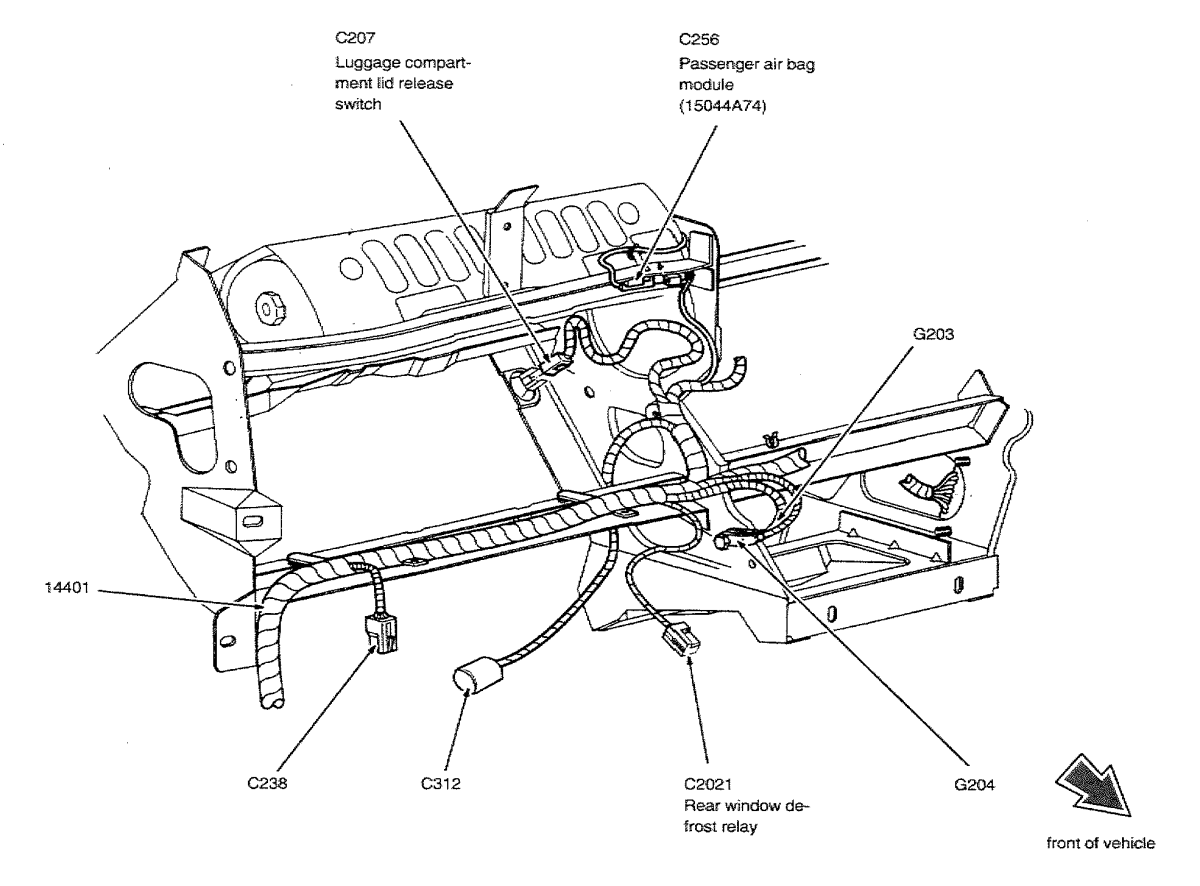

Fig 1: Locating Instrument Panel Electrical Components And Relays

Courtesy of FORD MOTOR CO.

INSTRUMENT PANEL ELECTRICAL COMPONENTS RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C2021	Rear Window Defrost Relay
