Relay Box

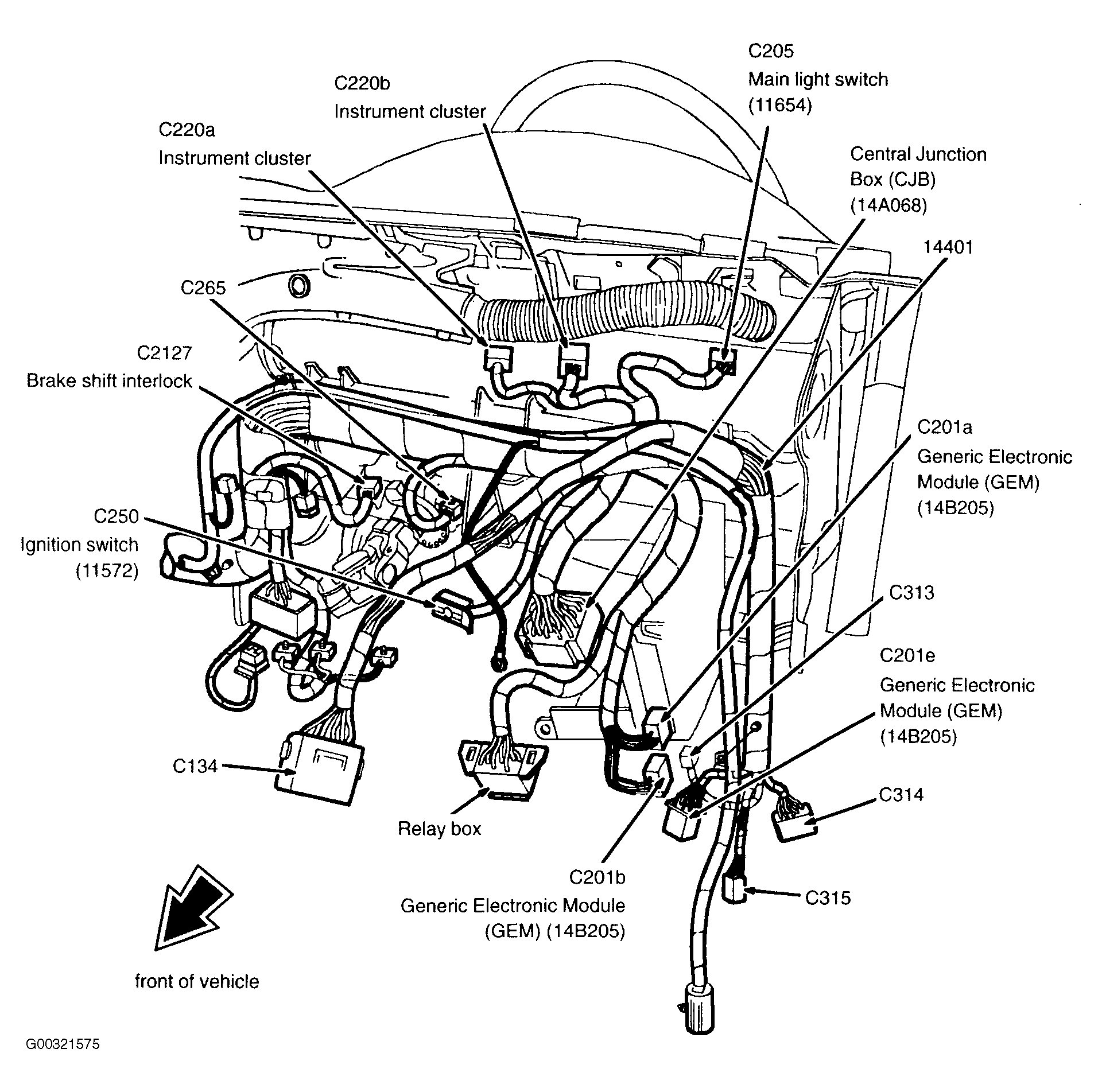

NOTE: Relay box is located behind left side of dash. See Figure.

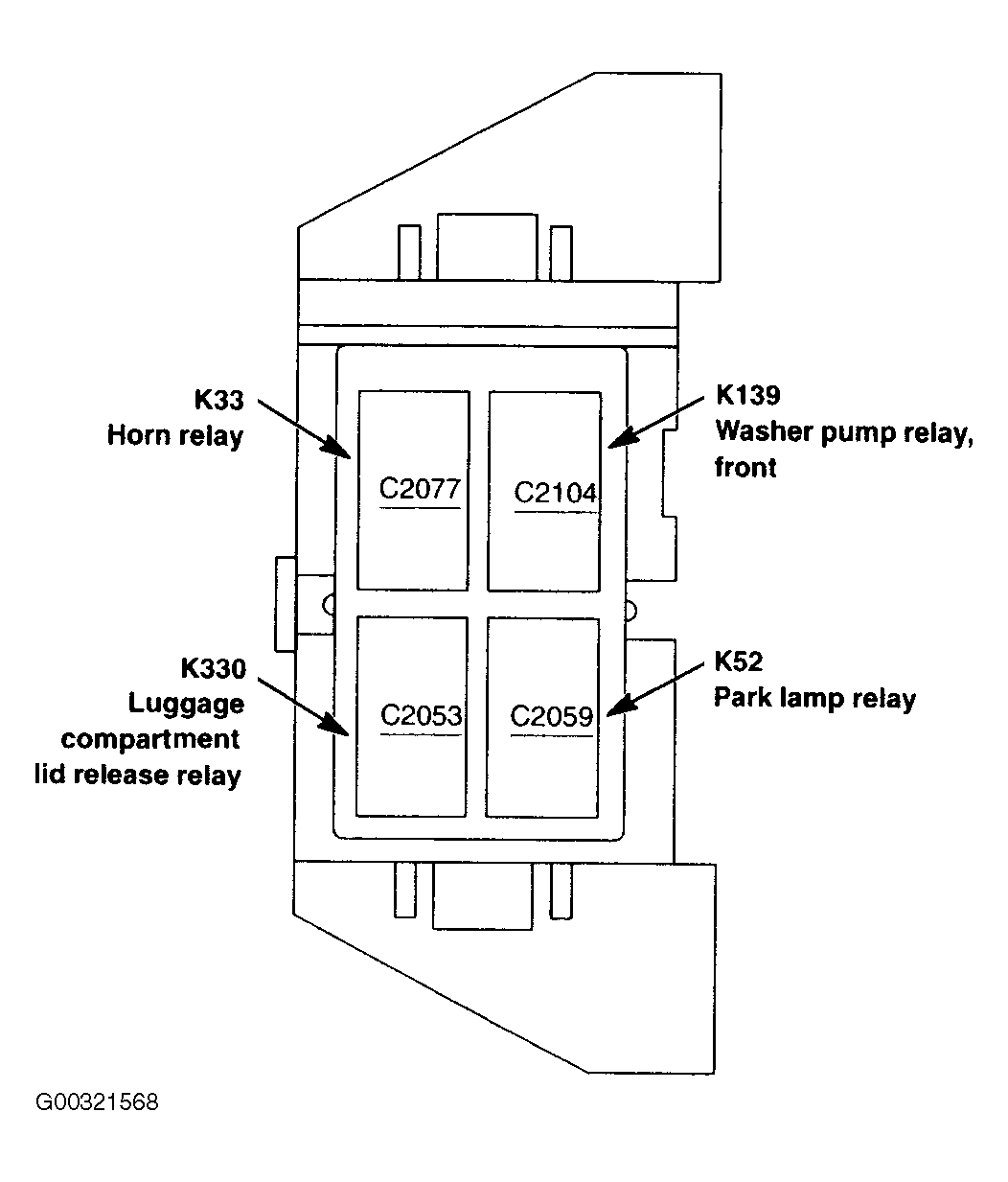

Fig 1: Identifying Relay Box Components

Courtesy of FORD MOTOR CO.

RELAY BOX RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C2053	K330 Luggage compartment lid release relay
C2077	K33 Horn Relay
C2104	K139 Washer pump relay, front
C2059	K52 Park lamp relay
