Front Suspension: Description

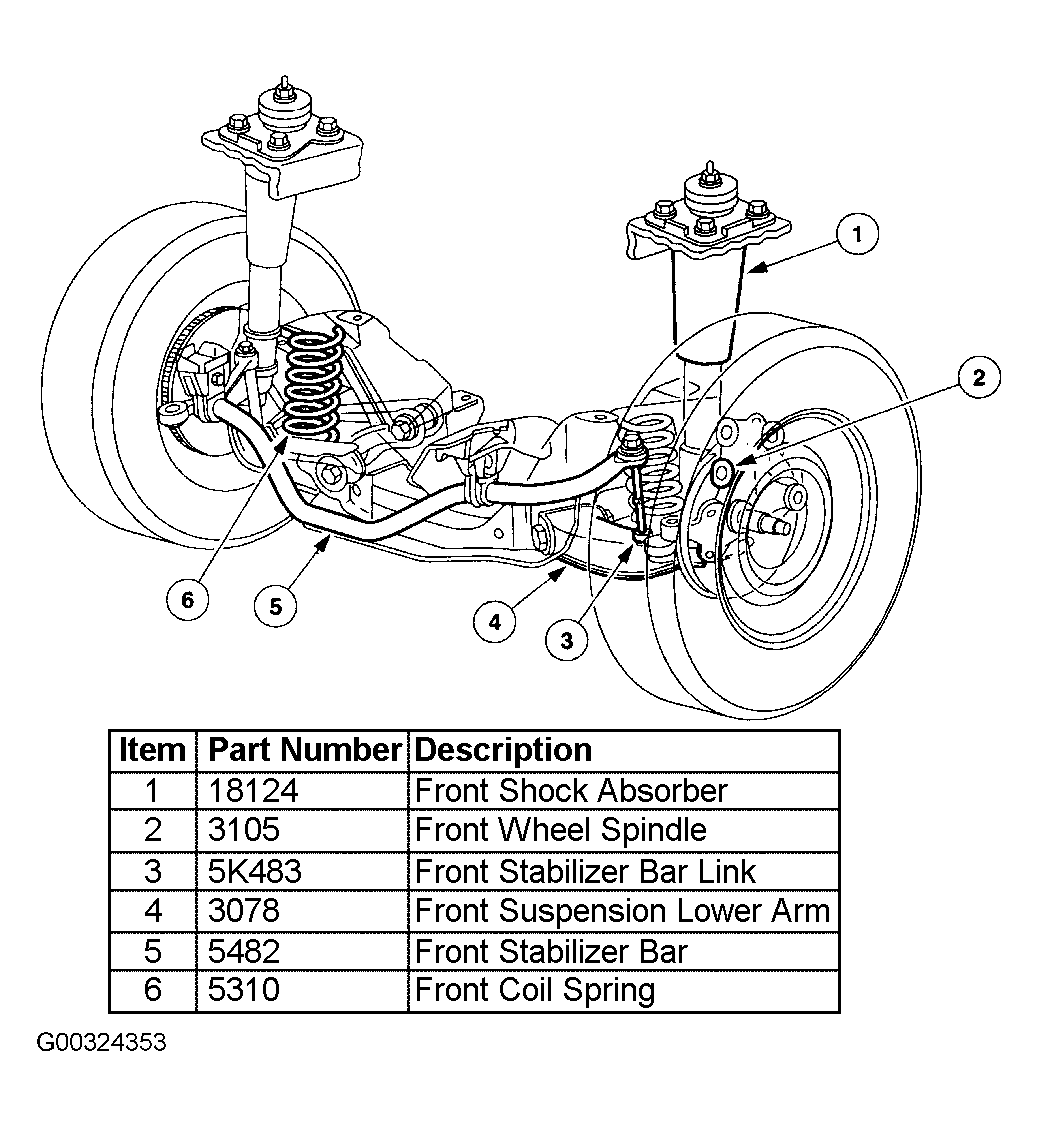

Front suspension is a modified MacPherson strut design. The design uses a coil spring located between lower control arm and a spring pocket in crossmember. Gas-pressurized hydraulic shock struts and a front stabilizer bar are used. See Fig 1.
