Camber Adjustment: Rear

Loosen the nut. See Fig 1 . Rotate the bolt and the cam to the correct camber setting. See Fig 2 . See WHEEL ALIGNMENT SPECIFICATIONS  . Tighten the nut to specification while holding the bolt and the cam stationary. See TORQUE SPECIFICATIONS  . Recheck the wheel alignment. Adjust as necessary.

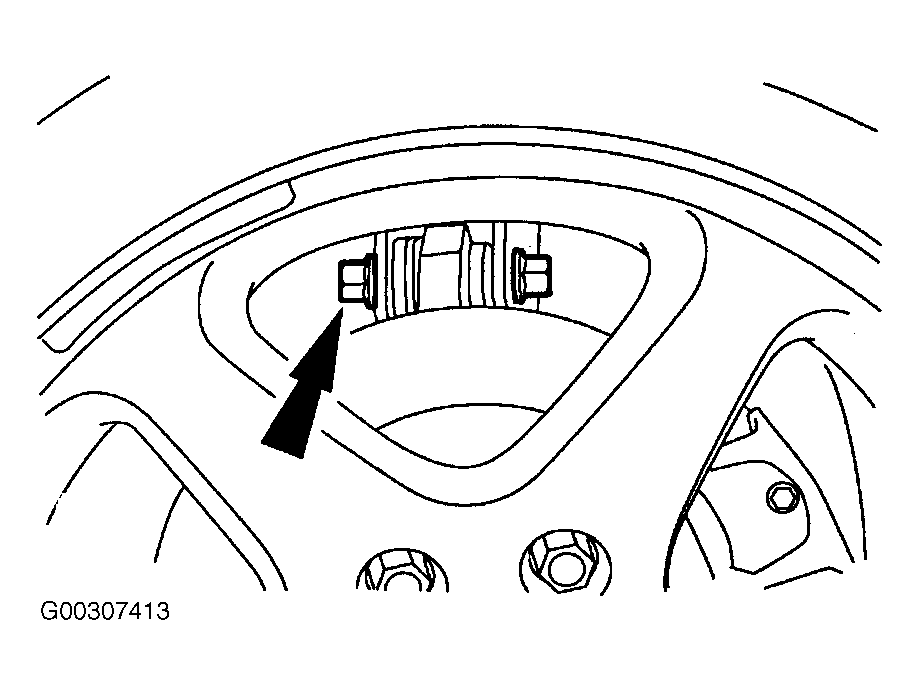

Fig 1: Locating Rear Camber Adjustment Nut

Courtesy of FORD MOTOR CO.

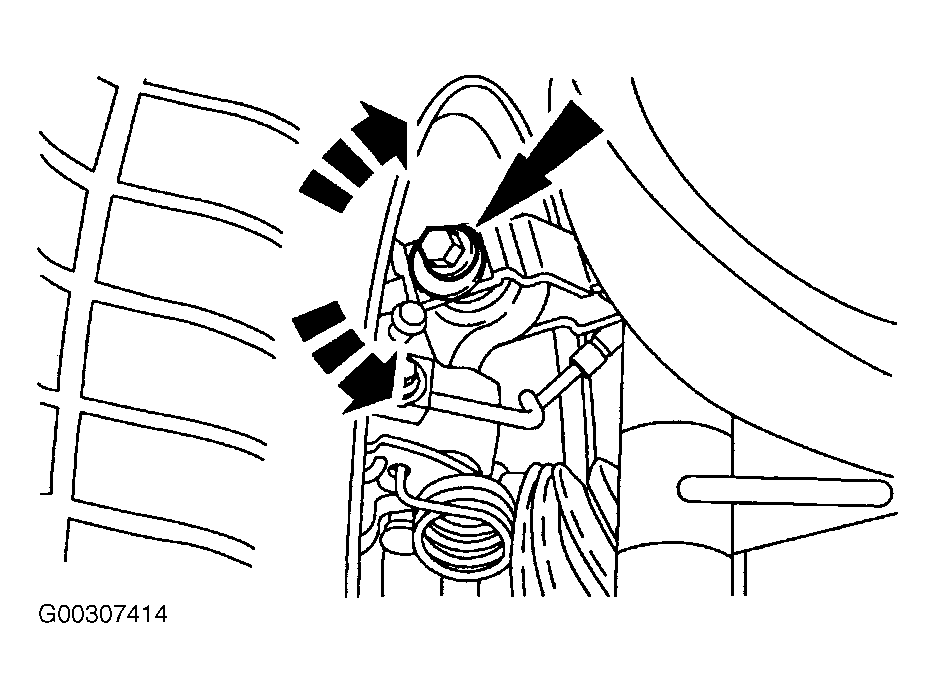

Fig 2: Adjusting Rear Camber

Courtesy of FORD MOTOR CO.
