Acceleration Control System - BLACKWOOD & F150 Pickup
›
Diagnosis And Testing
›
Acceleration Control
›
Symptom Chart
Symptom Chart

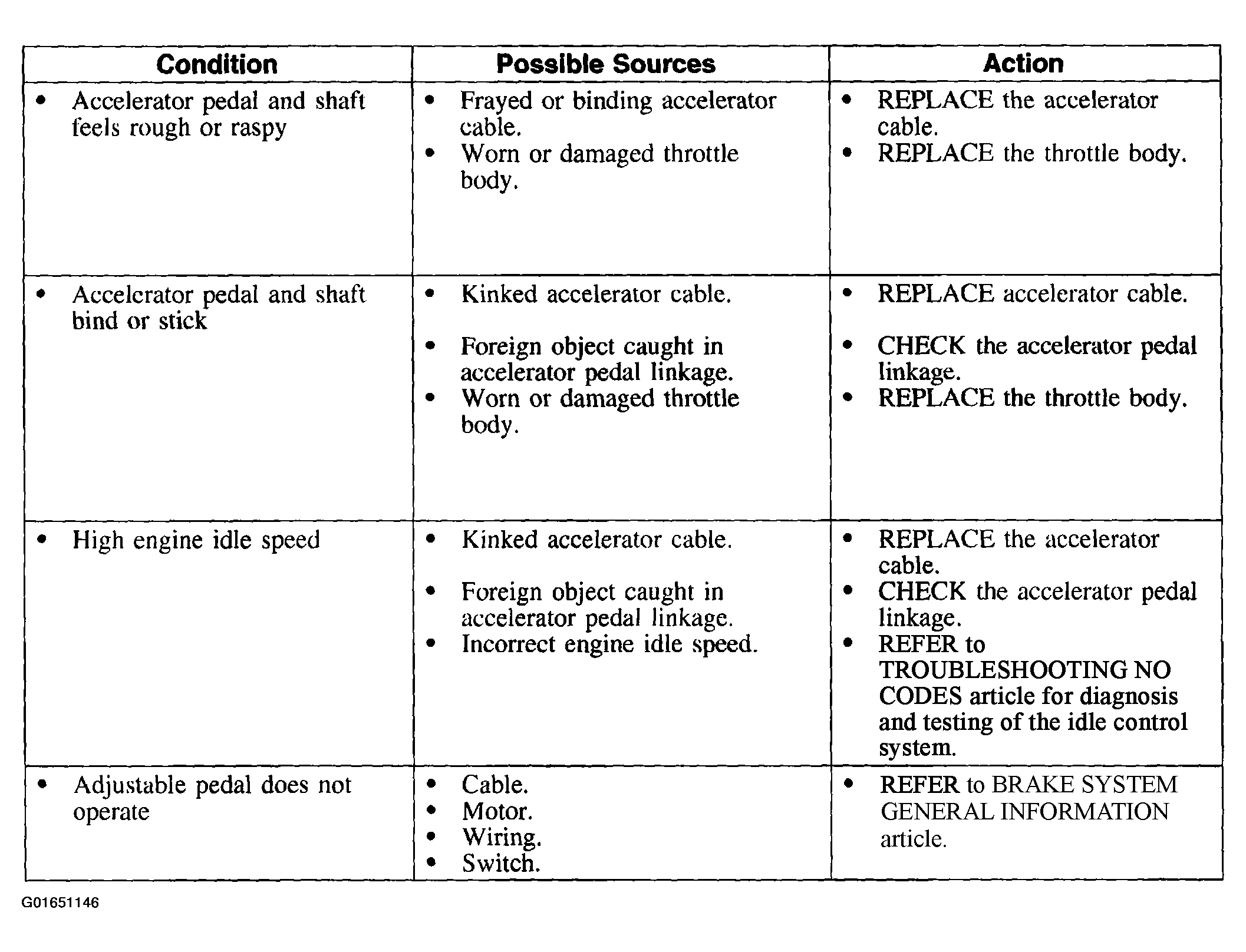

Fig 1: Acceleration Control Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

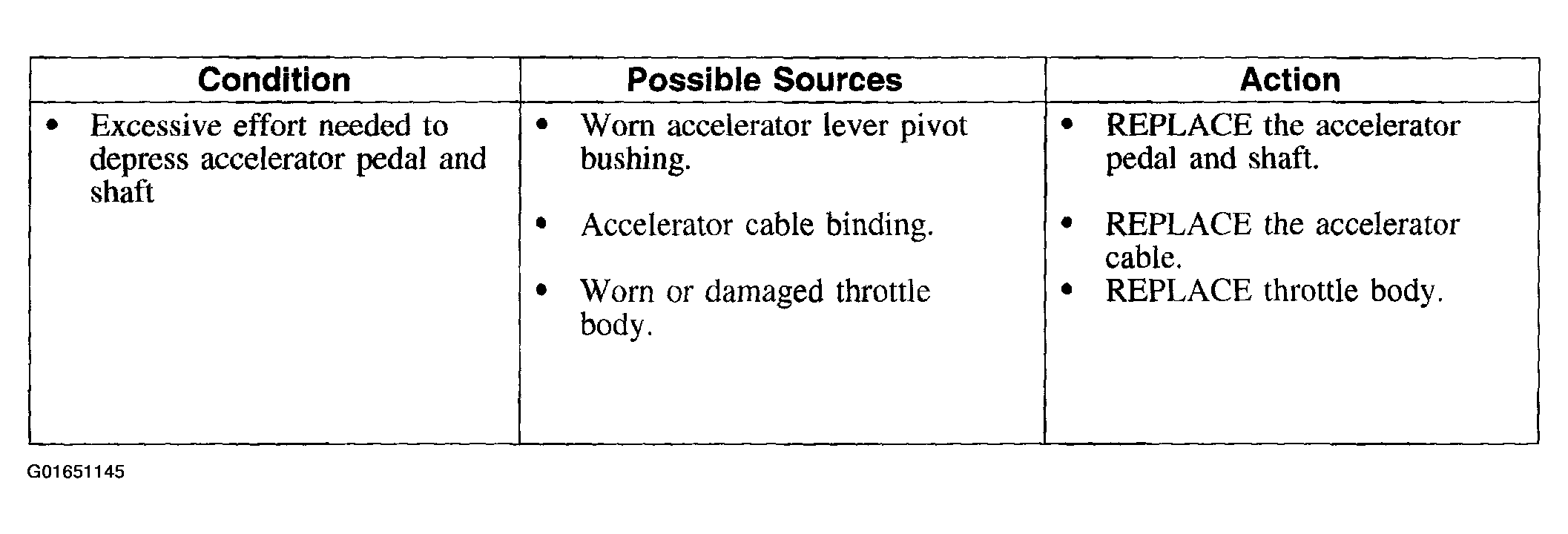

Fig 2: Acceleration Control Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
