Intermediate Shaft Speed Sensor: Installation

  1. Inspect and lubricate O-ring with petroleum jelly.
    1. Install the ISS sensor into the transmission.
    2. Tighten ISS sensor screw.

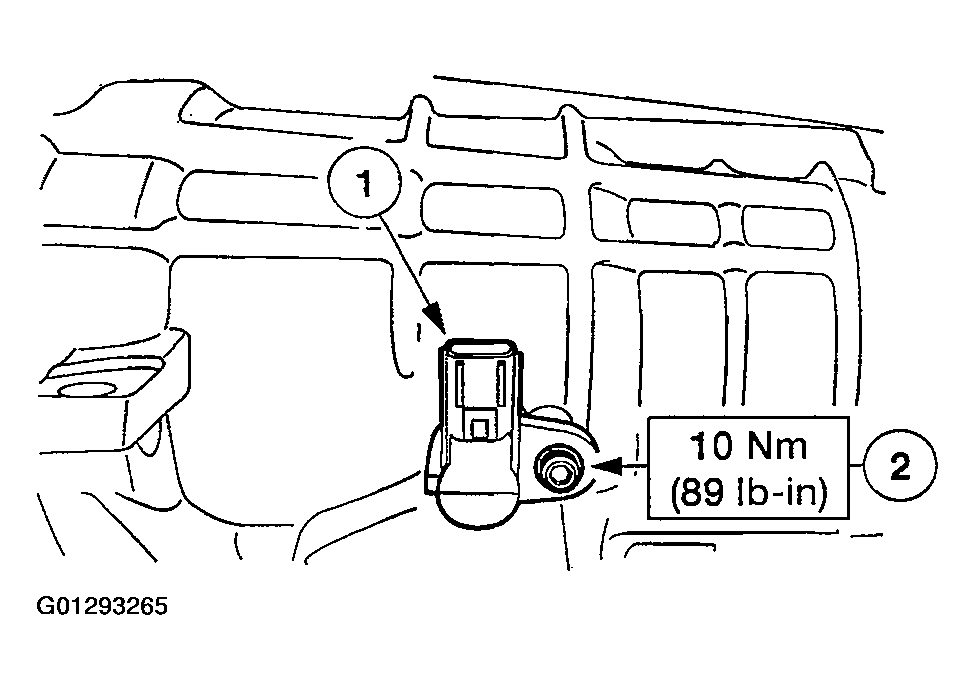

      Fig 1: Installing ISS Sensor
      G01293265Courtesy of FORD MOTOR CO.
  2. Connect ISS sensor electrical connector.

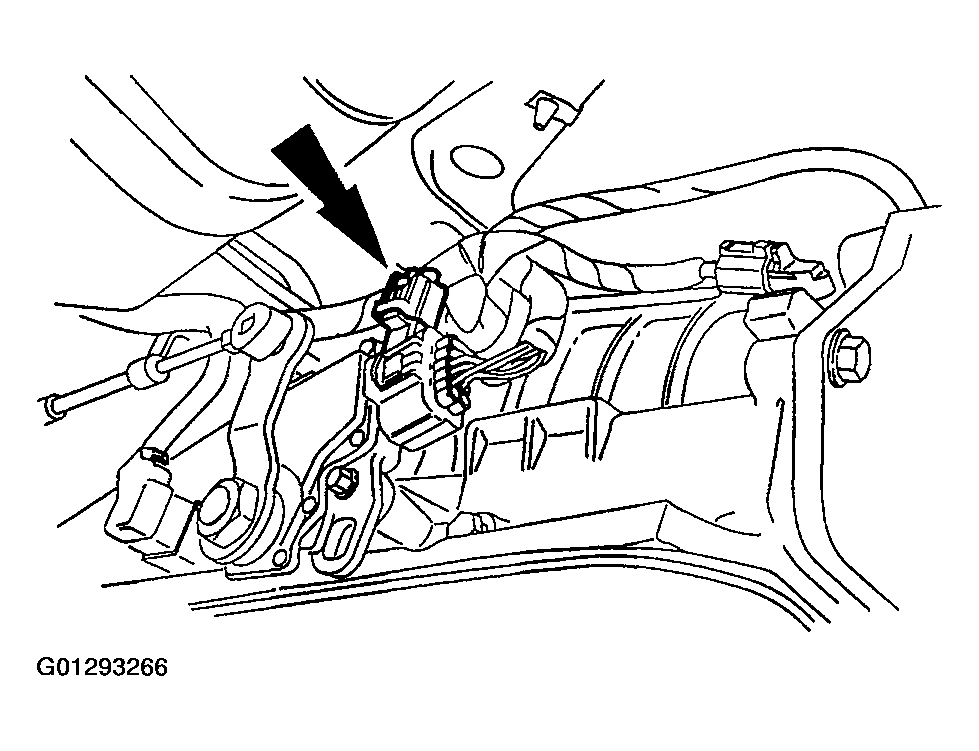

    Fig 2: Connecting ISS Sensor Electrical Connector
    G01293266Courtesy of FORD MOTOR CO.
  3. Lower the vehicle.
