End Play Specifications

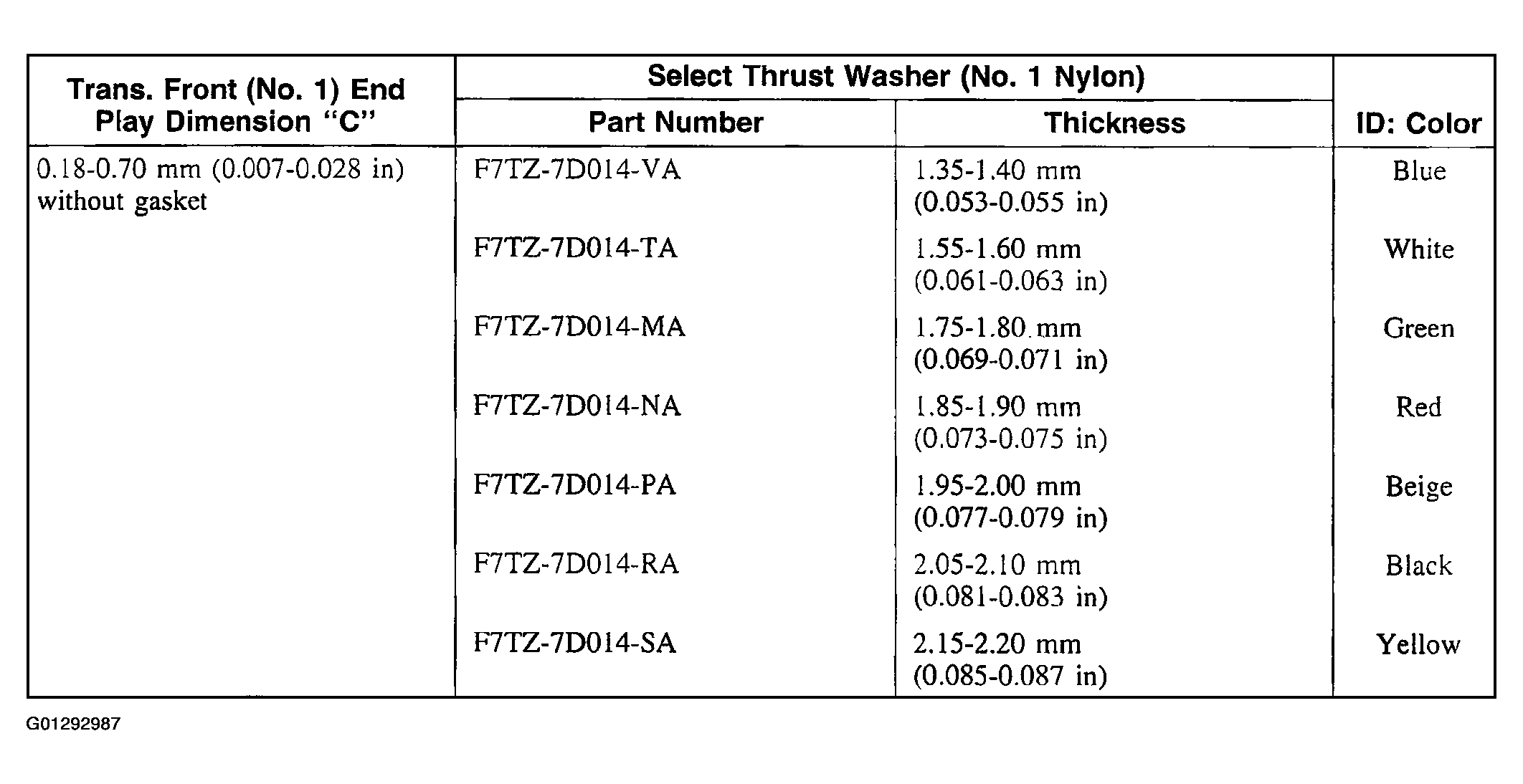

Fig 1: End Play Specifications Table (1 Of 2)
G01292987Courtesy of FORD MOTOR CO.

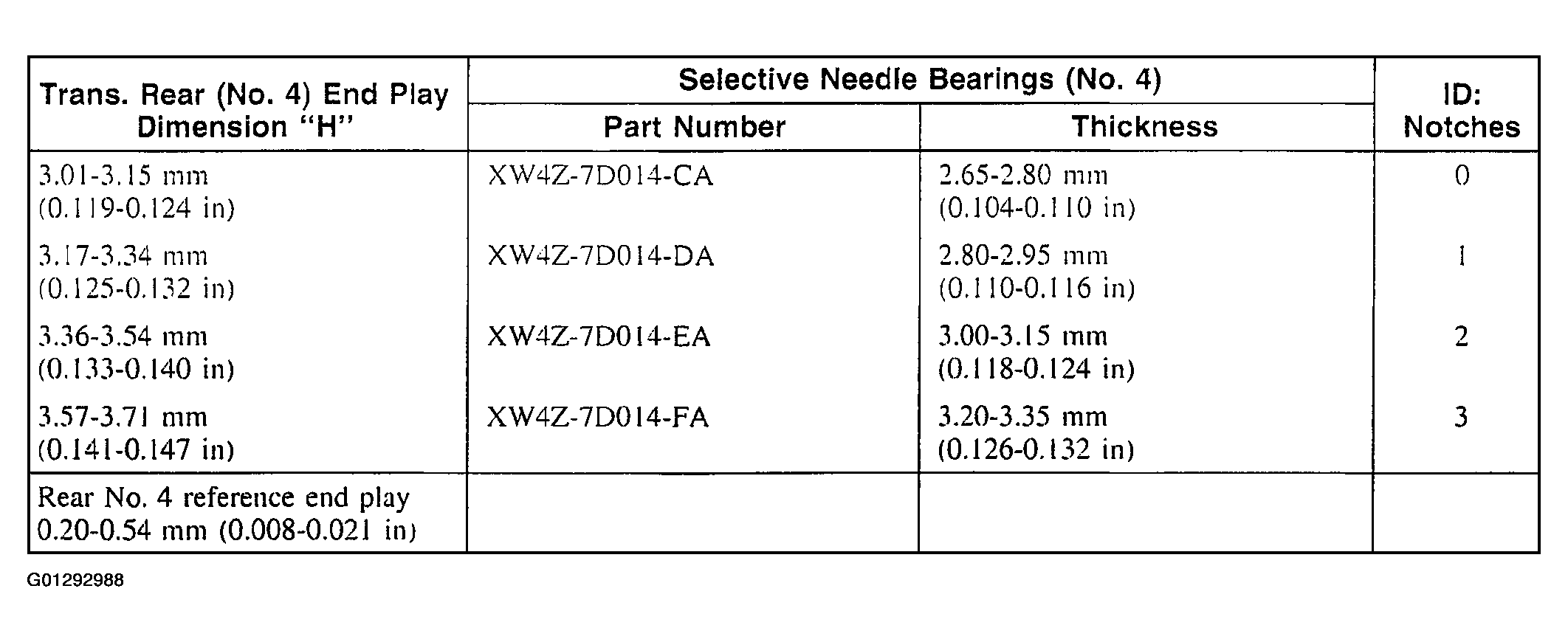

Fig 2: End Play Specifications Table (2 Of 2)
G01292988Courtesy of FORD MOTOR CO.
