Line Pressure Chart

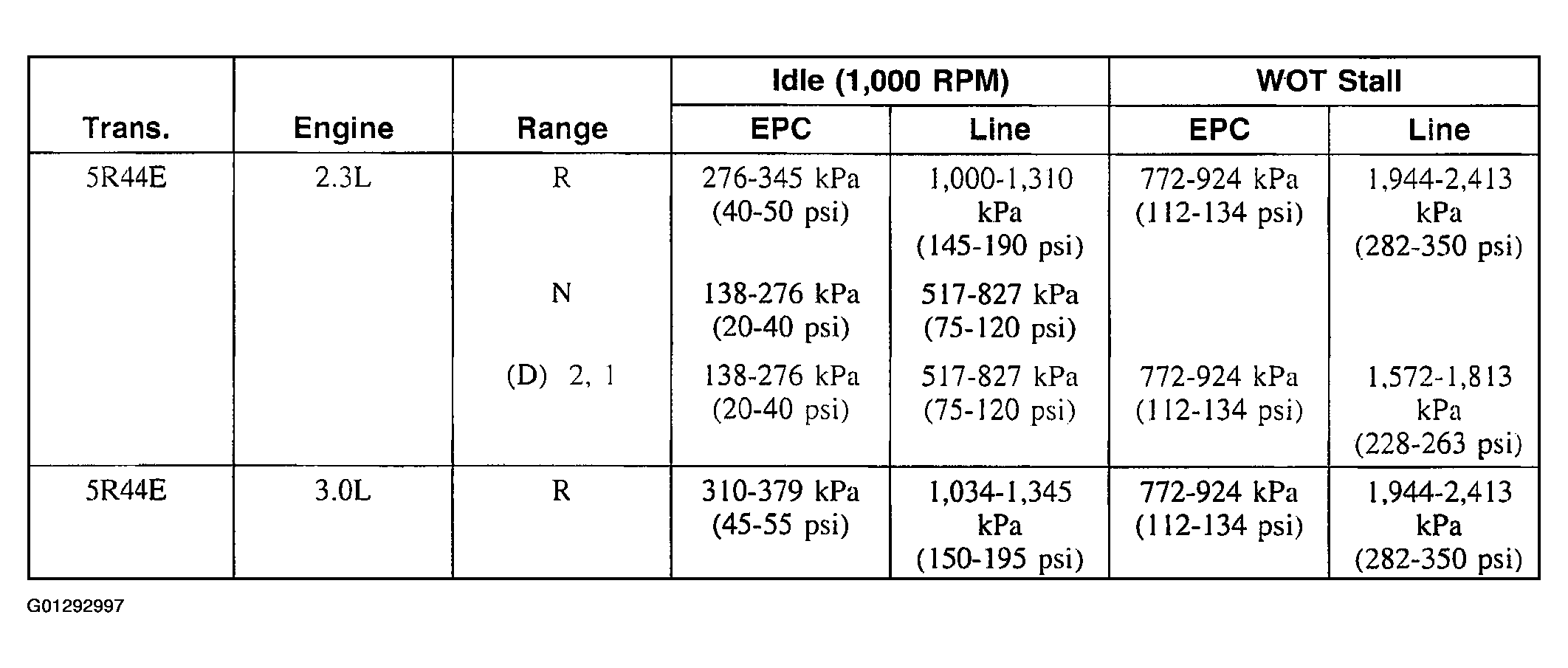

Fig 1: Line Pressure Chart (1 Of 2)
G01292997Courtesy of FORD MOTOR CO.

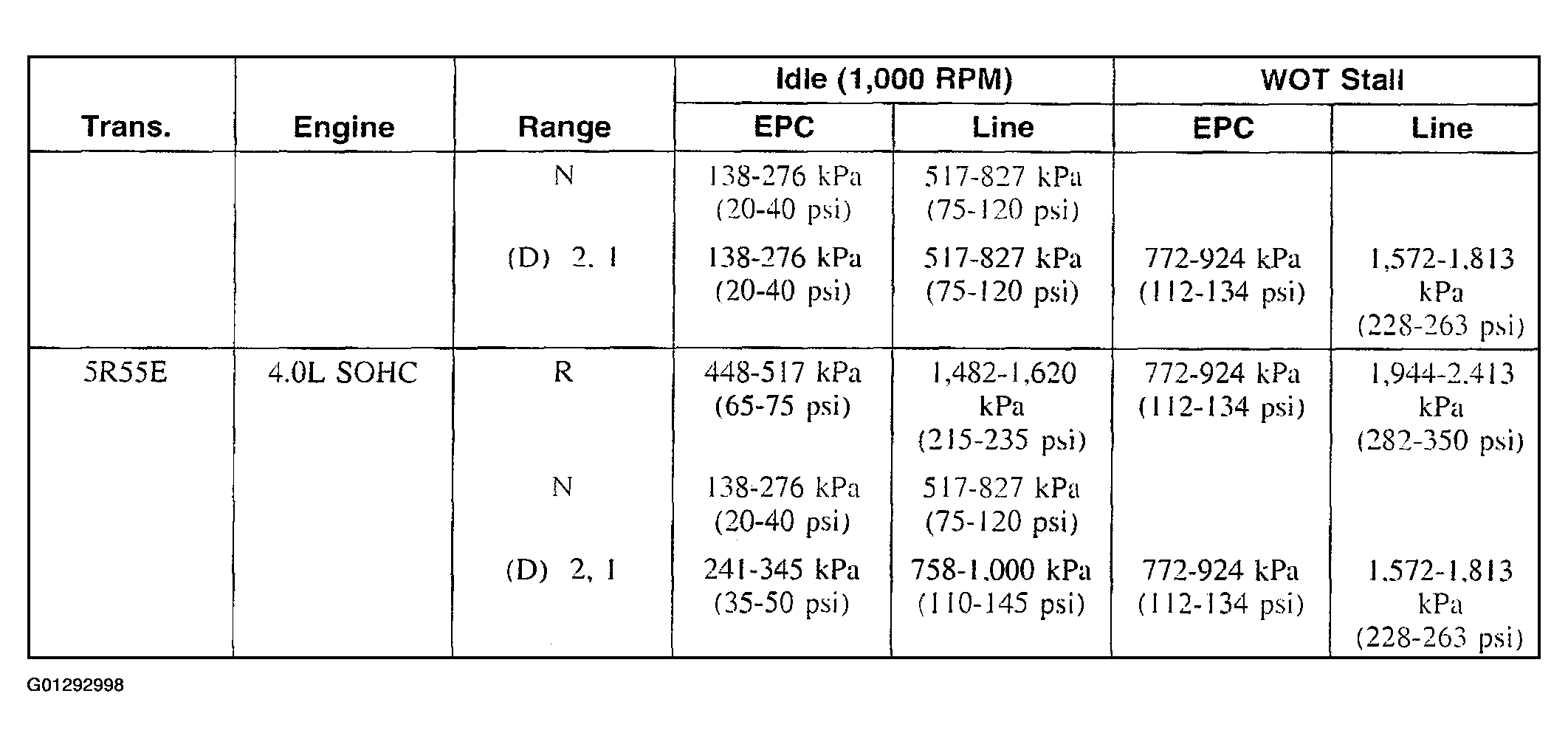

Fig 2: Line Pressure Chart (2 Of 2)
G01292998Courtesy of FORD MOTOR CO.
