Shift Speed

NOTE: Shift speed ranges are approximate for all applications.

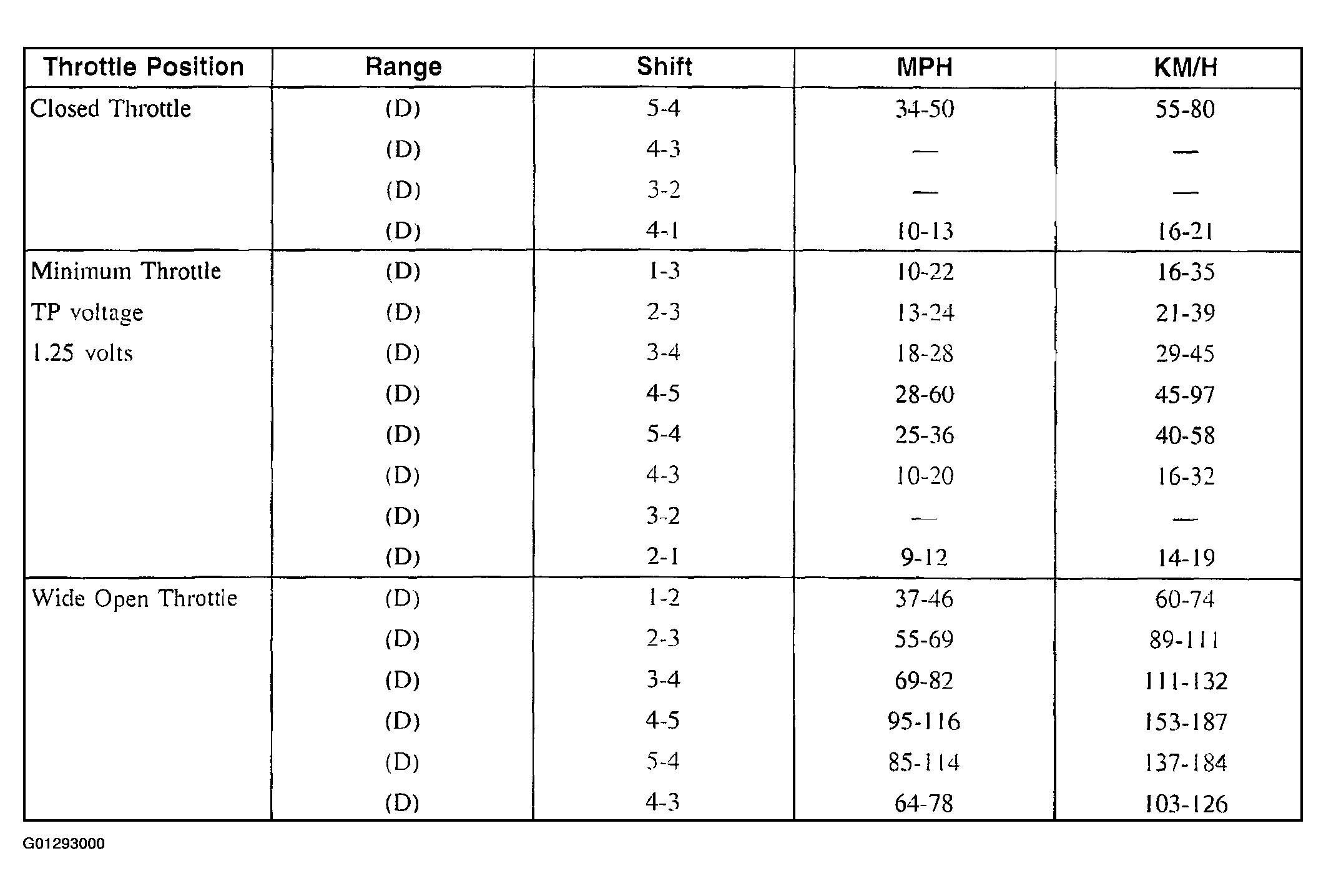

Fig 1: Shift Speed Table (1 Of 2)
G01293000Courtesy of FORD MOTOR CO.

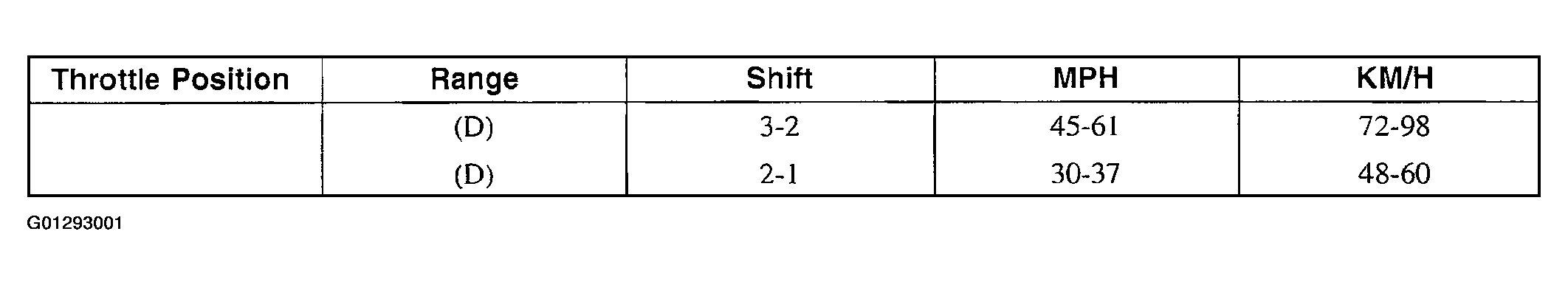

Fig 2: Shift Speed Table (2 Of 2)
G01293001Courtesy of FORD MOTOR CO.
