Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index
Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index

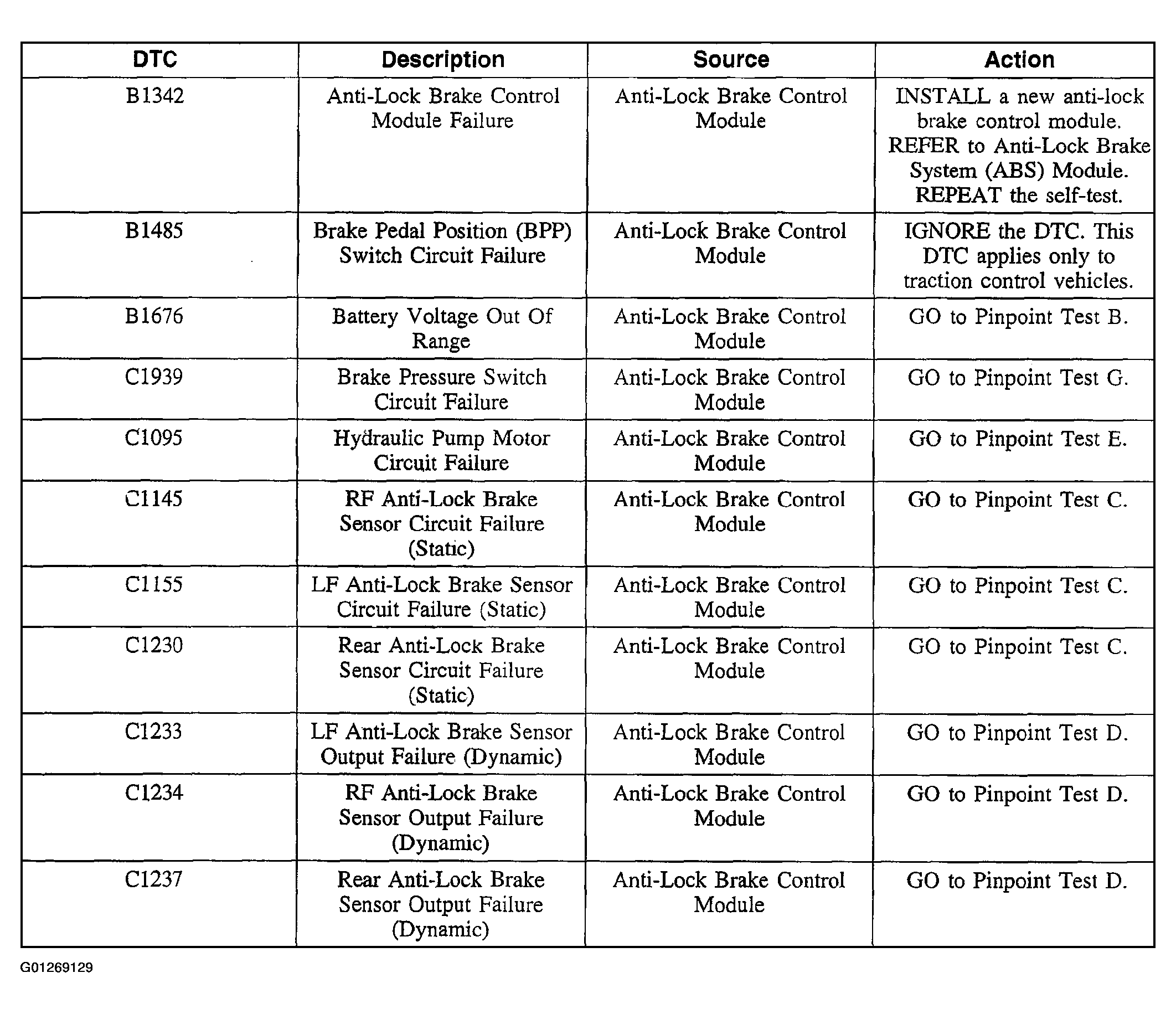

Fig 1: Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index Table
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
