Piston - Diameter

Measure the piston diameter 90 degrees from the piston pin at the point indicated.
- If out of specification, install new components as necessary.

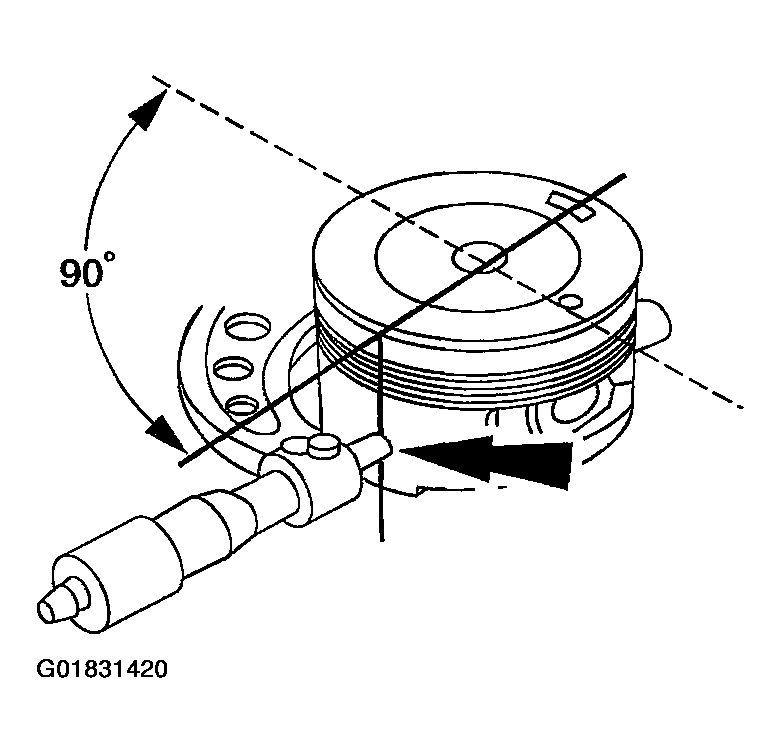

Fig 1: Measuring Piston Diameter
Courtesy of FORD MOTOR CO.
