MULTIFUNCTION Switch, Lamp Portion

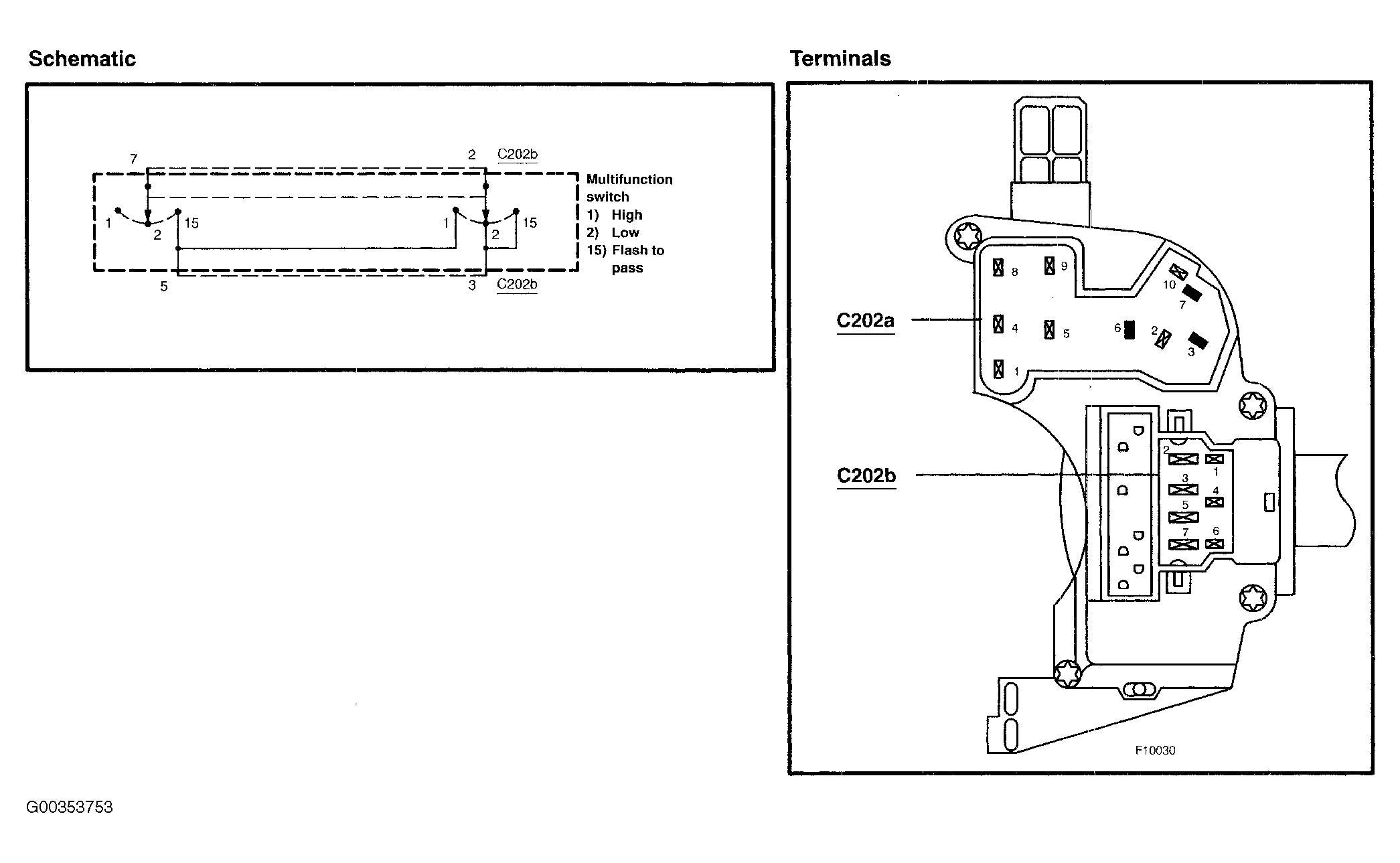

Fig 1: Testing Multifunction Switch, Lamp Portion (1 Of 2)
G00353753Courtesy of FORD MOTOR CO.

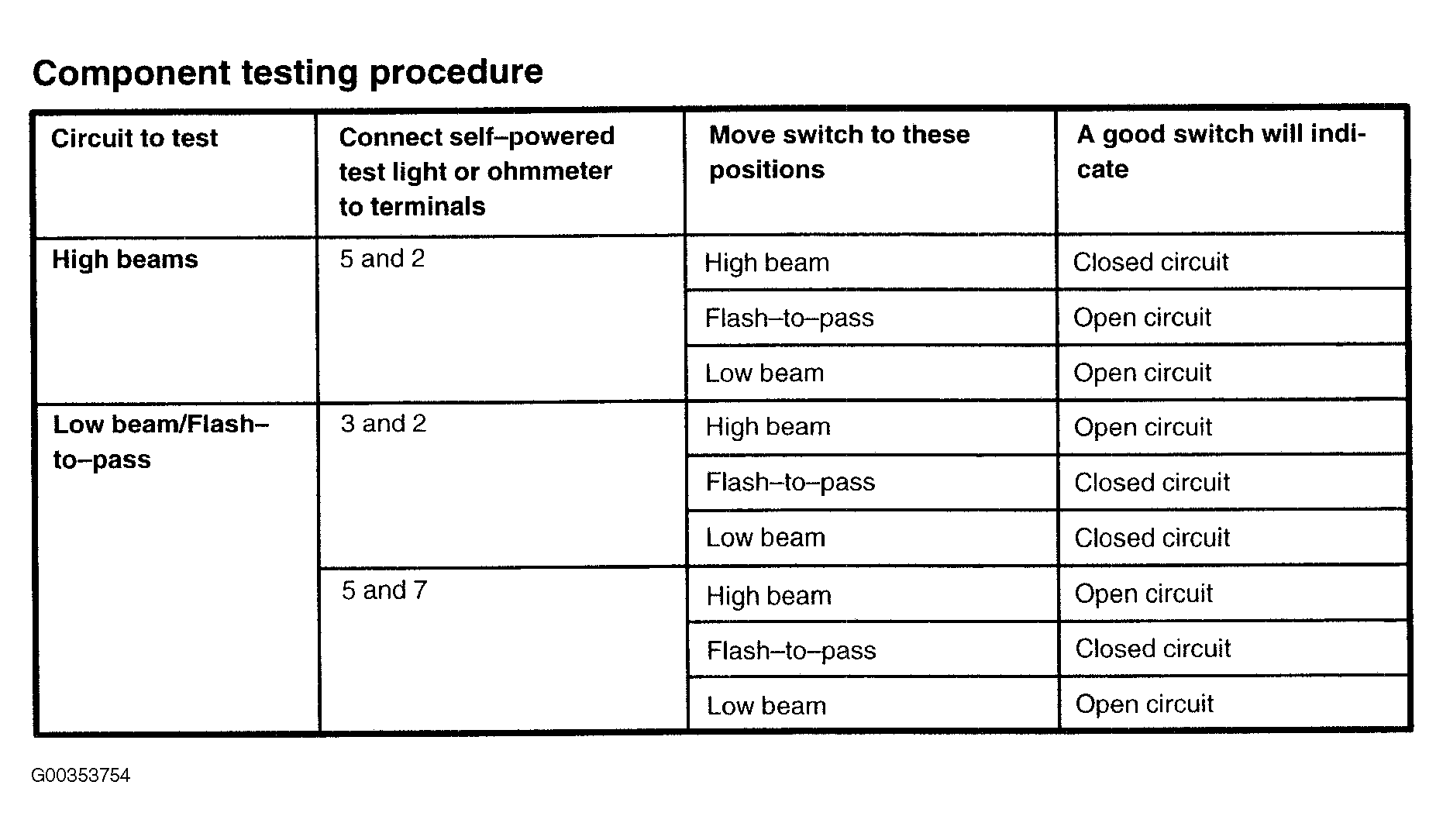

Fig 2: Testing Multifunction Switch, Lamp Portion (2 Of 2)
G00353754Courtesy of FORD MOTOR CO.
