Diagnosis And Testing: Engine: Notes

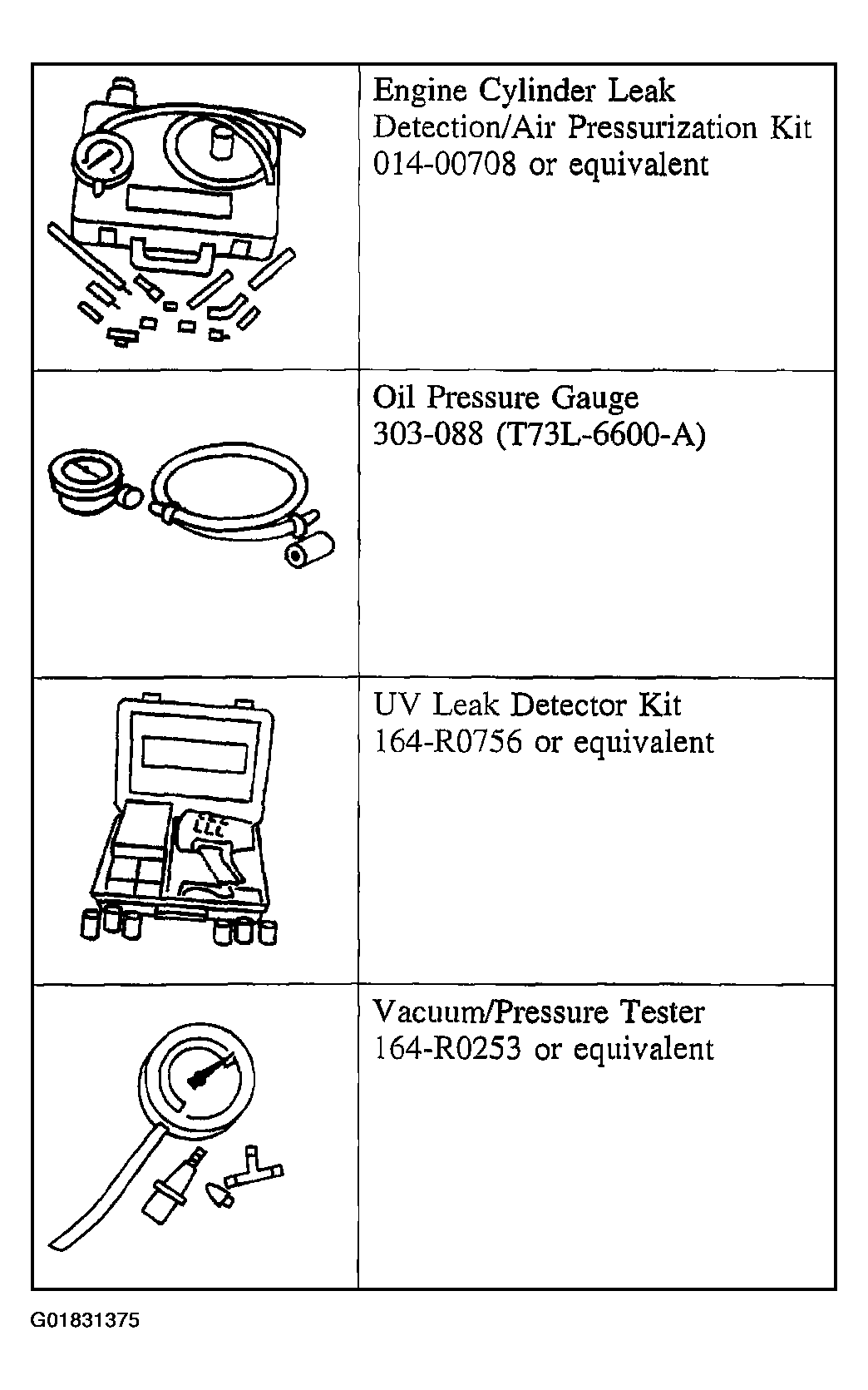

Fig 1: Identifying Special Tools (1 Of 3)

Courtesy of FORD MOTOR CO.

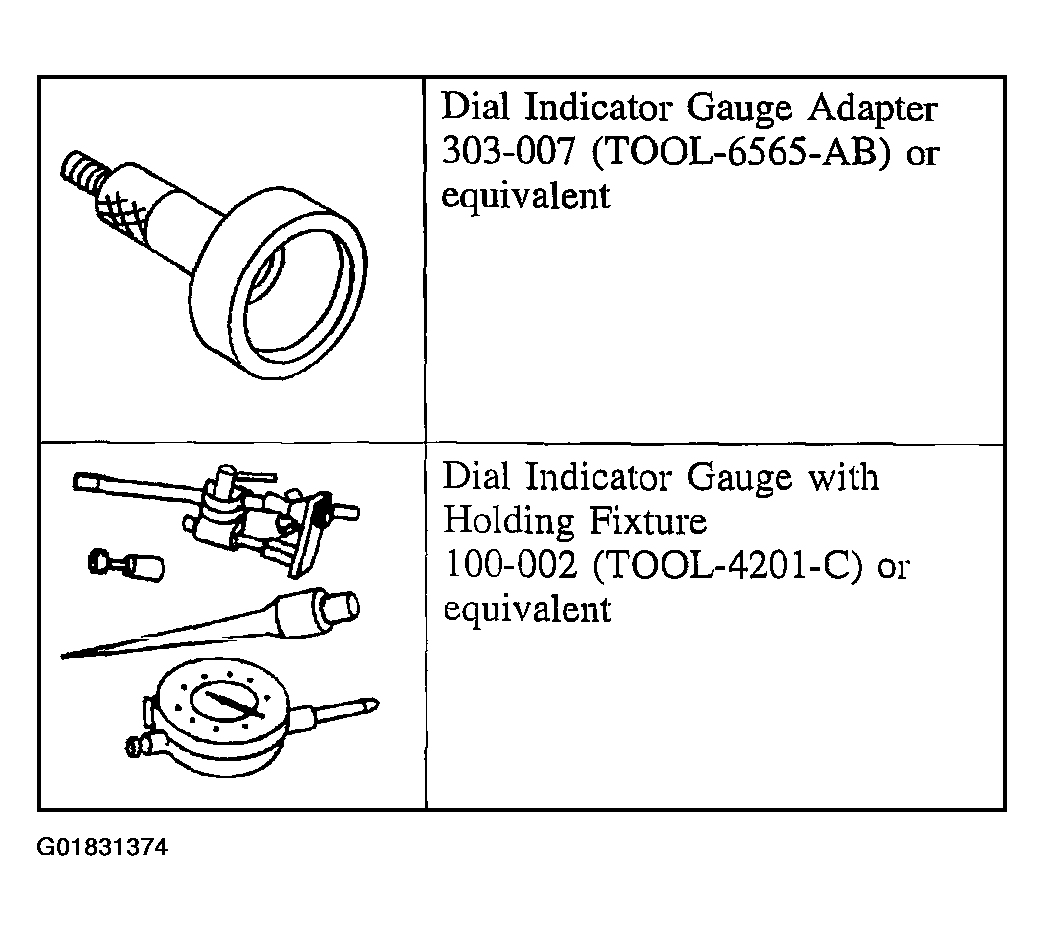

Fig 2: Identifying Special Tools (2 Of 3)

Courtesy of FORD MOTOR CO.

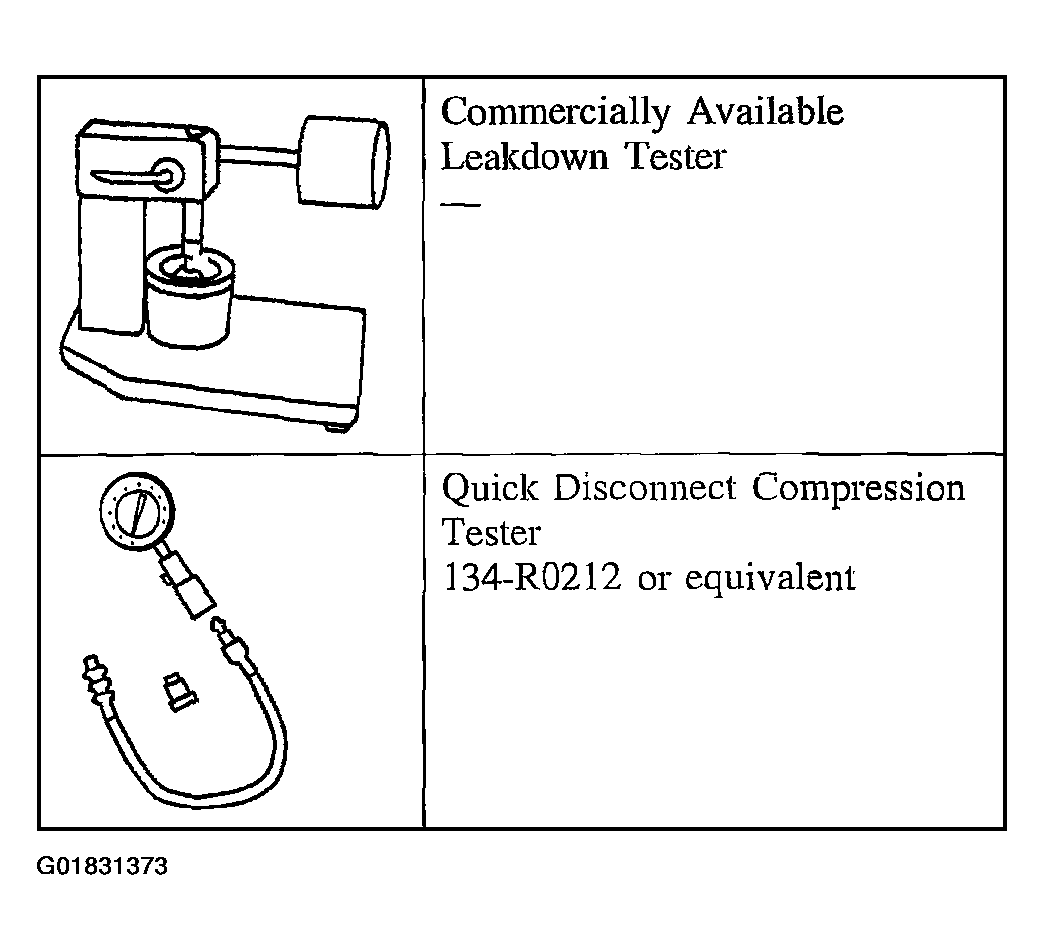

Fig 3: Identifying Special Tools (3 Of 3)

Courtesy of FORD MOTOR CO.

Some engines incorporate a fail-safe cooling system.

The engine, fuel system, ignition system, emissions system and exhaust system all affect exhaust emission levels and must be maintained according to the maintenance schedule.

Correct engine identification is required to order parts.

For complete vehicle and engine identification codes, refer to FORD MOTOR CO. - INTRODUCTION .

Fig 4: Materials

Courtesy of FORD MOTOR CO.
