FixVault
Home
›
Ford
›
2003
›
Ranger 2D Pickup, 4.0 E, 4WD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Component Testing
›
Component Testing
›
Master Window Adjust Switch
Master Window Adjust Switch

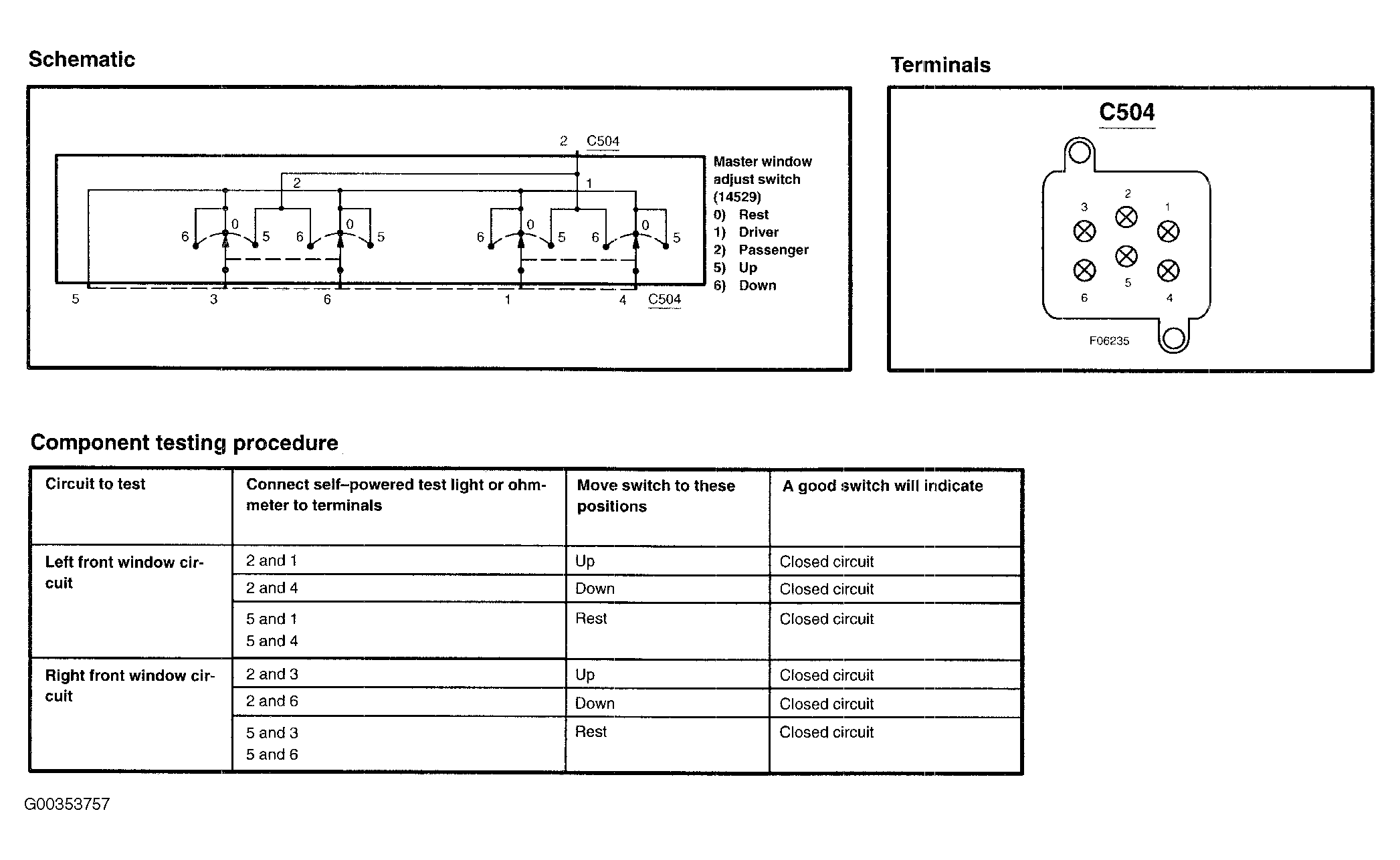

Fig 1: Testing Master Window Adjust Switch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
