Symptom Chart: Notes

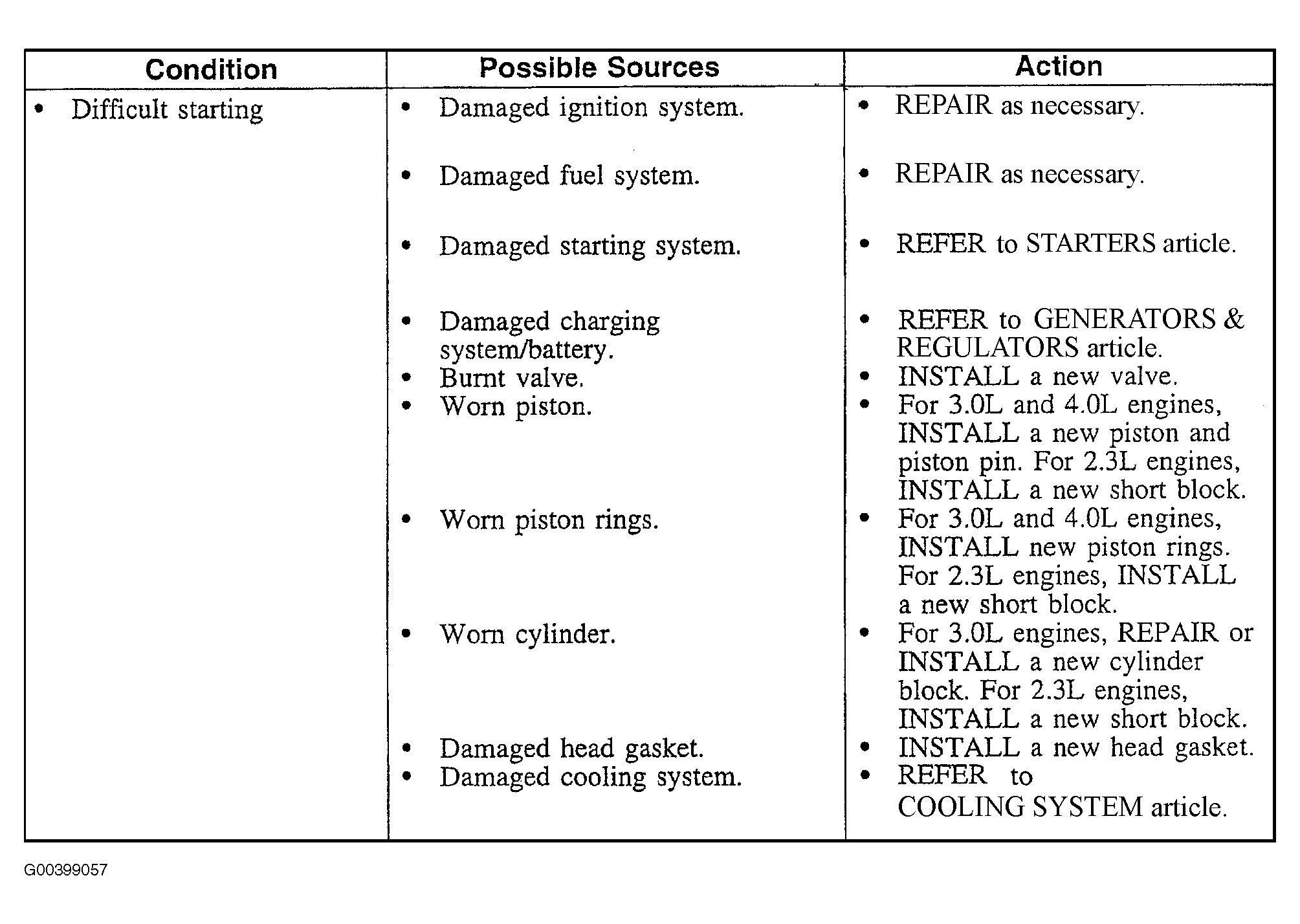

Fig 1: Symptom Chart (1 Of 6)

G00399057

Courtesy of FORD MOTOR CO.

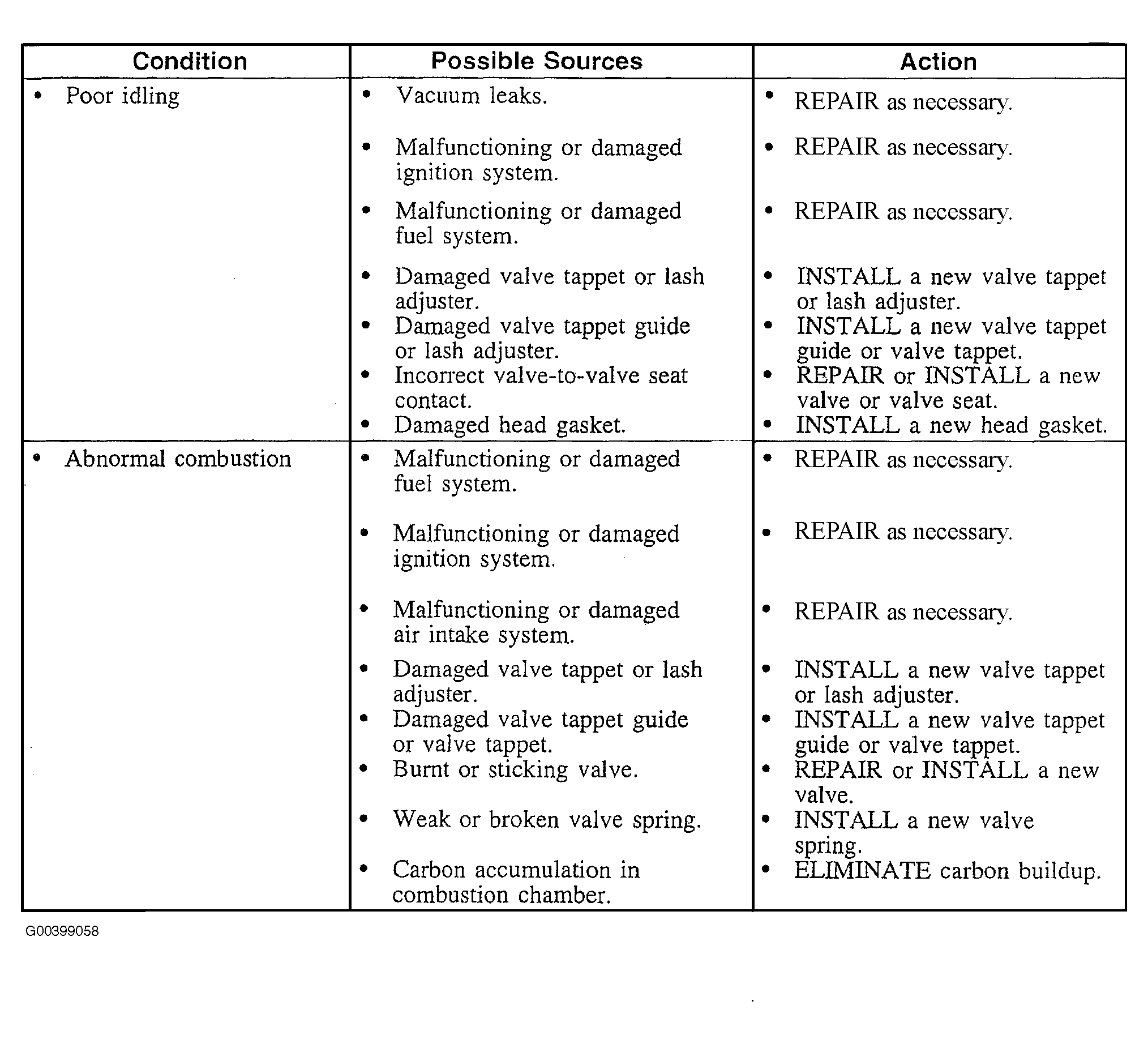

Fig 2: Symptom Chart (2 Of 6)

G00399058

Courtesy of FORD MOTOR CO.

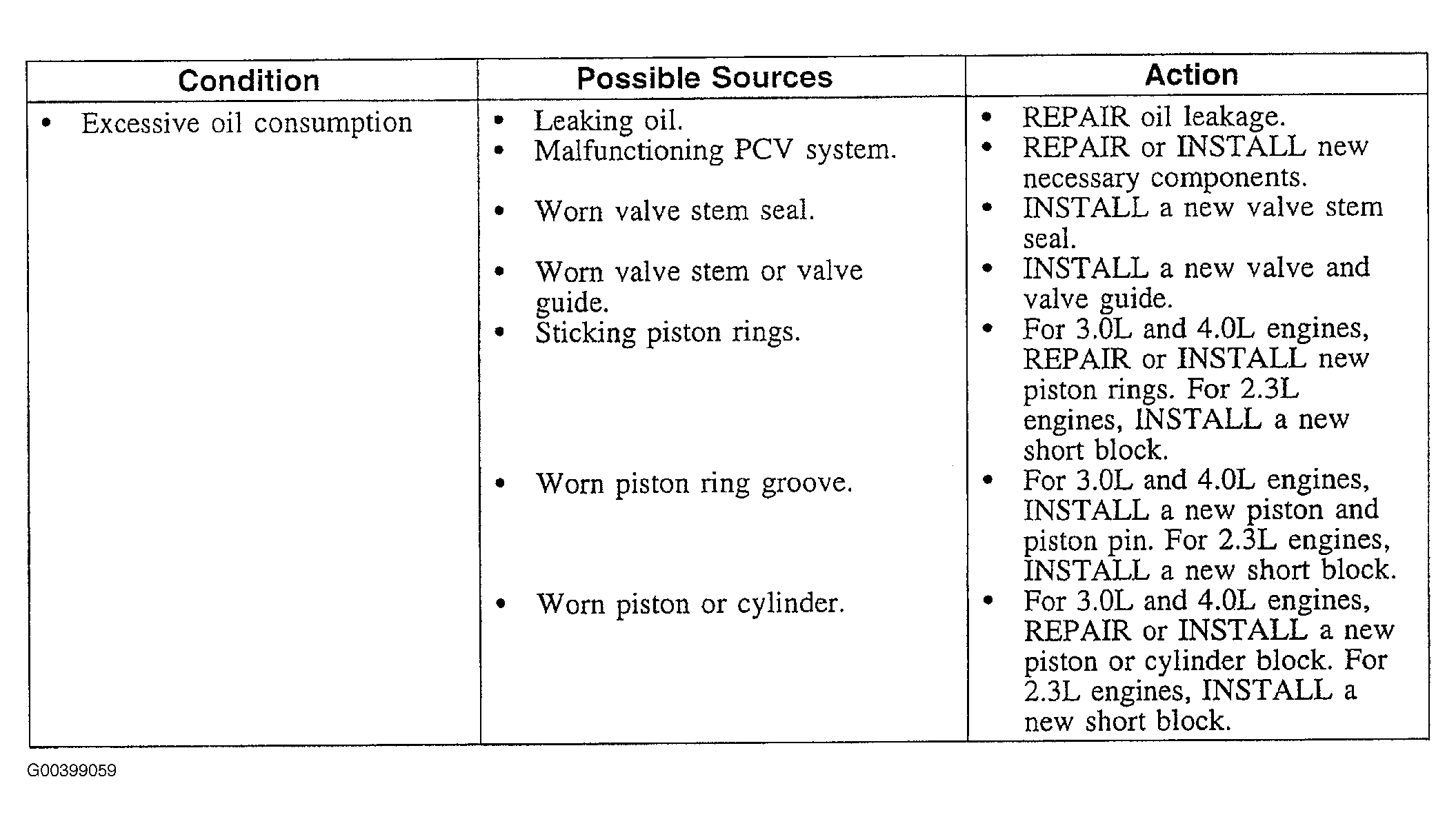

Fig 3: Symptom Chart (3 Of 6)

G00399059

Courtesy of FORD MOTOR CO.

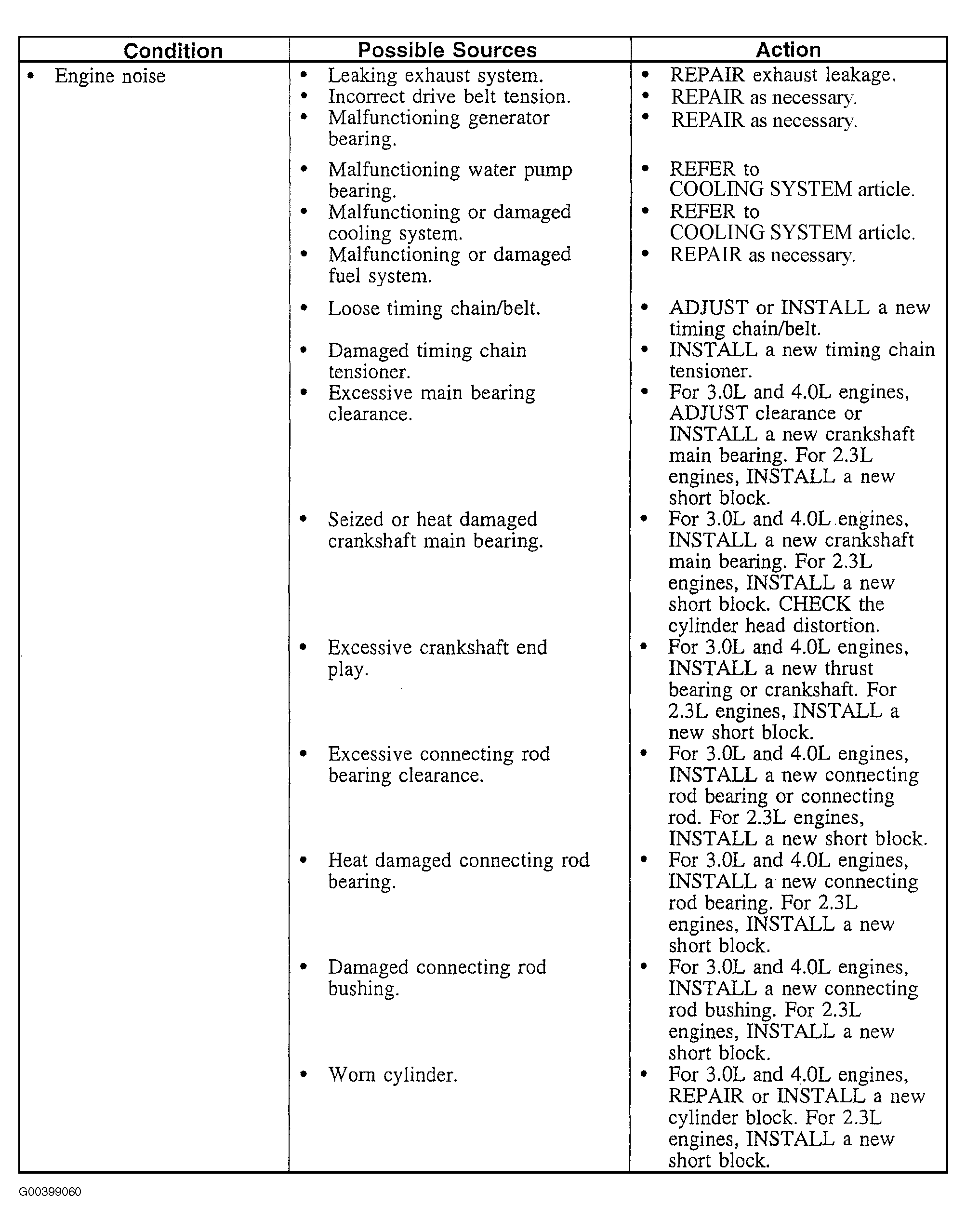

Fig 4: Symptom Chart (4 Of 6)

G00399060

Courtesy of FORD MOTOR CO.

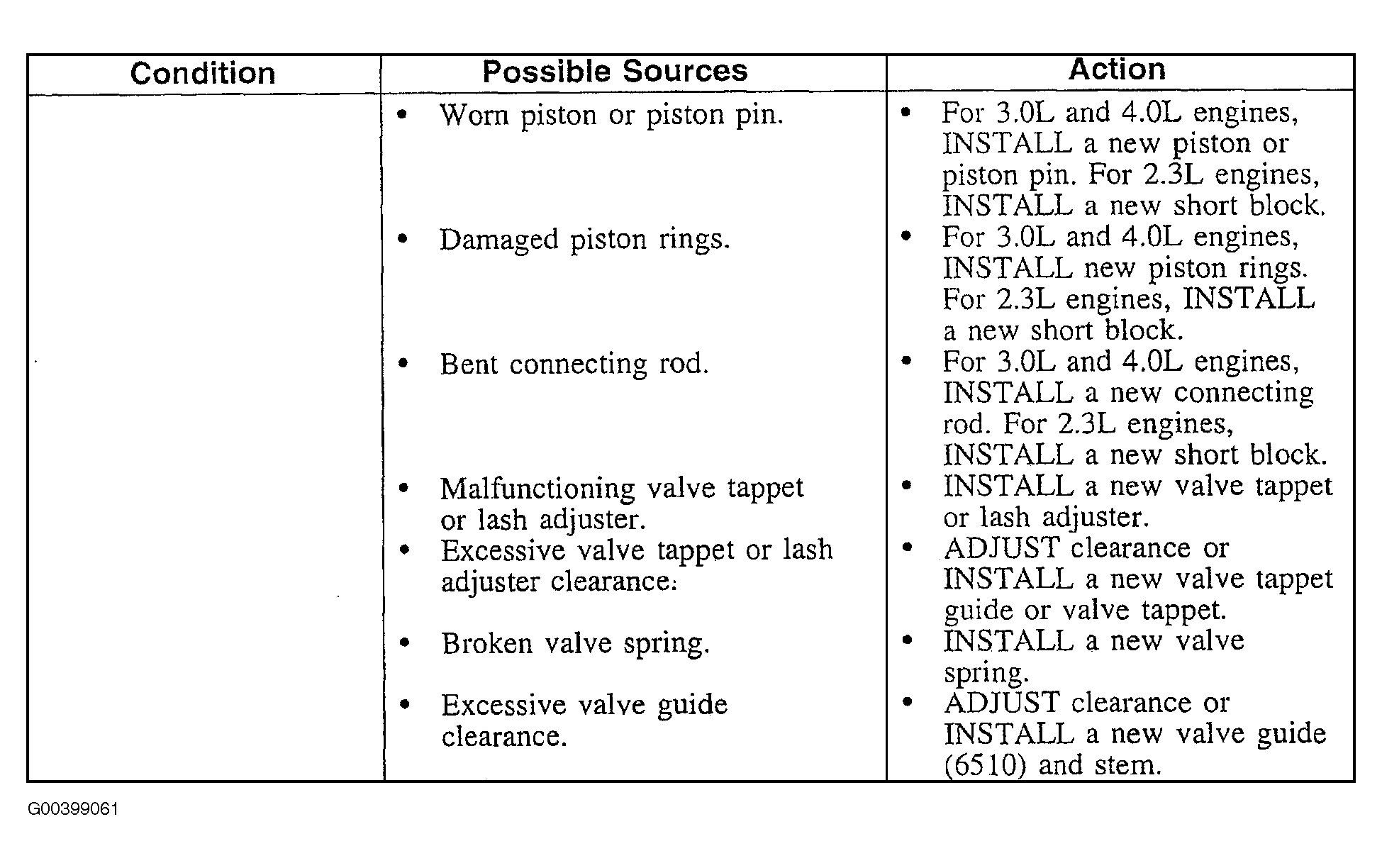

Fig 5: Symptom Chart (5 Of 6)

G00399061

Courtesy of FORD MOTOR CO.

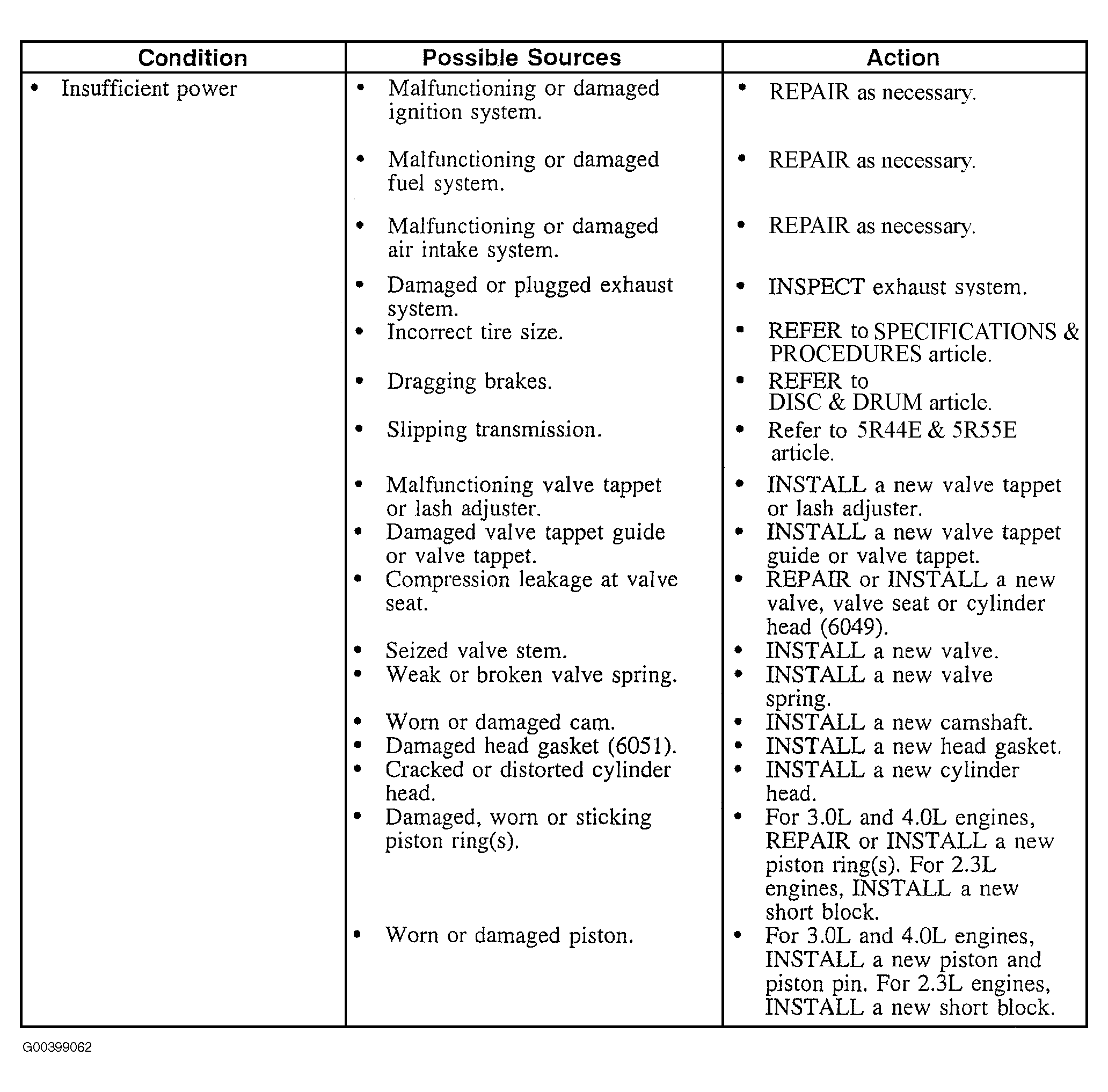

Fig 6: Symptom Chart (6 Of 6)

G00399062

Courtesy of FORD MOTOR CO.
