External Controls

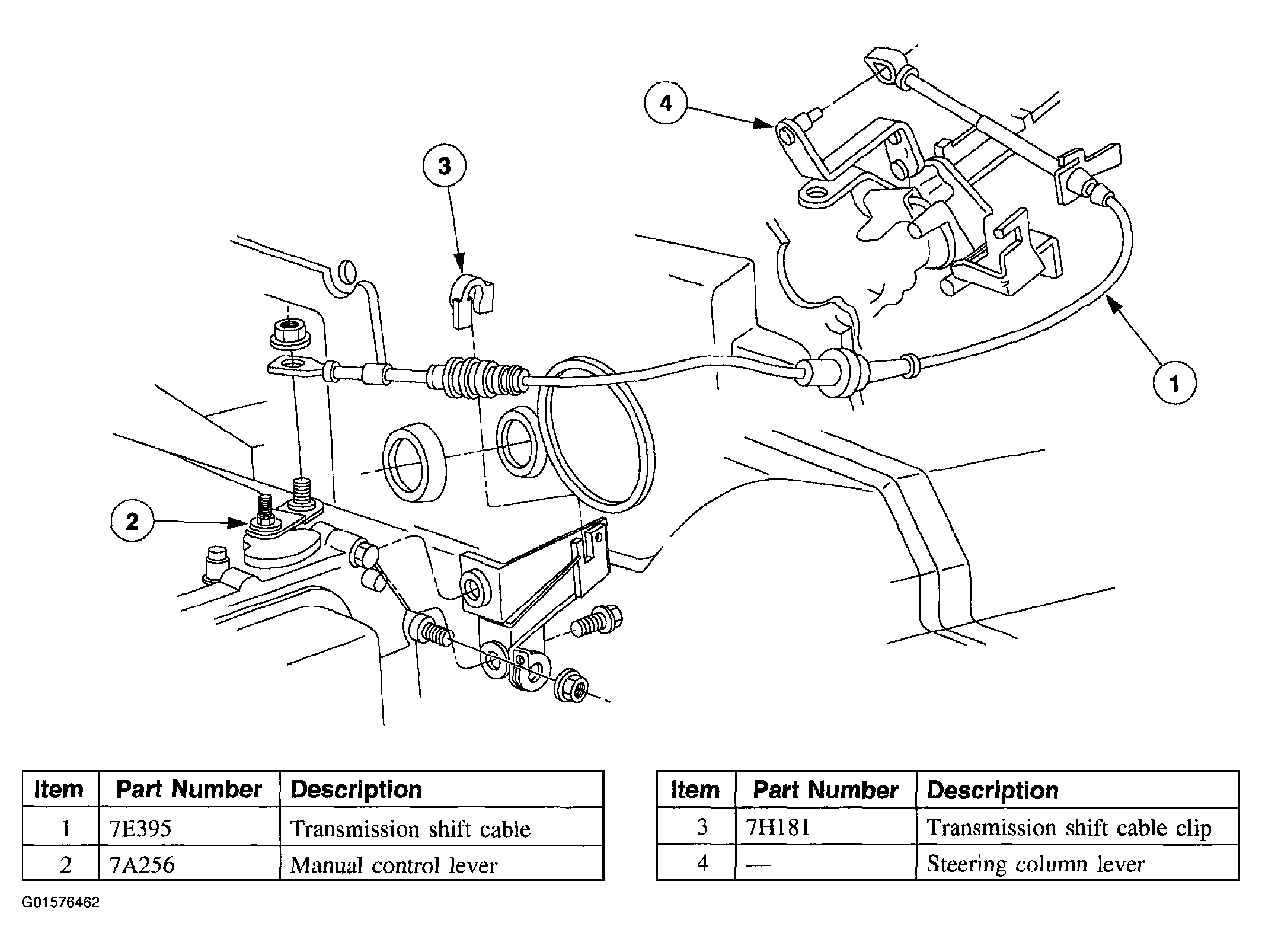

Fig 1: Identifying External Controls - Column Shift

Courtesy of FORD MOTOR CO.

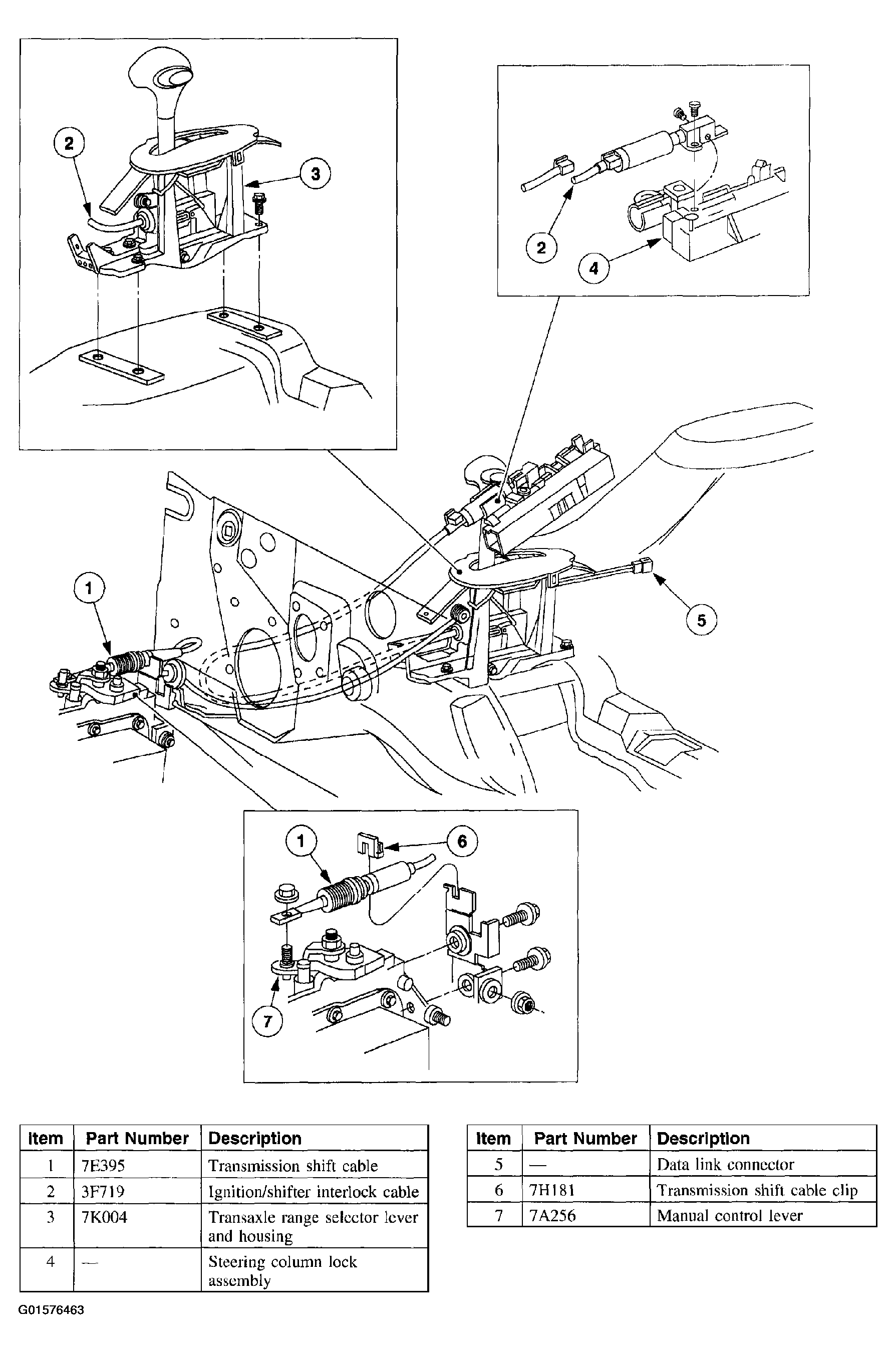

Fig 2: Identifying External Controls - Floor Shift

Courtesy of FORD MOTOR CO.

The transaxle shift control linkage consists of:

• a steering column or floor-mounted transaxle range selector lever.
• a shift cable connecting the steering column to the transaxle range selector lever.
• an ignition/shifter interlock cable on floor-shift vehicles which connects the transaxle range selector lever to the steering column lock assembly.
• an ignition/shift interlock actuator that is integral to the ignition/shift interlock cable.

The ignition/shifter interlock cable:

• locks the transaxle range selector lever in the PARK position when the ignition switch is in the LOCK position.
• requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the LOCK position.
