Removal and Installation

  1. Raise and support the vehicle.
  2. Disconnect the wiring.
    Fig 1: Disconnecting Wiring
    G01591683Courtesy of FORD MOTOR CO.
  3. Disengage wiring from the wiring clips.

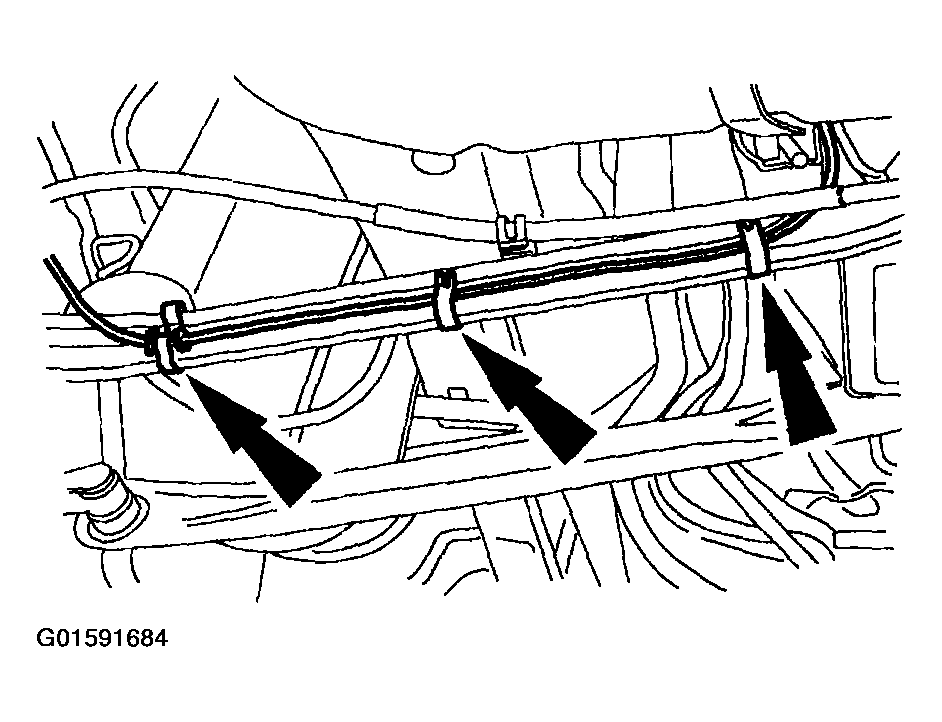

    Fig 2: Disengaging Wiring From Wiring Clips
    G01591684Courtesy of FORD MOTOR CO.
  4. Remove the bolt and the rear wheel speed sensor.

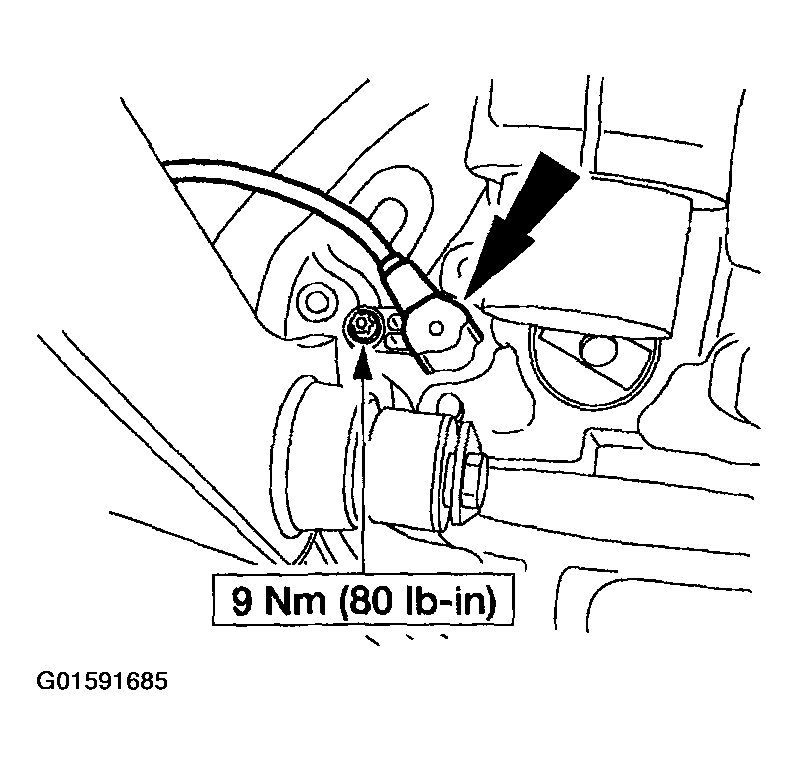

    Fig 3: Removing Bolt And Rear Wheel Speed Sensor
    G01591685Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
