Brake System-General Information
›
Diagnosis And Testing
›
Brake System
›
Symptom Chart
Symptom Chart

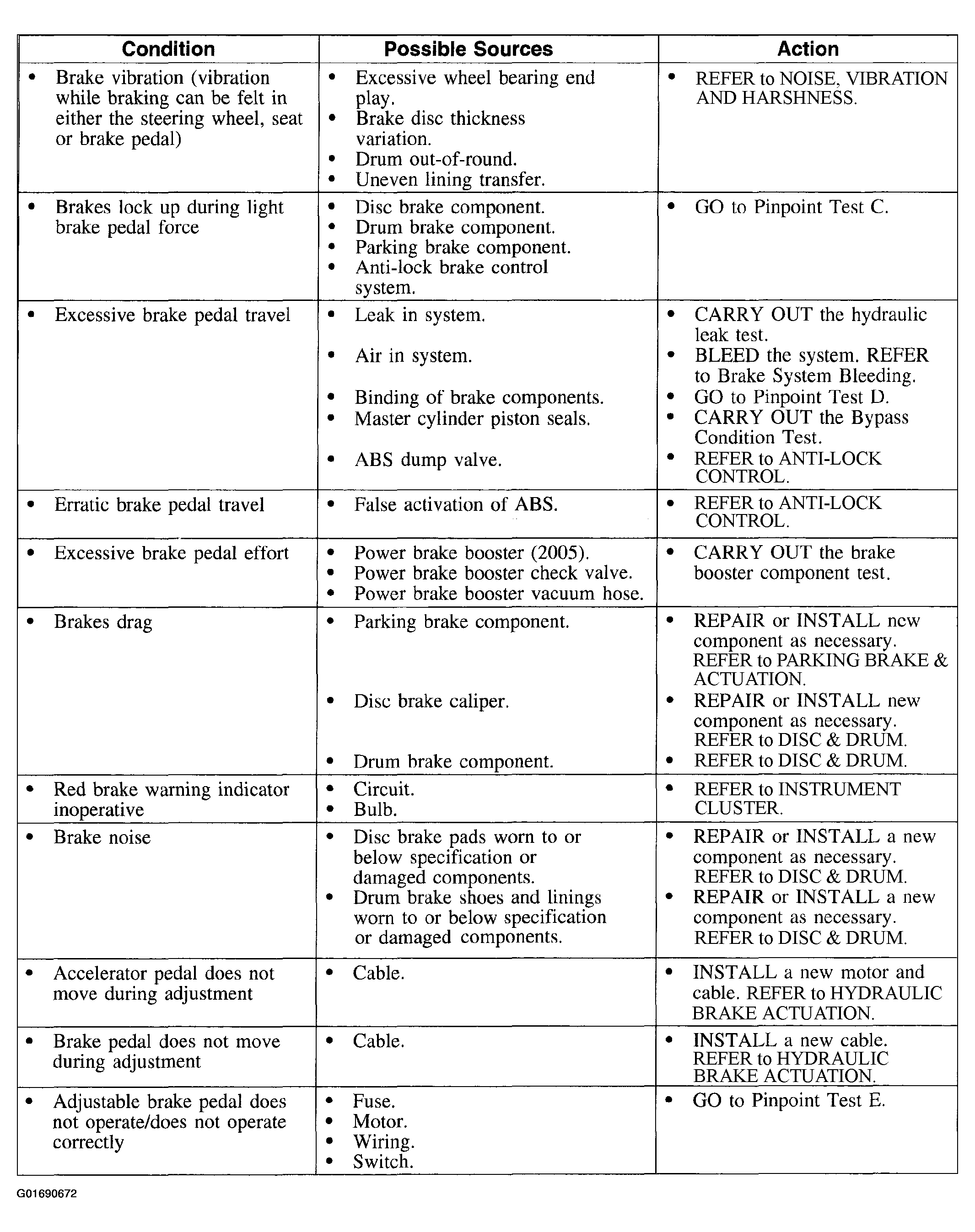

Fig 1: Brake System Problem Symptoms Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

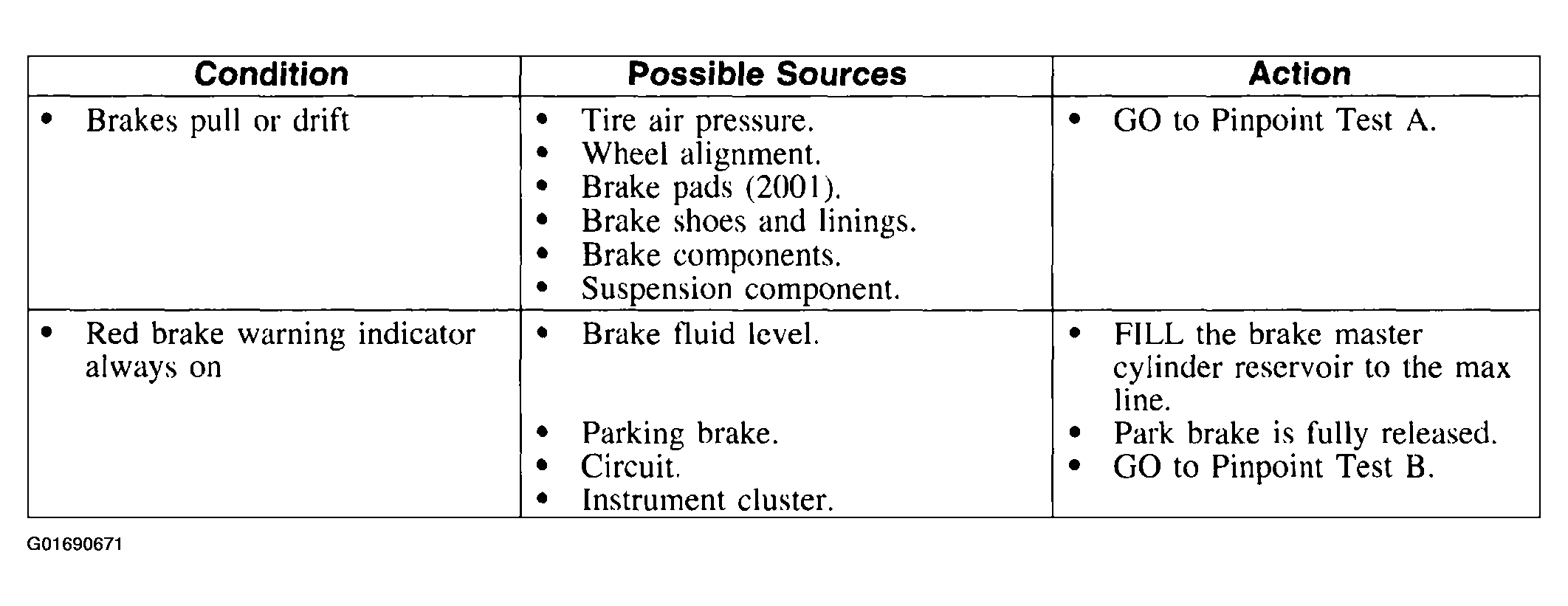

Fig 2: Brake System Problem Symptoms Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
