Symptom Chart

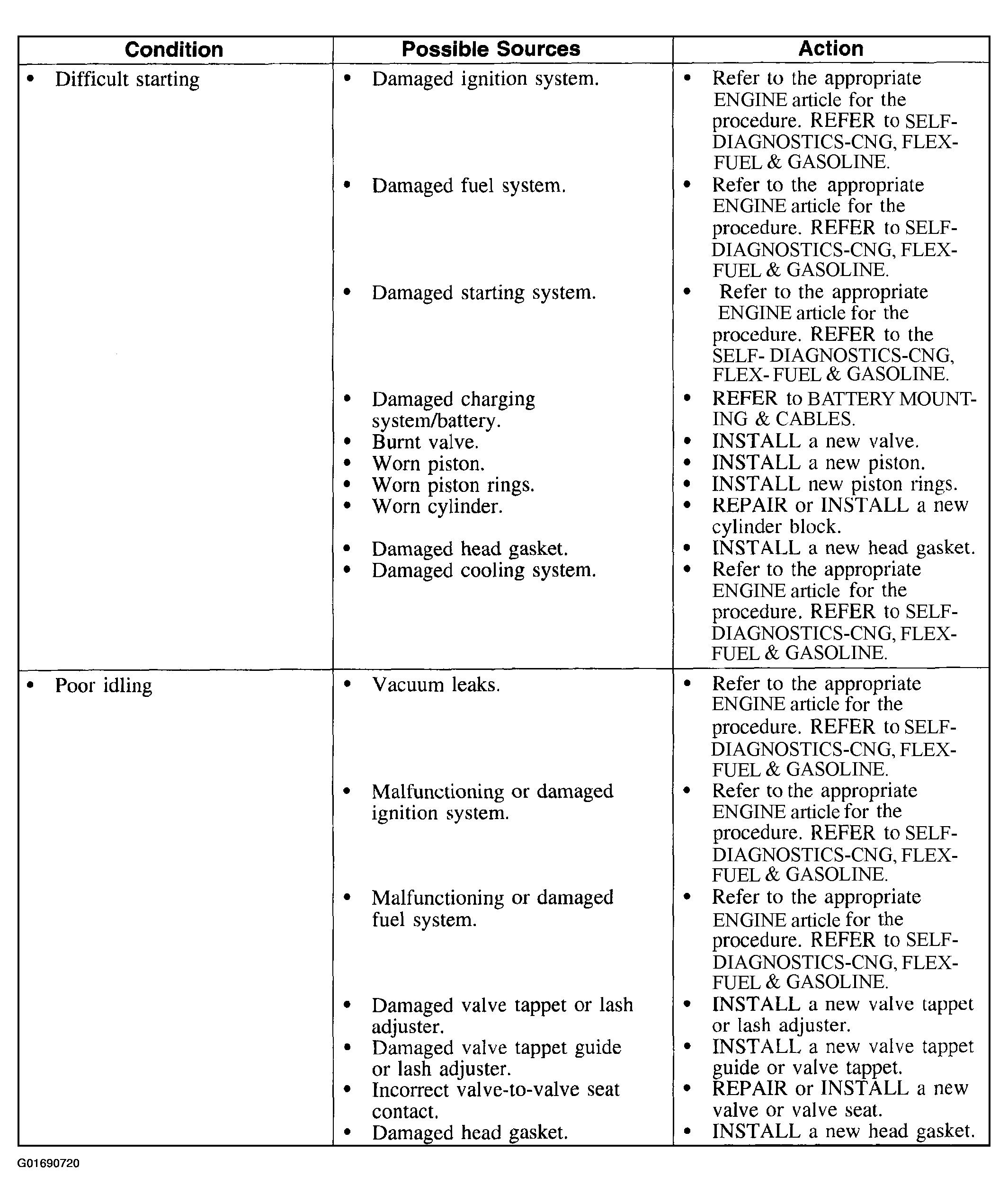

Fig 1: Symptom Chart (1 Of 4)
G01690720Courtesy of FORD MOTOR CO.

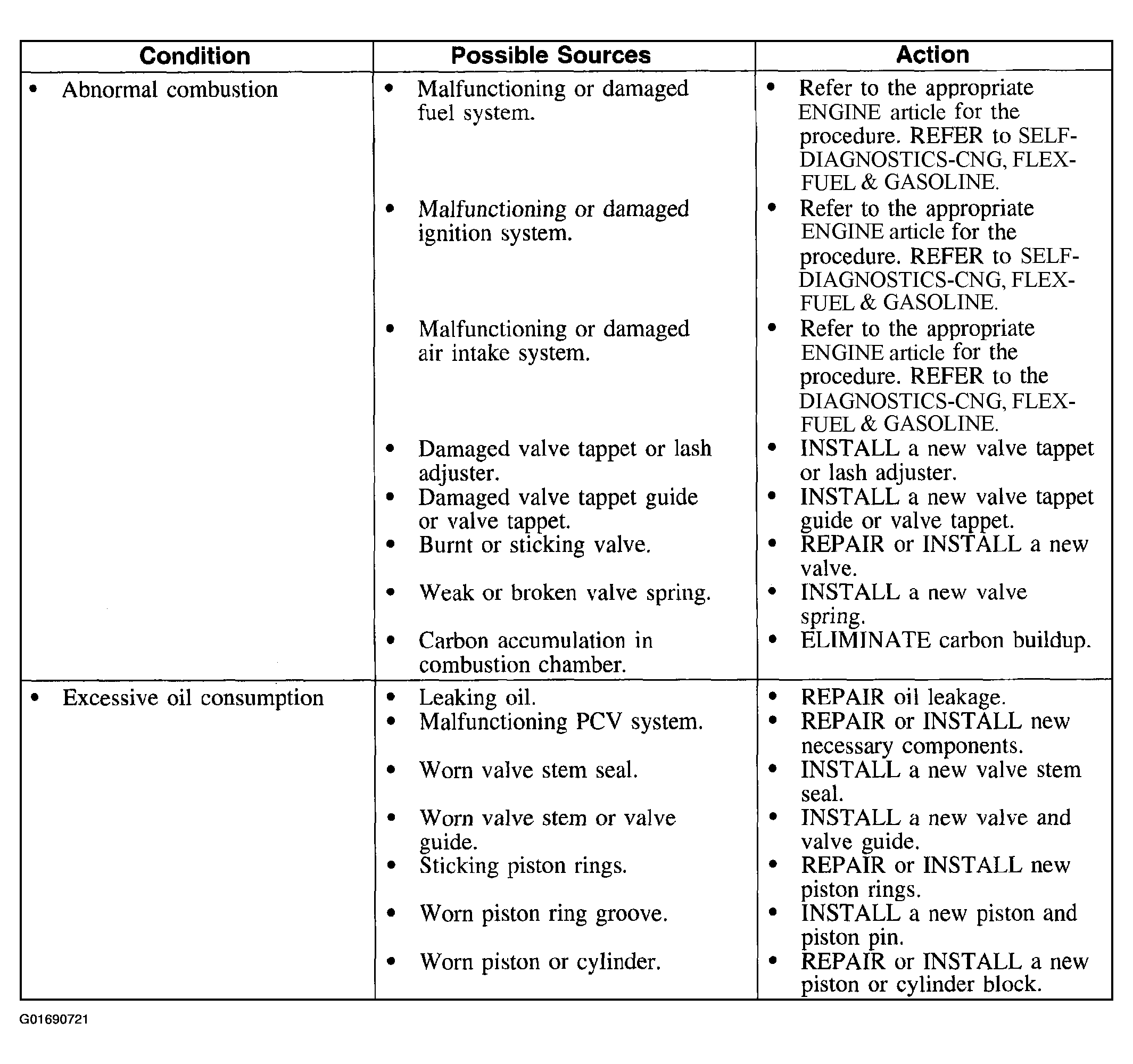

Fig 2: Symptom Chart (2 Of 4)
G01690721Courtesy of FORD MOTOR CO.

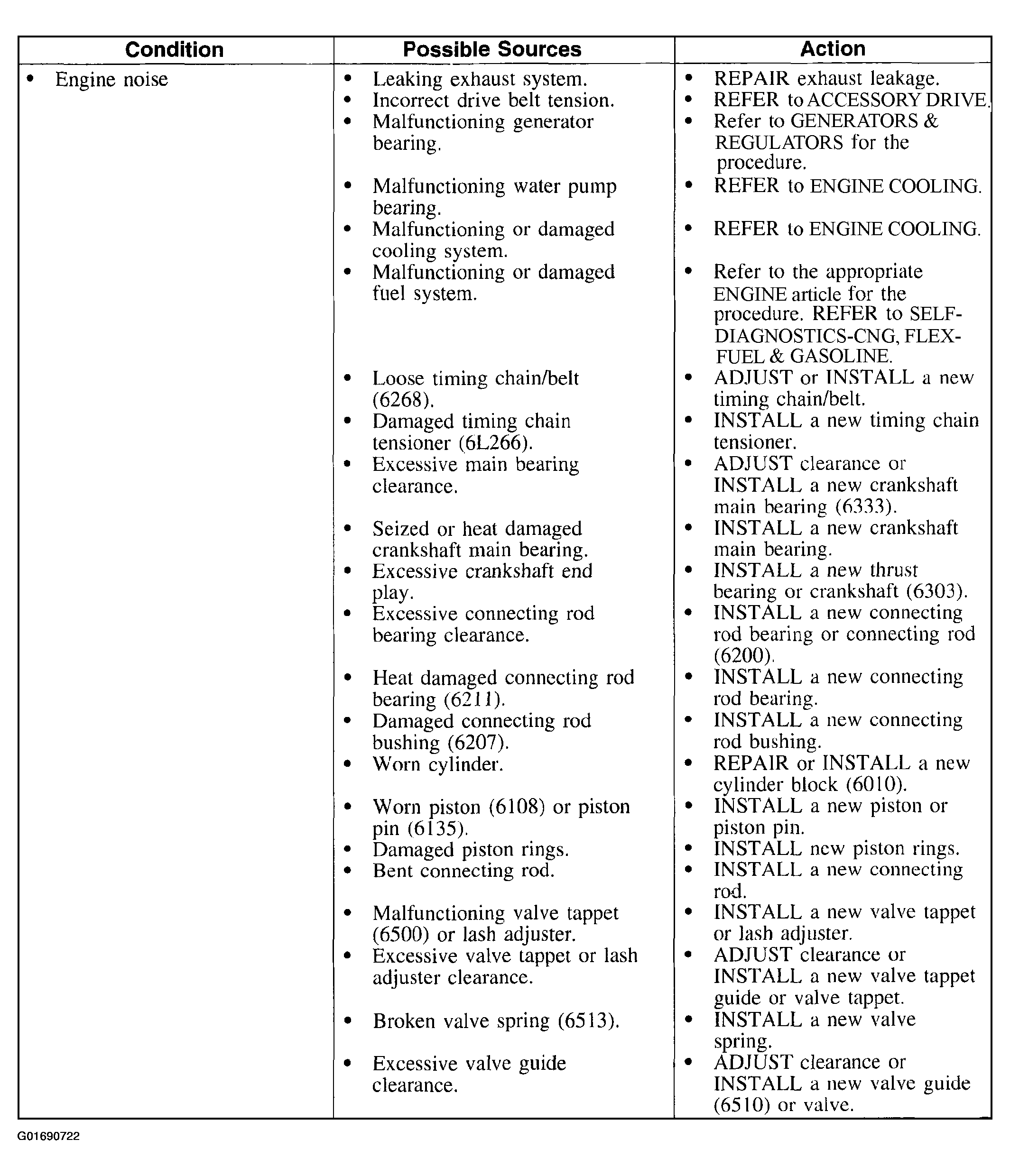

Fig 3: Symptom Chart (3 Of 4)
G01690722Courtesy of FORD MOTOR CO.

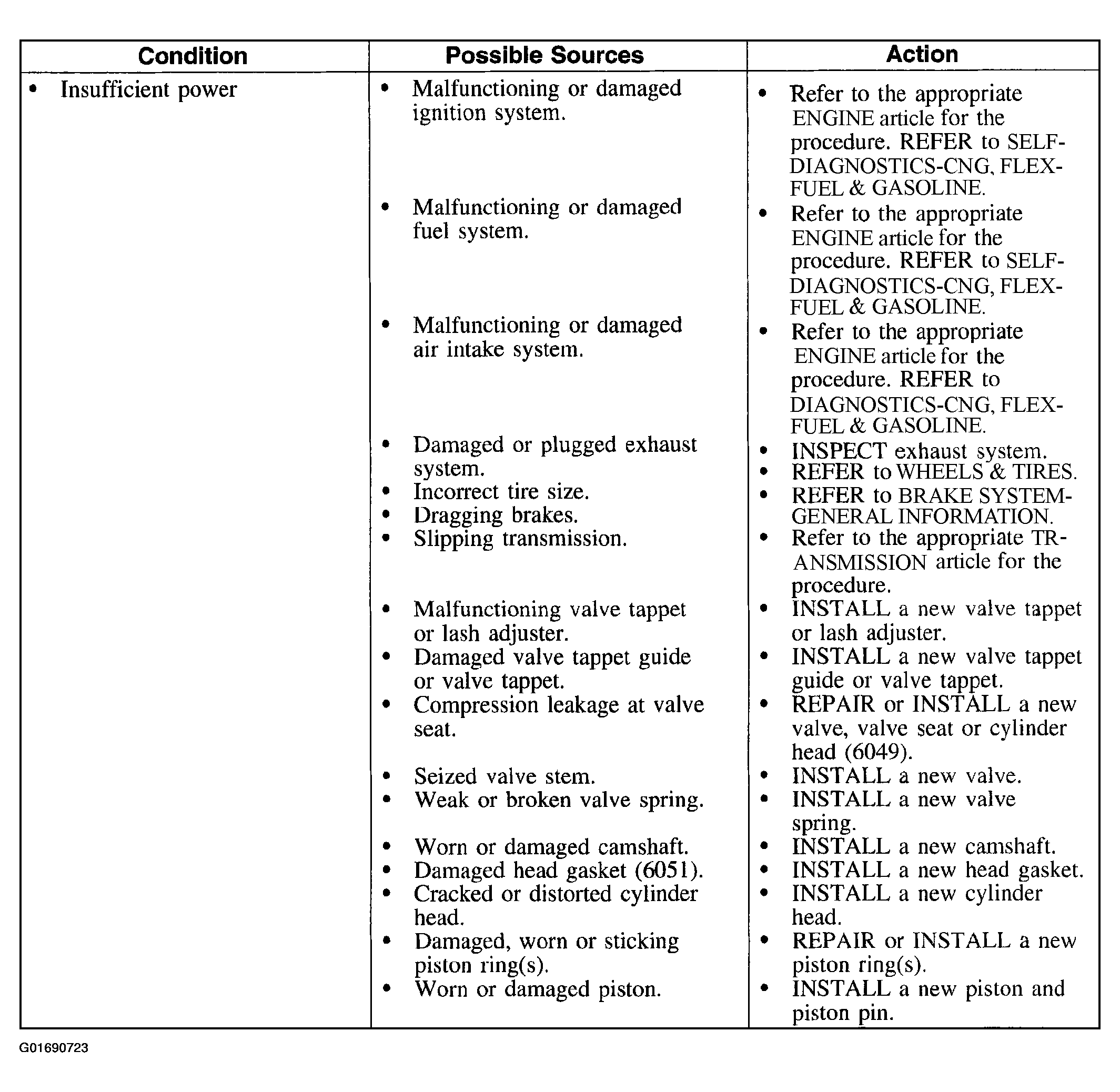

Fig 4: Symptom Chart (4 Of 4)
G01690723Courtesy of FORD MOTOR CO.
