FixVault
Home
›
Ford
›
2003
›
Taurus SES, 3.0 2, AX4S
›
Repair and Diagnosis
›
Steering
›
Power Steering
›
Power Steering System
›
Specifications
›
Torque Specifications
Torque Specifications

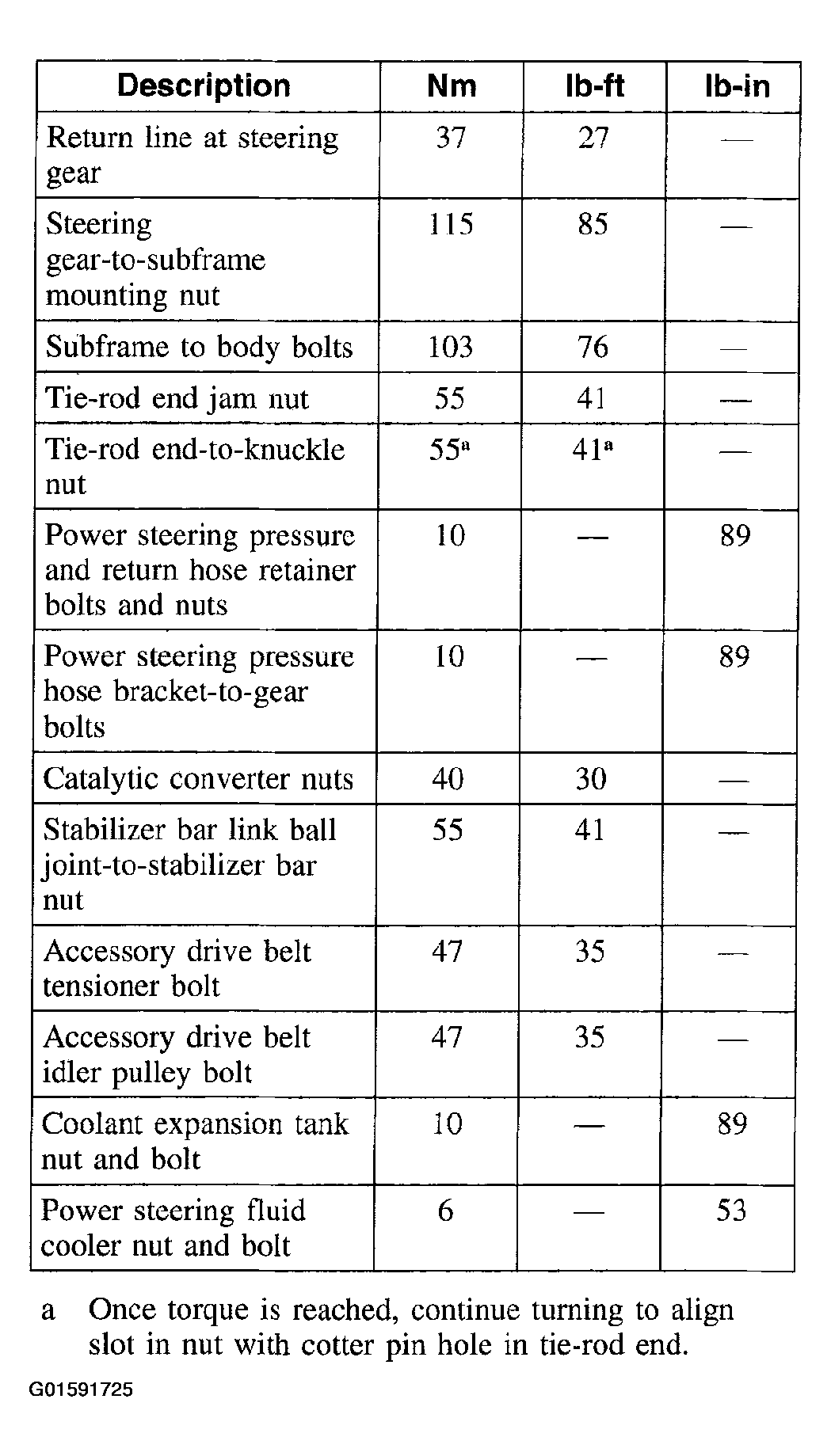

Fig 1: Power Steering Torque Specifications Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

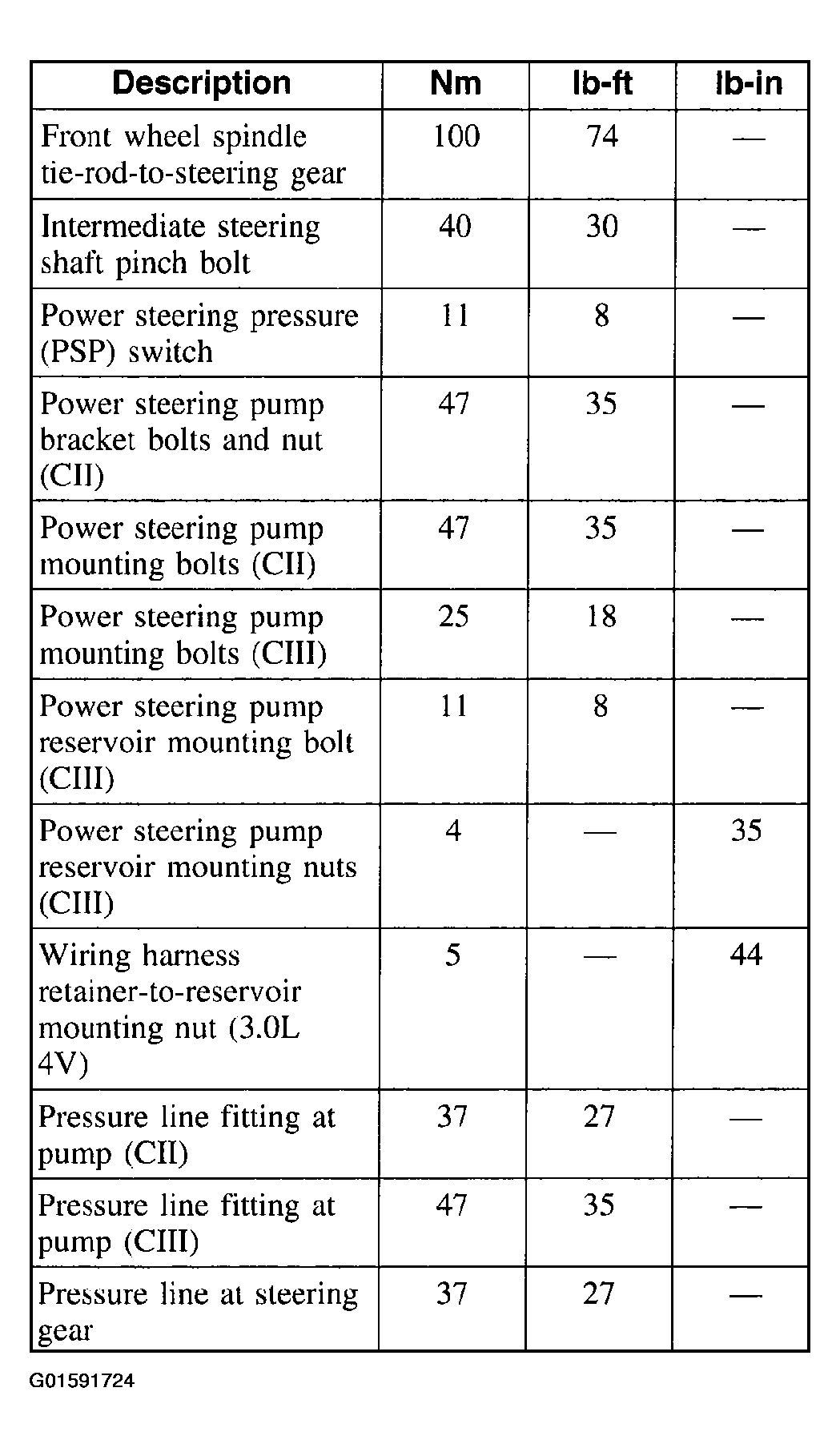

Fig 2: Power Steering Torque Specifications Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
