Automatic Transmission - Ax4S
›
Description And Operation
›
Main Components And Functions
Main Components And Functions

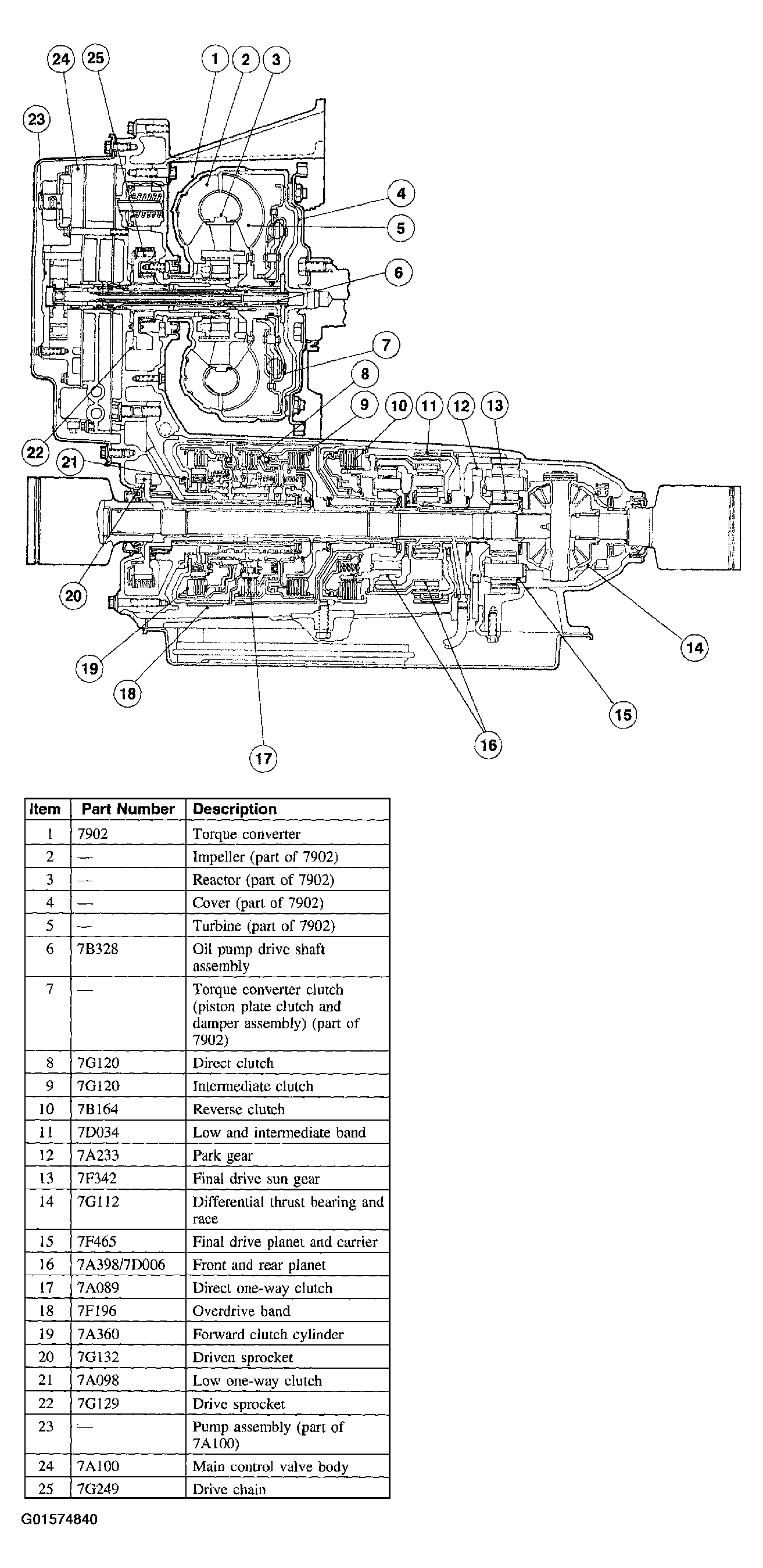

Fig 1: Identifying Main Components And Functions
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
