Chain Cover: Assembly

  1. Install the manual valve detent spring.

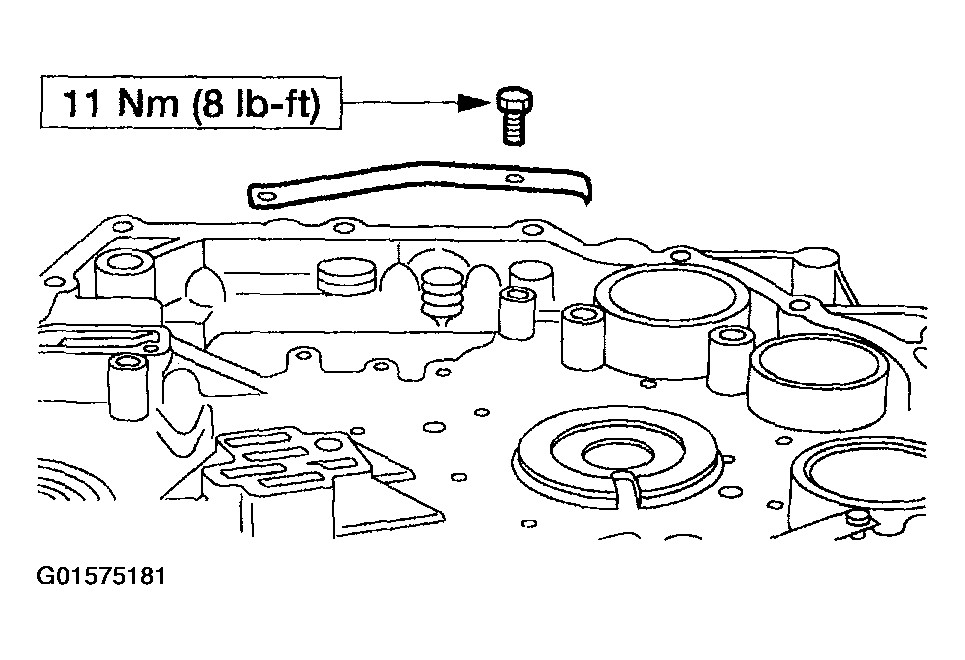

    Fig 1: Installing Manual Valve Detent Spring
    G01575181Courtesy of FORD MOTOR CO.
  2. Measure the distance that the center bimetal element pin protrudes from the chain cover.

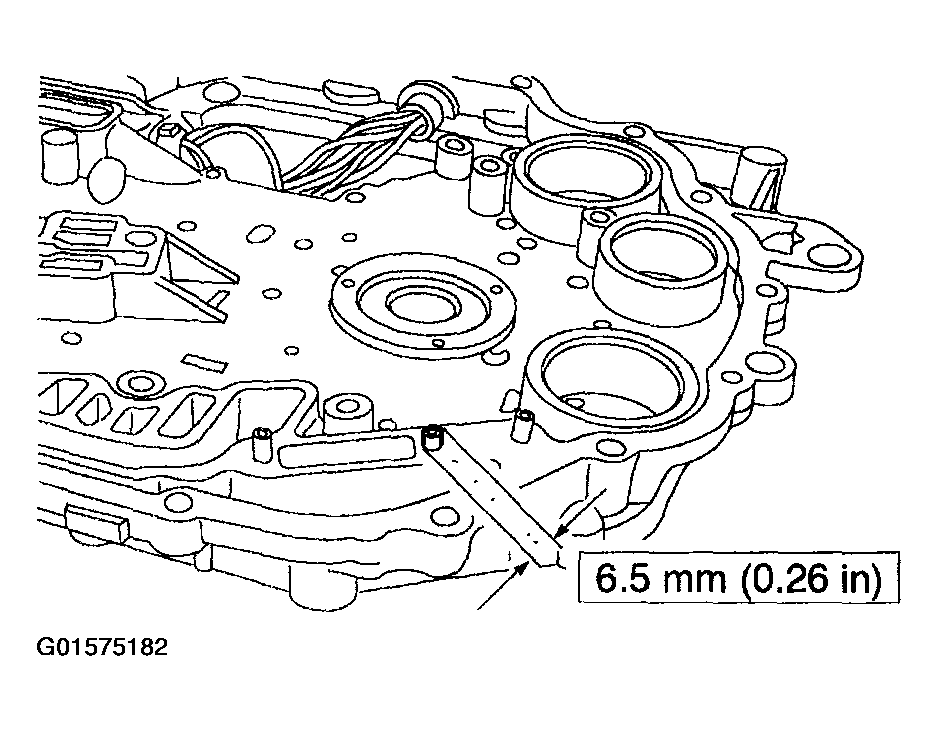

    Fig 2: Measuring Distance Between Center Bimetal Element Pin and Chain Cover
    G01575182Courtesy of FORD MOTOR CO.
  3. Install the bimetal element and the retaining collars.
    Fig 3: Installing Bimetal Element And Retaining Collars
    G01575183Courtesy of FORD MOTOR CO.
  4. Using the special tool, gently tap the retaining collar onto the pin until it seats against the tool edge.

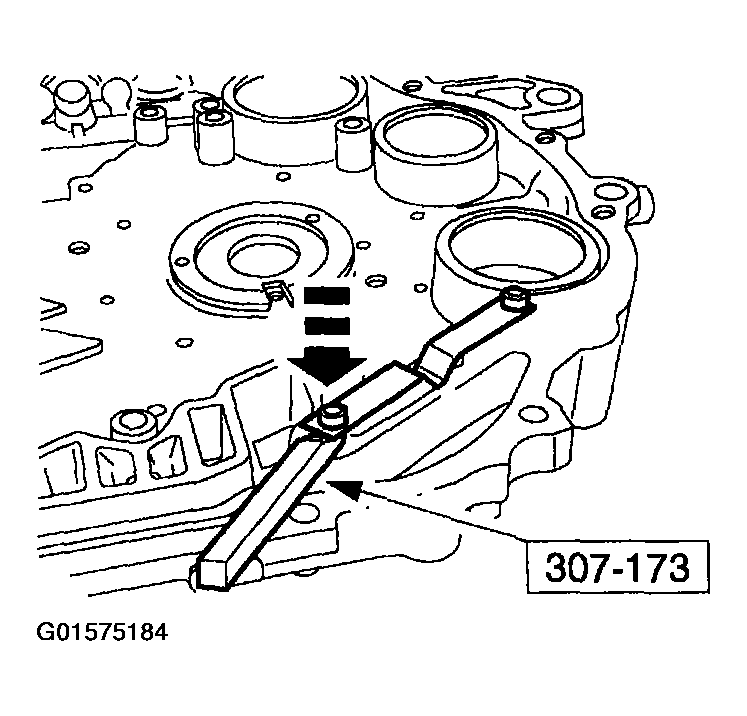

    Fig 4: Taping Retaining Collar Onto Pin
    G01575184Courtesy of FORD MOTOR CO.
  5. Using the special tool, gently tap the retaining collar onto the pin until it seats against the tool edge.

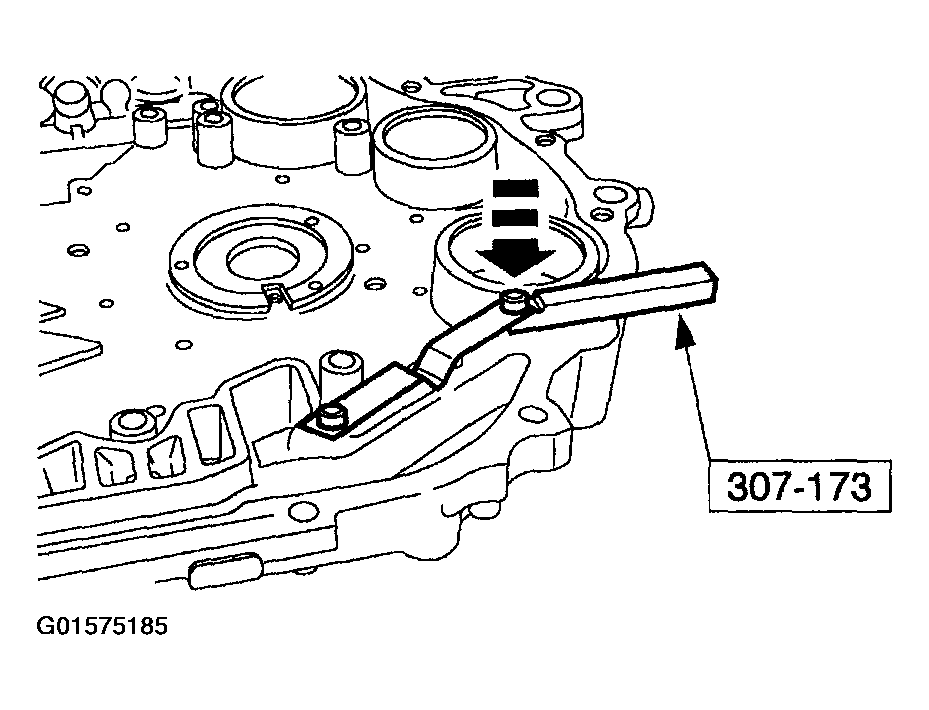

    Fig 5: Taping Retaining Collar Onto Pin
    G01575185Courtesy of FORD MOTOR CO.
  6. Remove the slotted end of the bimetal element and install the thermostat plate over the end and middle pins.

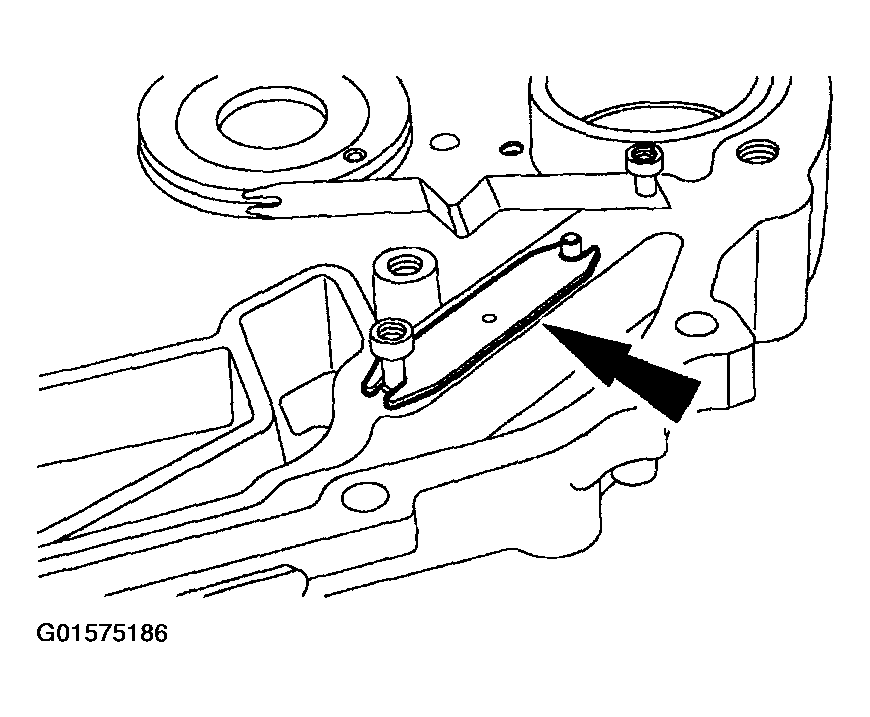

    Fig 6: Removing Slotted End Of Bimetal Element
    G01575186Courtesy of FORD MOTOR CO.
  7. Install the slotted end of the bimetal element under the retaining ring.

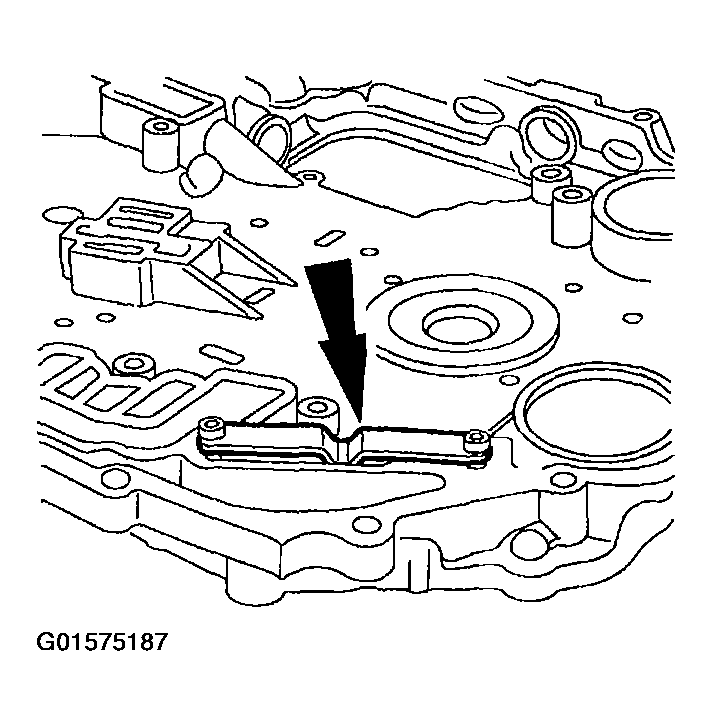

    Fig 7: Removing Slotted End Of Bimetal Element Under Retaining Ring
    G01575187Courtesy of FORD MOTOR CO.
  8. NOTE: Coat the new seals with petroleum jelly.

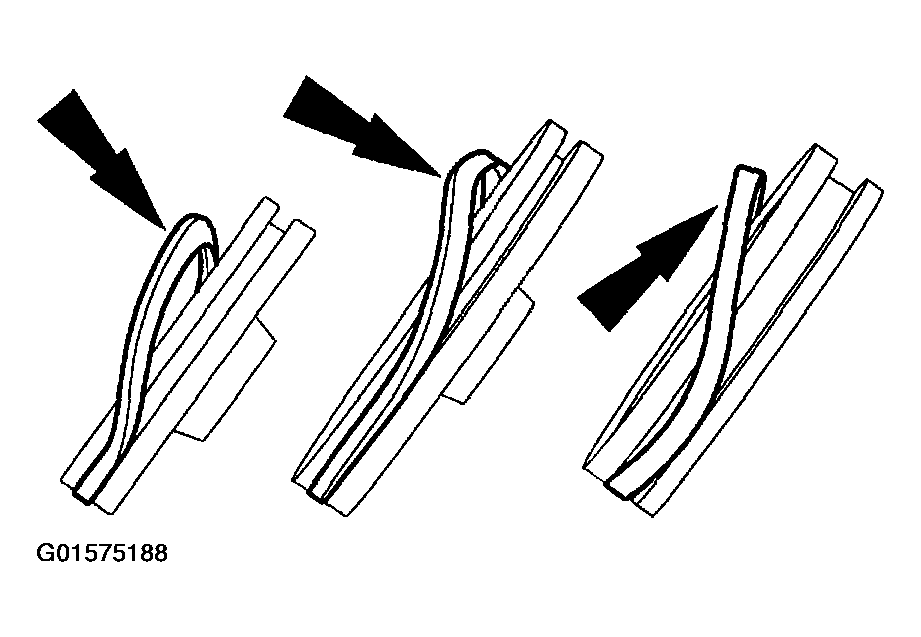

    Fig 8: Removing Seals On Accumulator Pistons
    G01575188Courtesy of FORD MOTOR CO.
  9. Install new seals on the accumulator pistons.
  10. CAUTION: Do not allow the pistons to cock in their bores or damage to the seals may result.

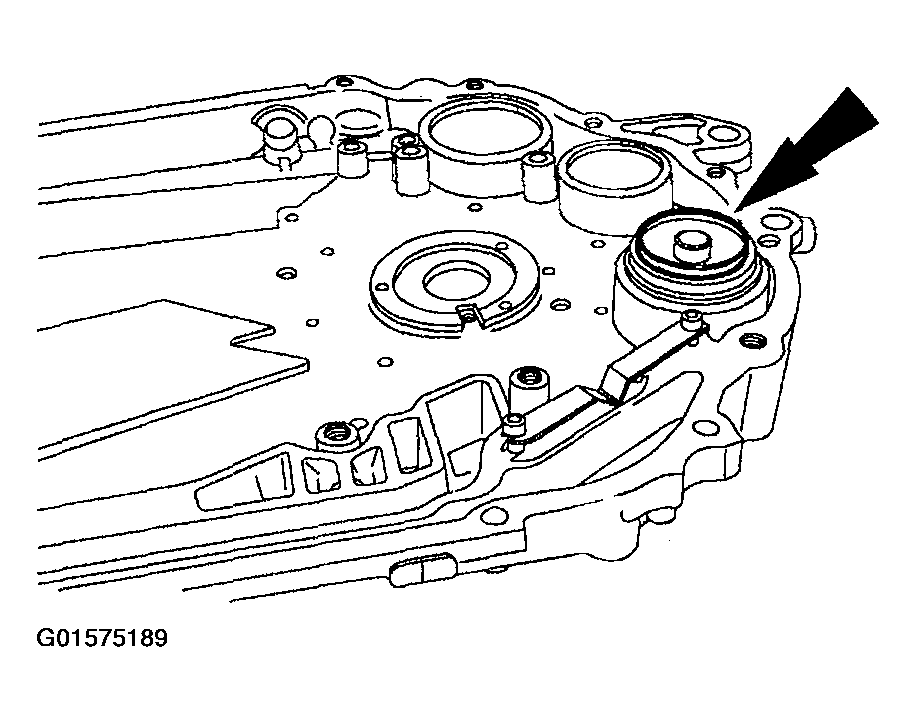

    Fig 9: Installing Pistons Into Correct Bore Of Cover
    G01575189Courtesy of FORD MOTOR CO.
  11. Install the pistons into the correct bore of the cover with the spring pocket up.
  12. NOTE: The use of petroleum jelly will hold the accumulator piston shafts in place while assembling the chain cover.

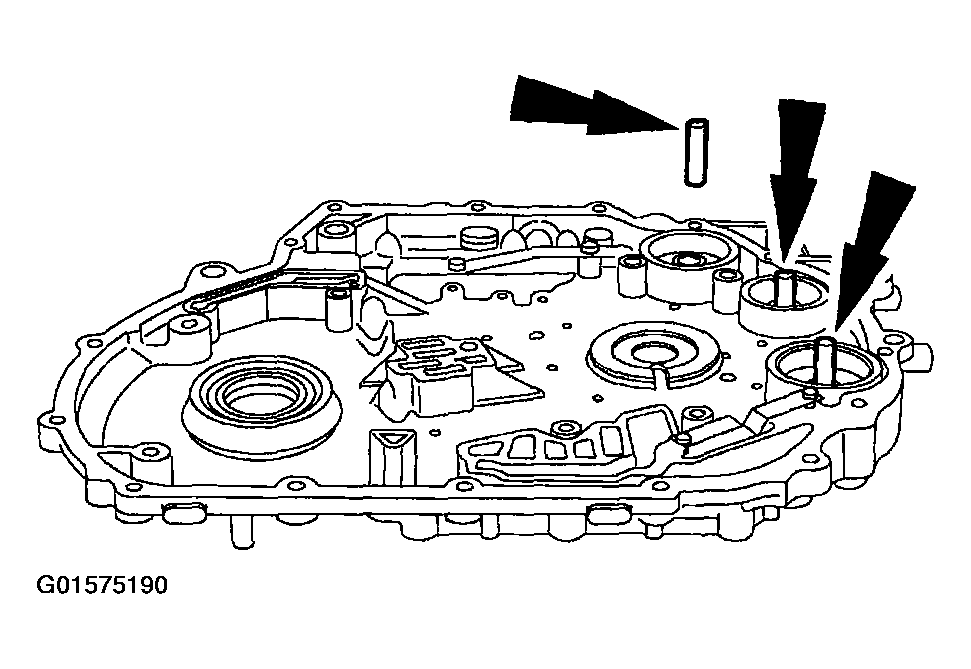

    Fig 10: Installing Accumulator Piston Shafts
    G01575190Courtesy of FORD MOTOR CO.
  13. Install the accumulator piston shafts.
  14. Install the internal wire harness if it was removed.

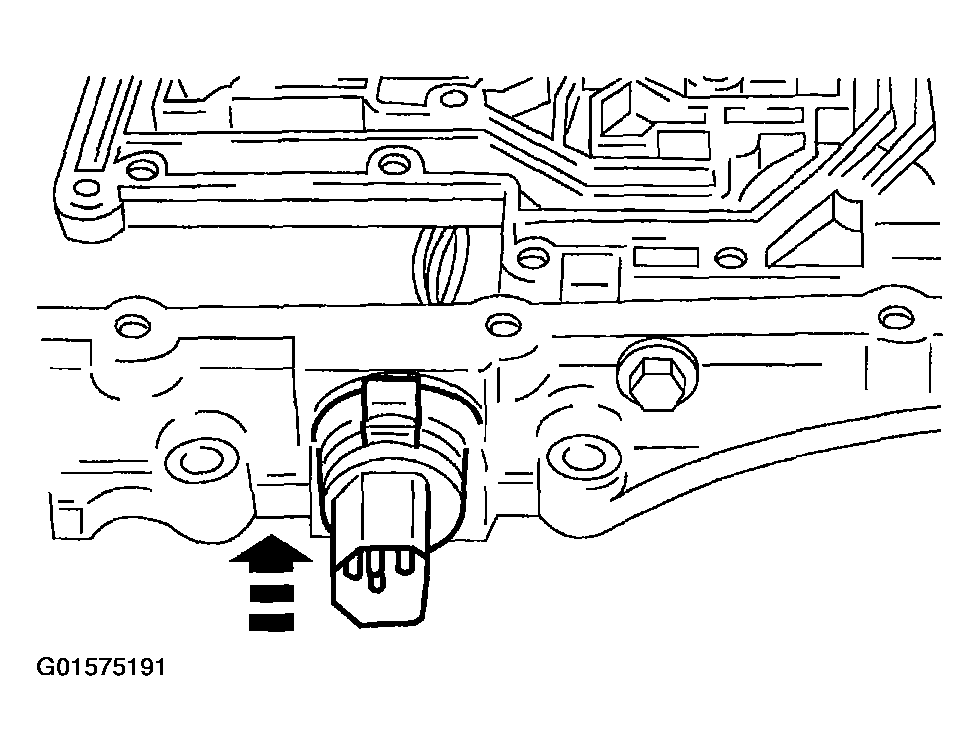

    Fig 11: Identifying Internal Wire Harness
    G01575191Courtesy of FORD MOTOR CO.
