Direct Clutch Cylinder: Notes

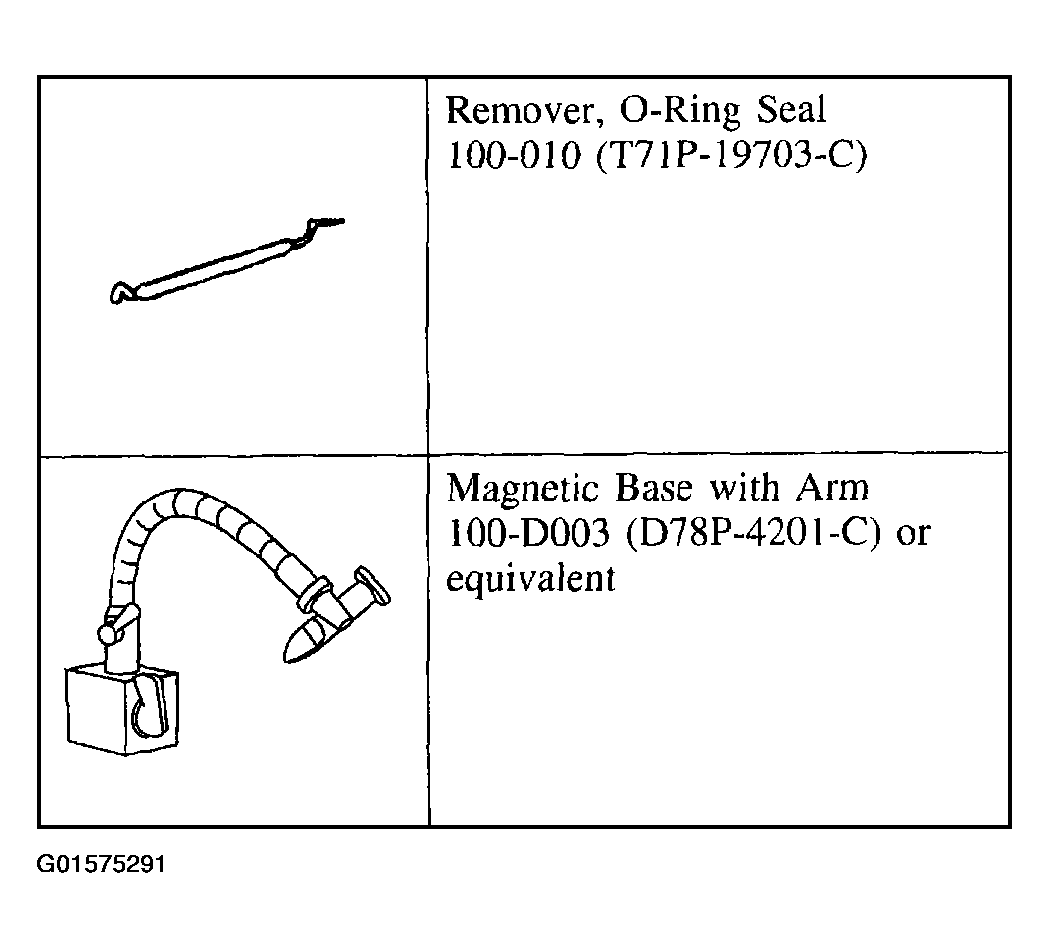

Fig 1: Identifying Special Tools (1 Of 2)
G01575291Courtesy of FORD MOTOR CO.

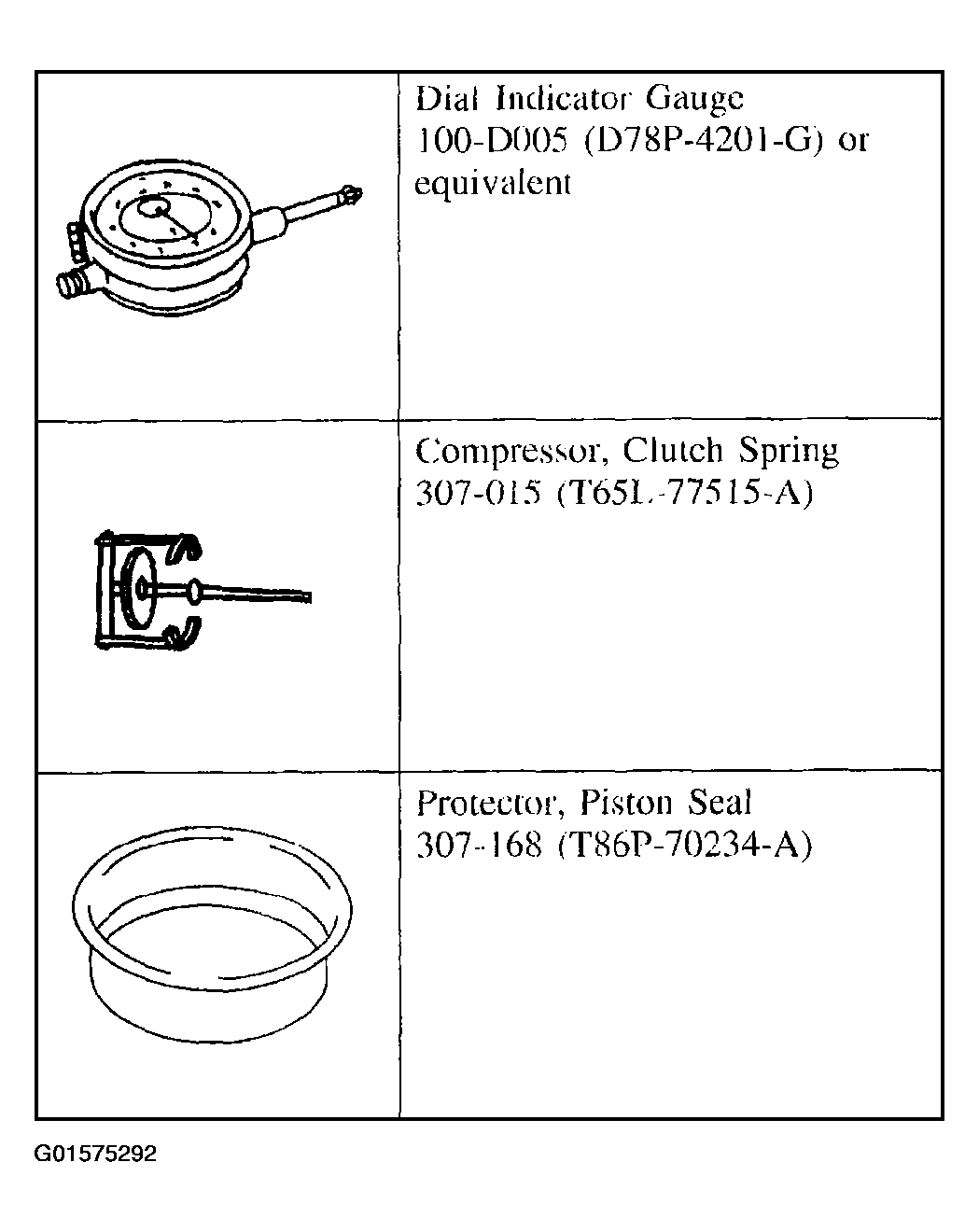

Fig 2: Identifying Special Tools (2 Of 2)
G01575292Courtesy of FORD MOTOR CO.

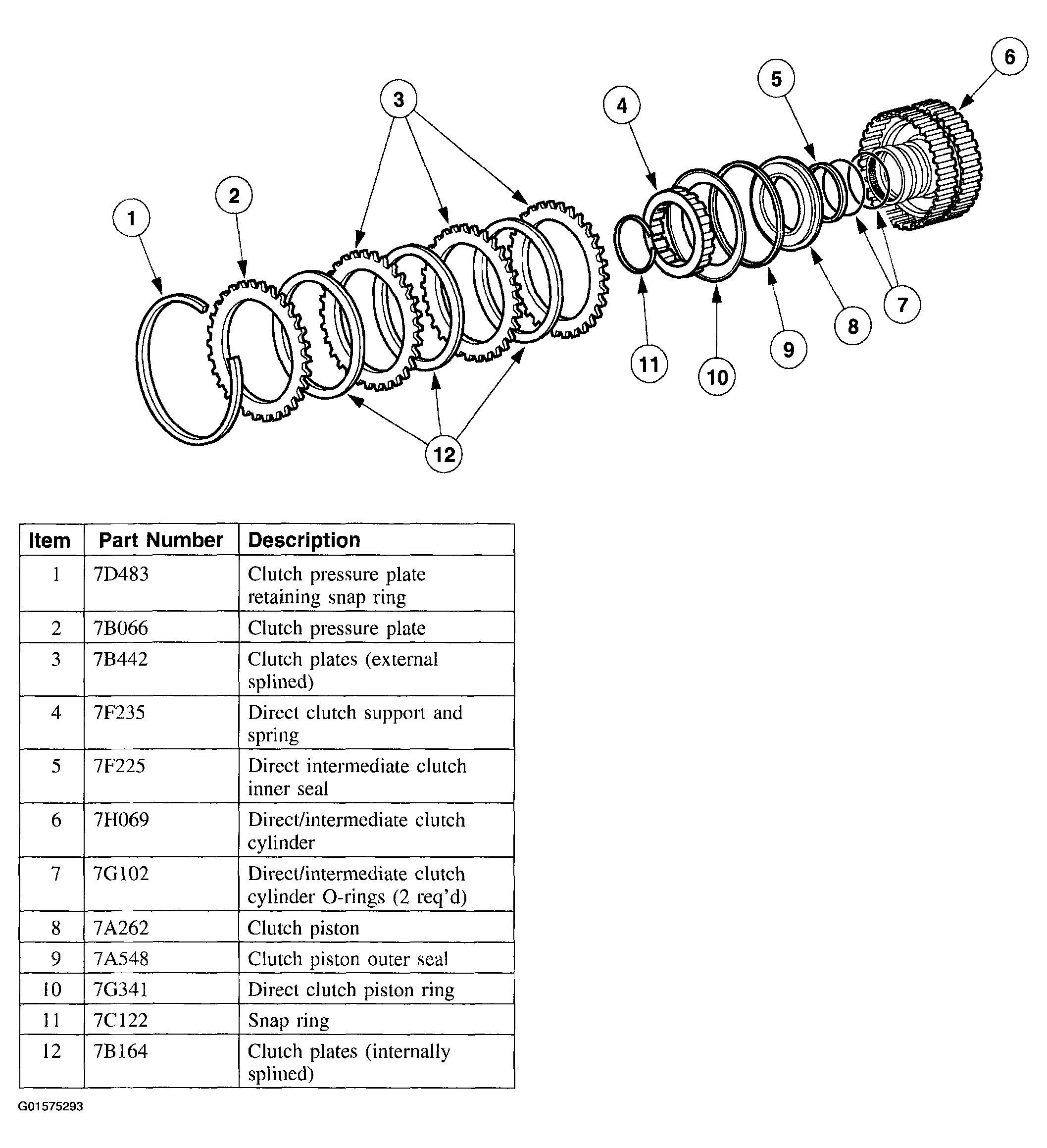

Fig 3: Exploded View Of Direct Clutch Cylinder
G01575293Courtesy of FORD MOTOR CO.
