Driven Sprocket Support: Assembly

If removed, install a new driven sprocket bearing. Using an arbor press and the special tools, install a new driven sprocket bearing.

Fig 1: Installing Driven Sprocket Bearing
Courtesy of FORD MOTOR CO.

CAUTION: The seal rings must be installed correctly. Transaxle failure could result.

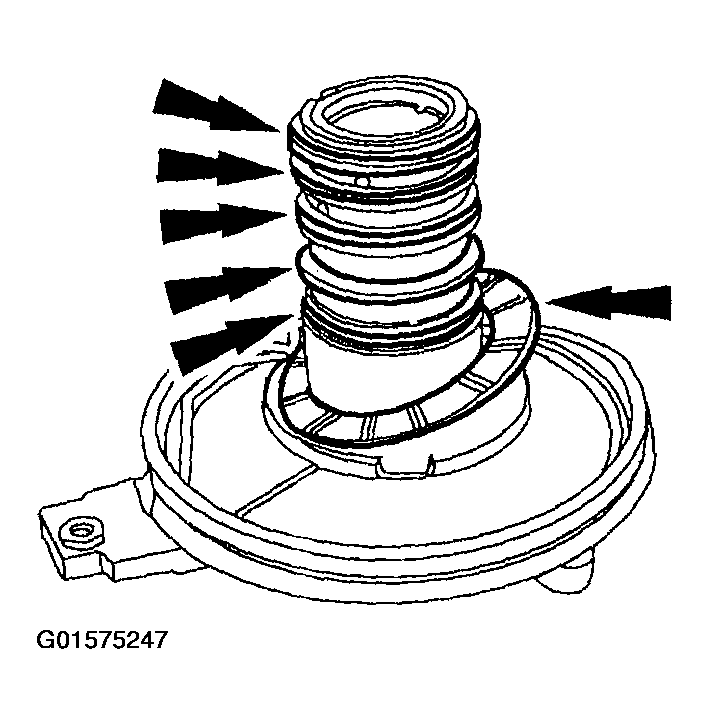

Fig 2: Installing Teflon® Seal Rings And Thrust Washer

Courtesy of FORD MOTOR CO.

Install new Teflon® seals and the No. 5 thrust washer.
Make sure that the seals are mated correctly.

Fig 3: Identifying Seals Are Mated Correctly
Courtesy of FORD MOTOR CO.
