End Play Check

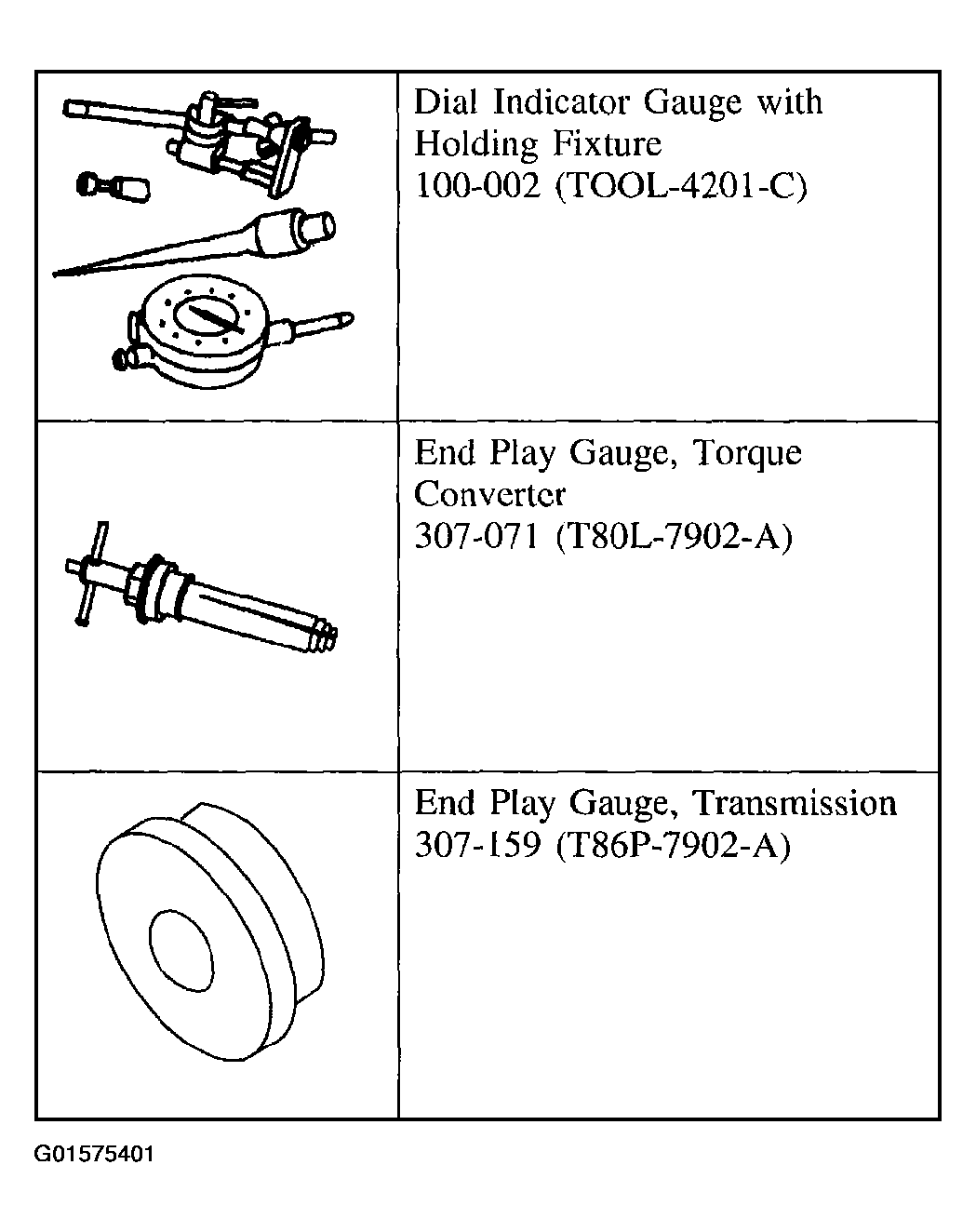

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

Install the special tools into the torque converter.

Fig 2: Installing Special Tools Into Torque Converter
Courtesy of FORD MOTOR CO.
Tighten the nut.

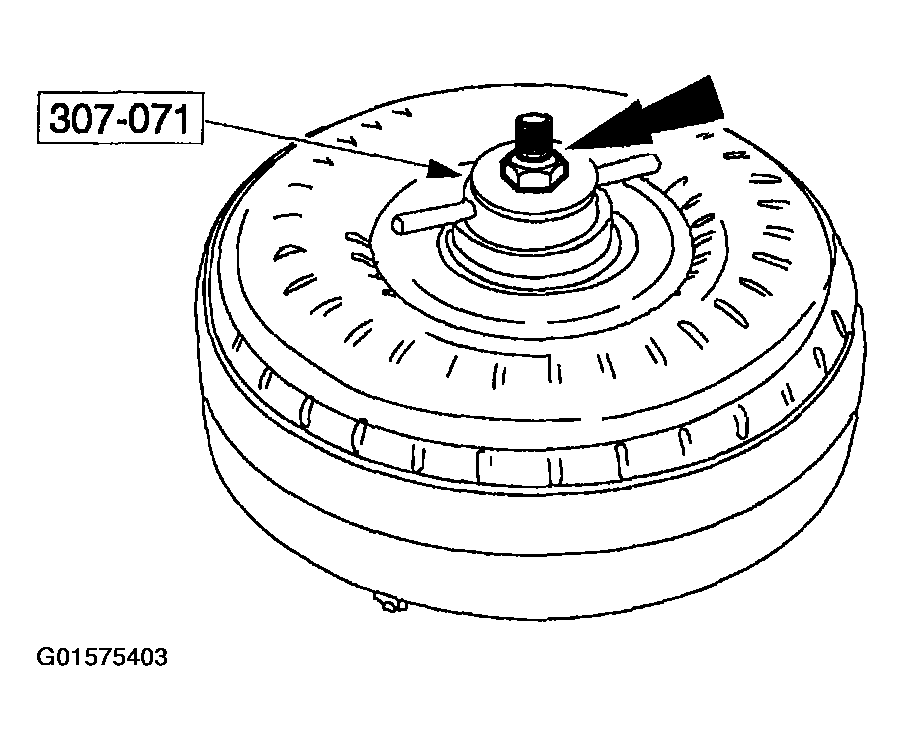

Fig 3: Tightening Special Tools Nut
Courtesy of FORD MOTOR CO.
Install the special tool.

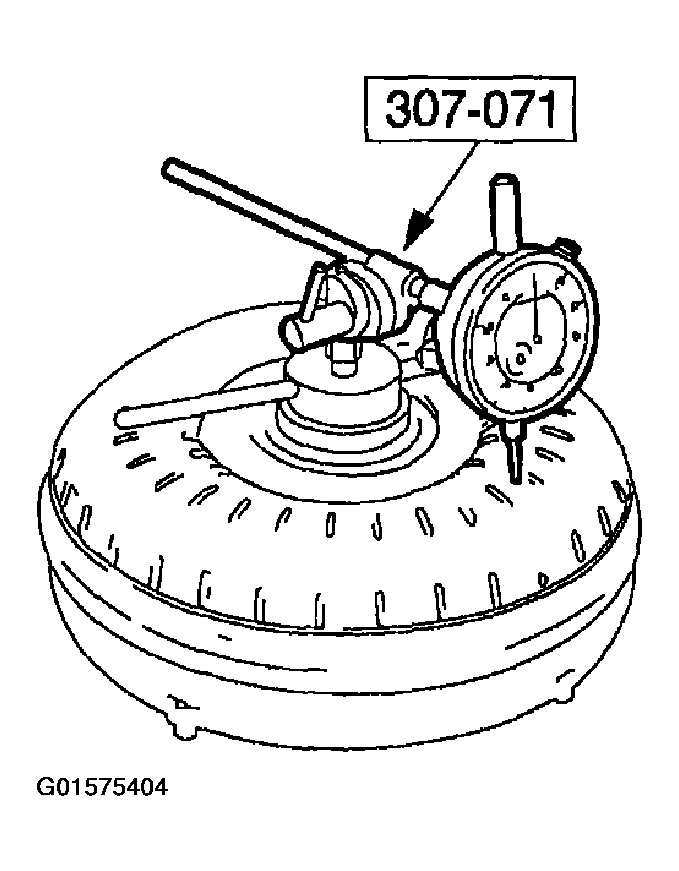

Fig 4: Installing Special Tool (307-071)
Courtesy of FORD MOTOR CO.

NOTE: If the indicator reading is above specification, install a new or remanufactured torque converter.

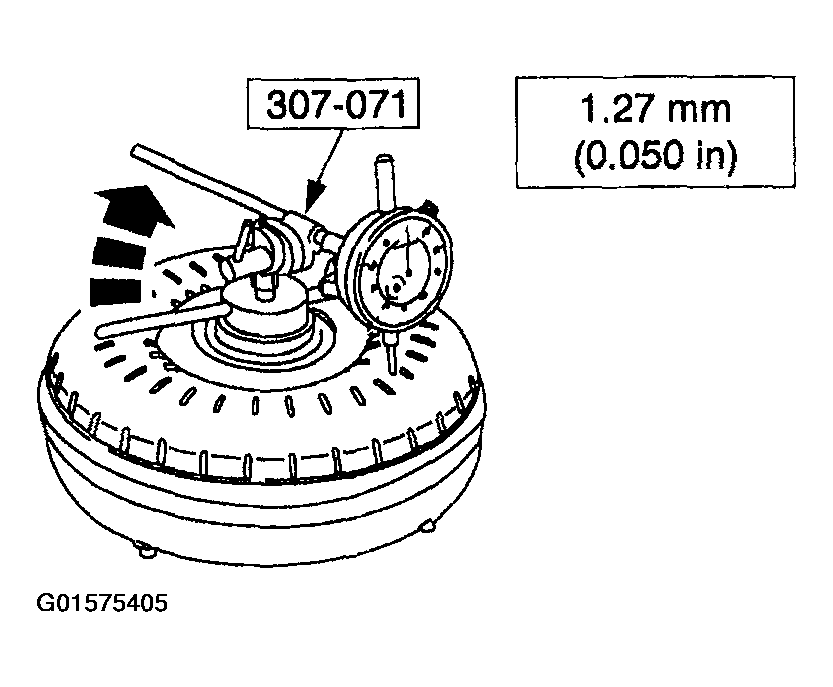

Fig 5: Checking End Play

Courtesy of FORD MOTOR CO.

With the stylus contacting the converter shell and the dial indicator set to zero lift up on the handles of the checking tool.
