Main Control Valve Body: Disassembly

  1. Remove the pump assembly.

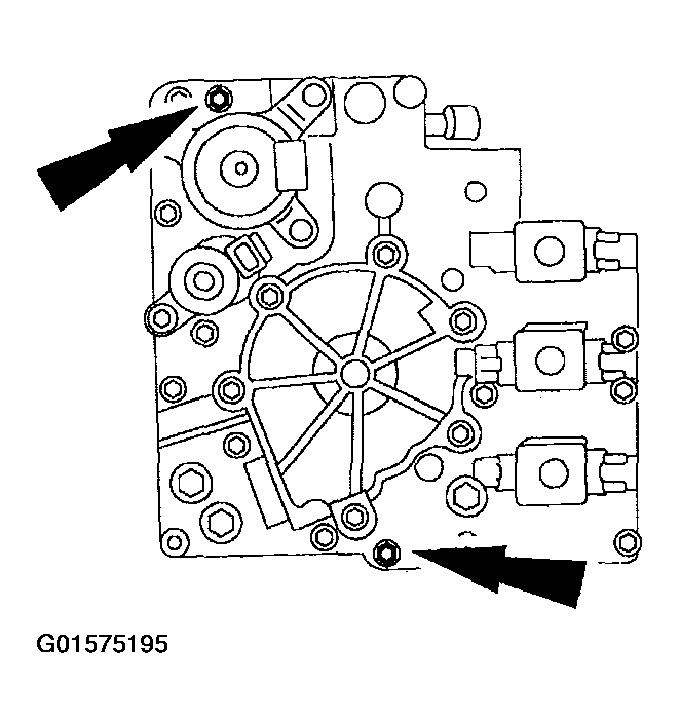

    Fig 1: Identifying Pump Assembly Bolts
    G01575195Courtesy of FORD MOTOR CO.
  2. NOTE: The valve body separator plate has a bonded gasket.

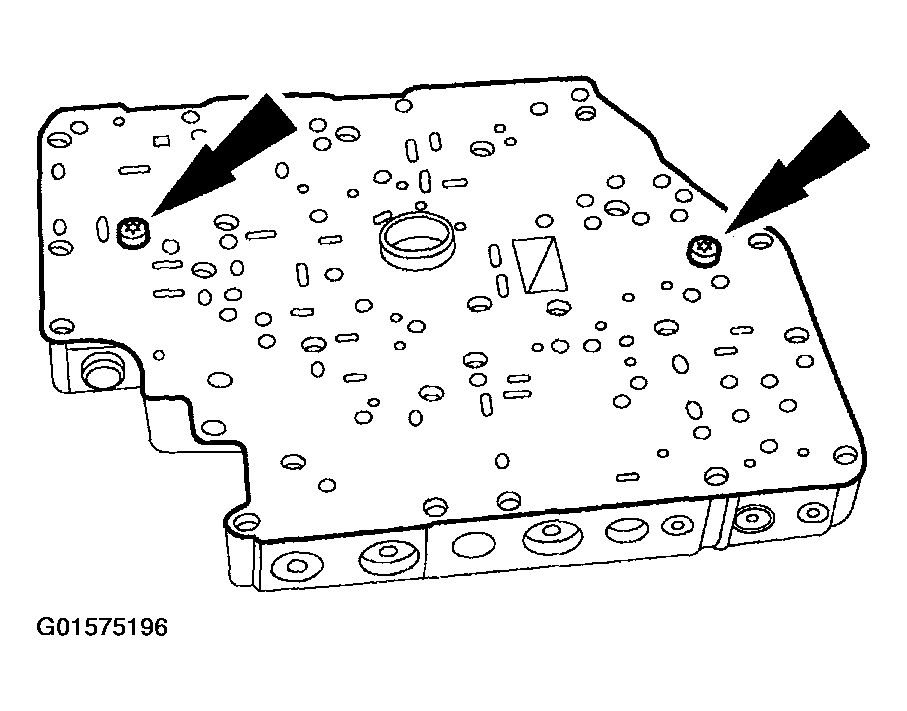

    Fig 2: Identifying Separator Plate Nuts
    G01575196Courtesy of FORD MOTOR CO.
  3. Remove the separator plate.
  4. NOTE: Be sure to note the location of the check balls.

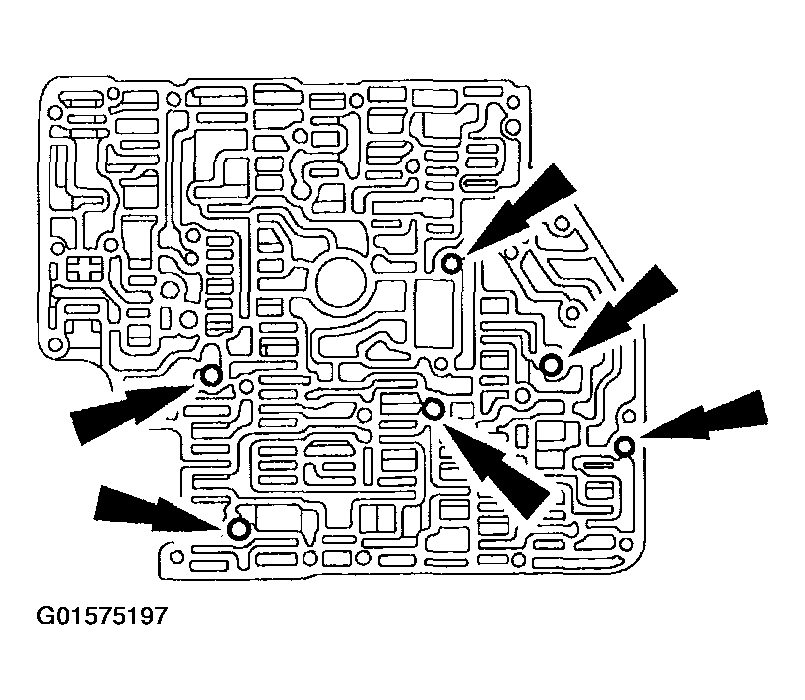

    Fig 3: Identifying Check Balls
    G01575197Courtesy of FORD MOTOR CO.
  5. Remove the check balls.
  6. NOTE: Be sure to note the location of the filters.

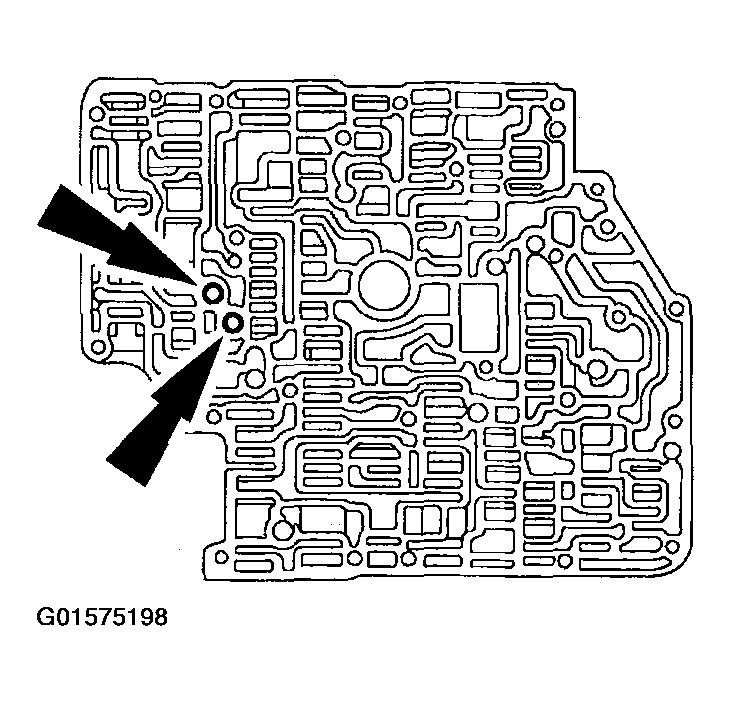

    Fig 4: Identifying Filters
    G01575198Courtesy of FORD MOTOR CO.
  7. Remove the filters.
  8. NOTE: Be sure to note the location of the relief valves.

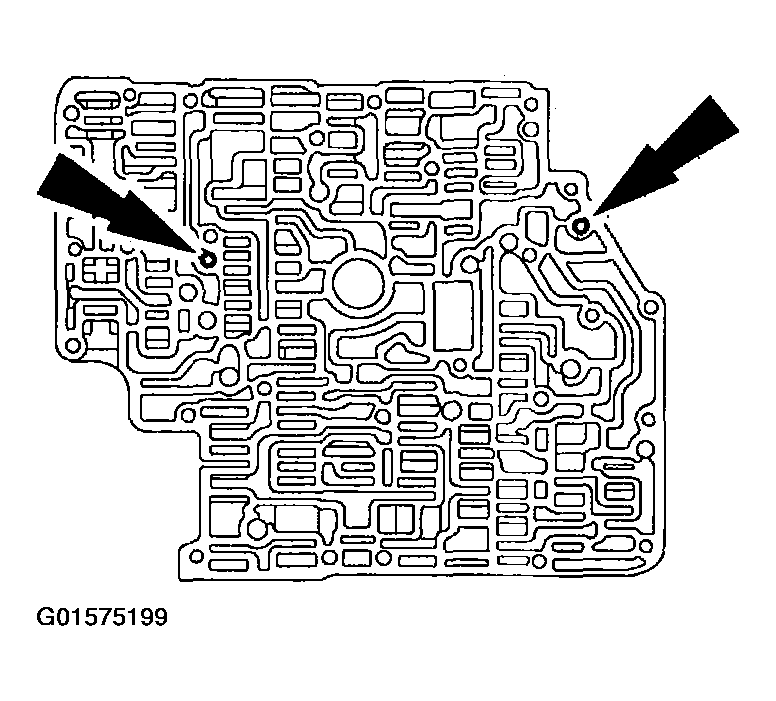

    Fig 5: Identifying Relief Valves
    G01575199Courtesy of FORD MOTOR CO.
  9. Remove the relief valves
  10. CAUTION: Most valves are aluminum and cannot be removed using a magnet.
    Remove the valves by tapping valve body on the palm of the hand to slide the valves out of the bores. It may be necessary to remove the valves and springs using a pick. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups.
    Take special care when handling the main control components, since they are the most precise and delicate parts of the transaxle.
    Neatly arrange the parts as they are removed to avoid mixing similar pieces.
    CAUTION: Do not stone or polish any valves. If the valves do not move freely, install a new assembly.

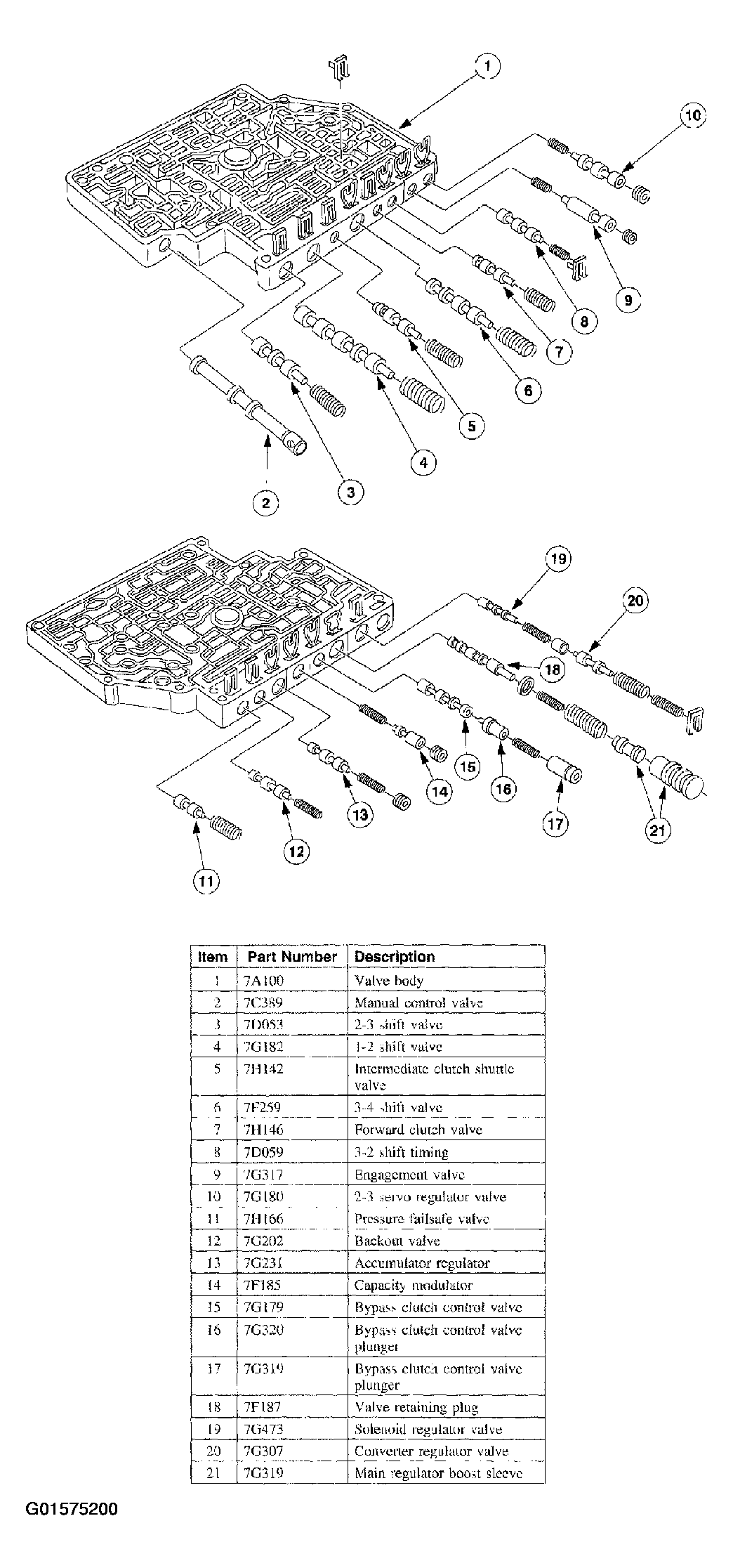

    Fig 6: Assembling View Of Main Control Valve Body
    G01575200Courtesy of FORD MOTOR CO.
  11. Remove the individual valves and springs by removing the retaining clips and bore plugs.

    Refer to the Main Control Valve Body Assembly illustration for valve and spring locations. Clean valves, springs and main control valve body.
