Planet Assembly: Assembly

Install the reverse planet.

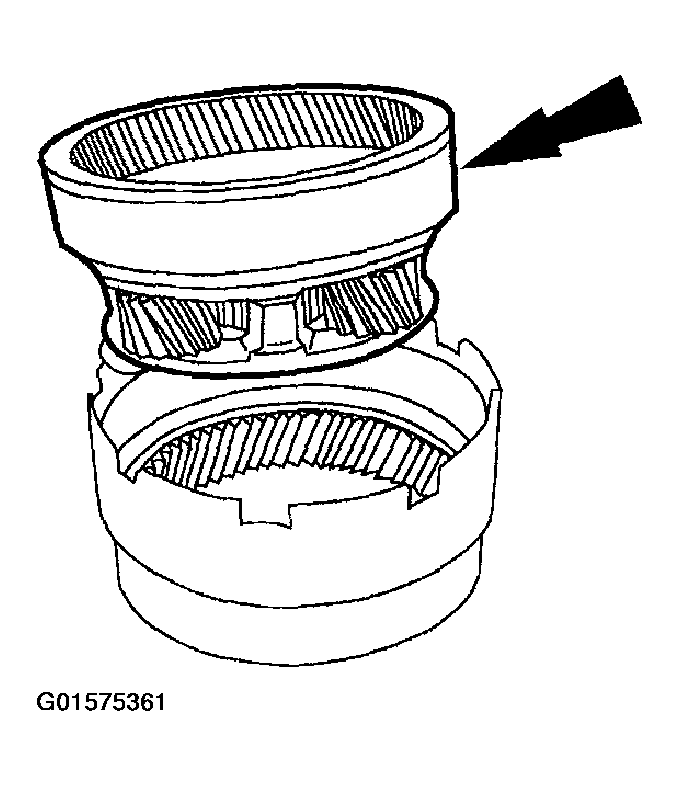

Fig 1: Installing Reverse Planet
Courtesy of FORD MOTOR CO.
Install the No. 13 needle bearing.

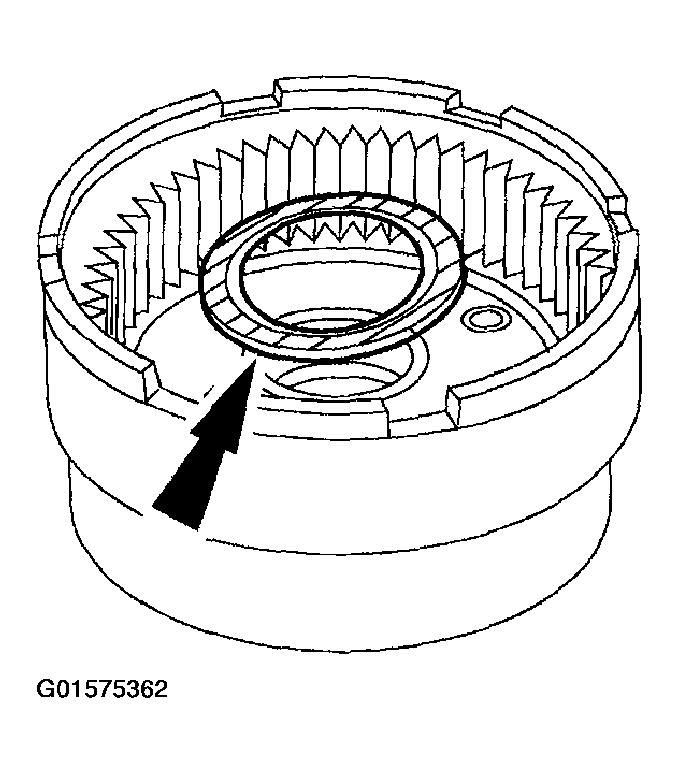

Fig 2: Installing Needle Bearing
Courtesy of FORD MOTOR CO.
Install the front planet gear assembly.

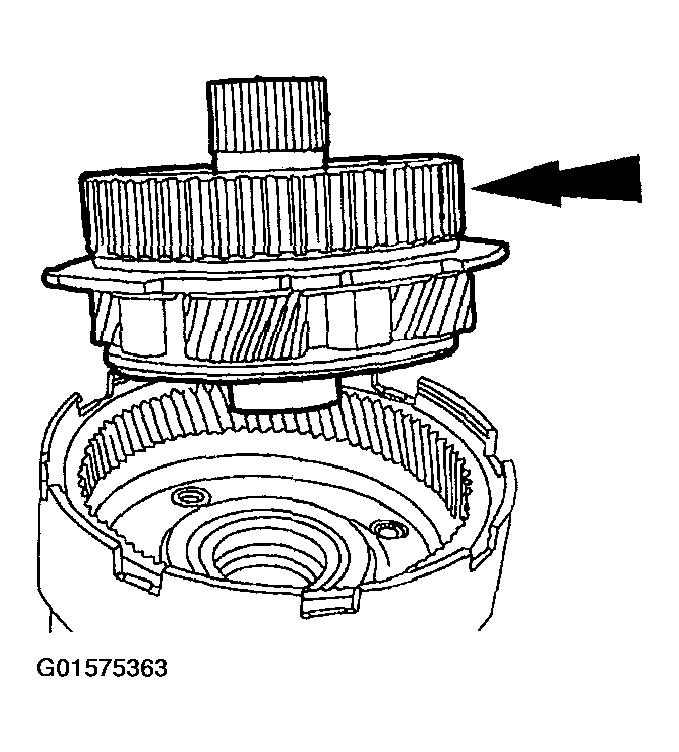

Fig 3: Installing Front Planet Gear Assembly
Courtesy of FORD MOTOR CO.

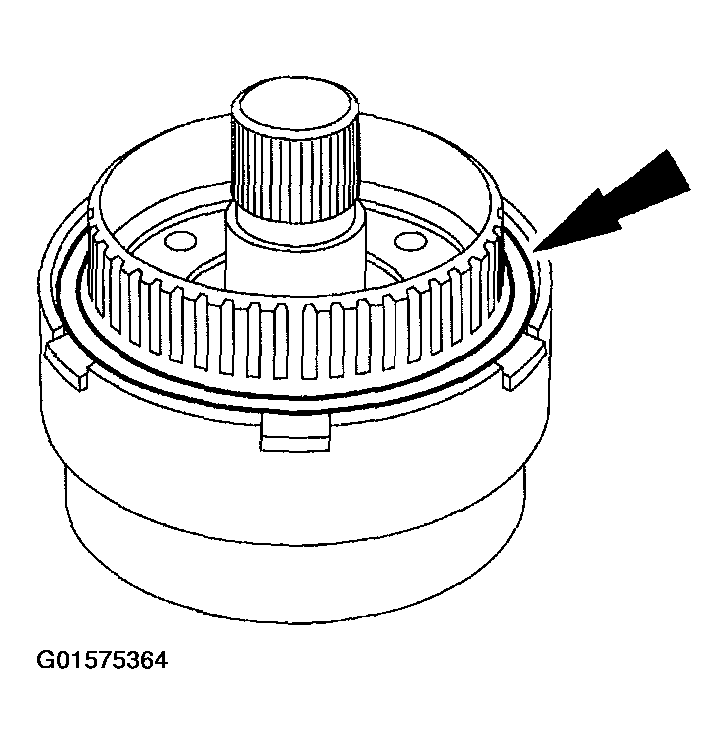

Fig 4: Installing Retaining Ring To Rear Ring Gear
Courtesy of FORD MOTOR CO.
Install the retaining ring to the rear ring gear.
