Reverse Clutch: Assembly

    NOTE: The lip on the seal faces toward the bottom of the cylinder.
    Fig 1: Installing Reverse Clutch Piston Inner Seal
    G01575345Courtesy of FORD MOTOR CO.
  1. Install a new reverse clutch piston inner seal.
    2. NOTE: The lip on the seal faces toward the bottom of the cylinder.
    Fig 2: Installing Reverse Clutch Piston Outer Seal
    G01575346Courtesy of FORD MOTOR CO.
  2. Install a new reverse clutch piston outer seal.
  3. Using the special tool, install the reverse clutch piston.

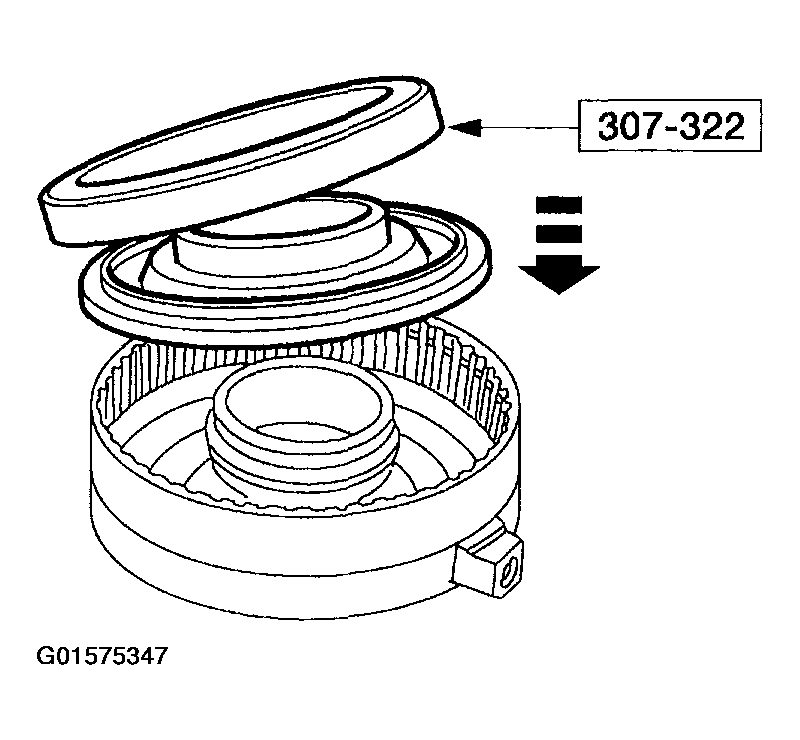

    Fig 3: Installing Reverse Clutch Piston
    G01575347Courtesy of FORD MOTOR CO.
  4. Install the reverse clutch support and spring.

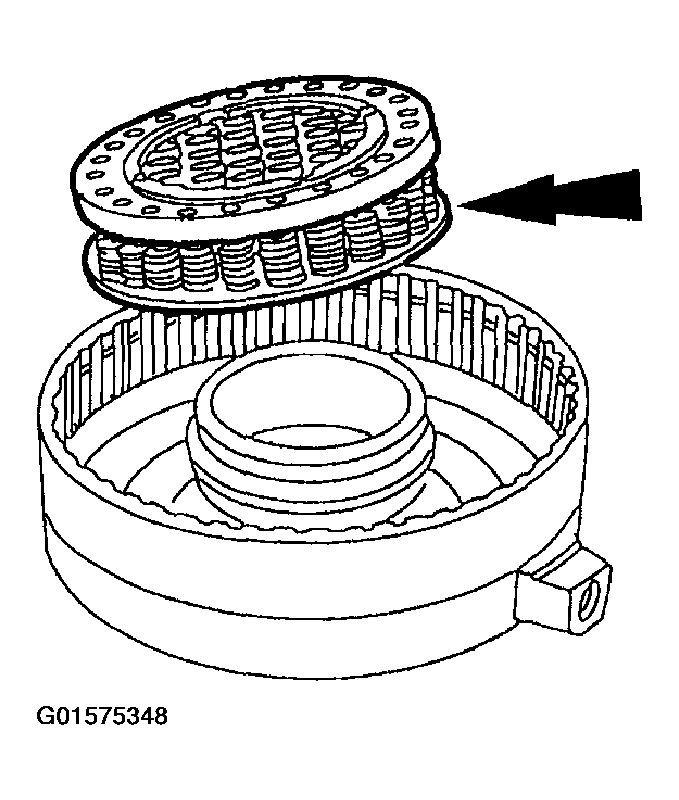

    Fig 4: Installing Reverse Clutch Support And Spring
    G01575348Courtesy of FORD MOTOR CO.
    5. CAUTION: Do not fully compress the spring retainer.
    Fig 5: Installing Snap Ring
    G01575349Courtesy of FORD MOTOR CO.
  5. Using the special tool, install the snap ring.
  6. Install the reverse clutch pressure plate retainer snap ring.
    1. Install the wave spring.
    2. Install the clutch pack.
    3. Install the reverse clutch pressure plate.
    4. Install the reverse clutch pressure plate retainer snap ring.

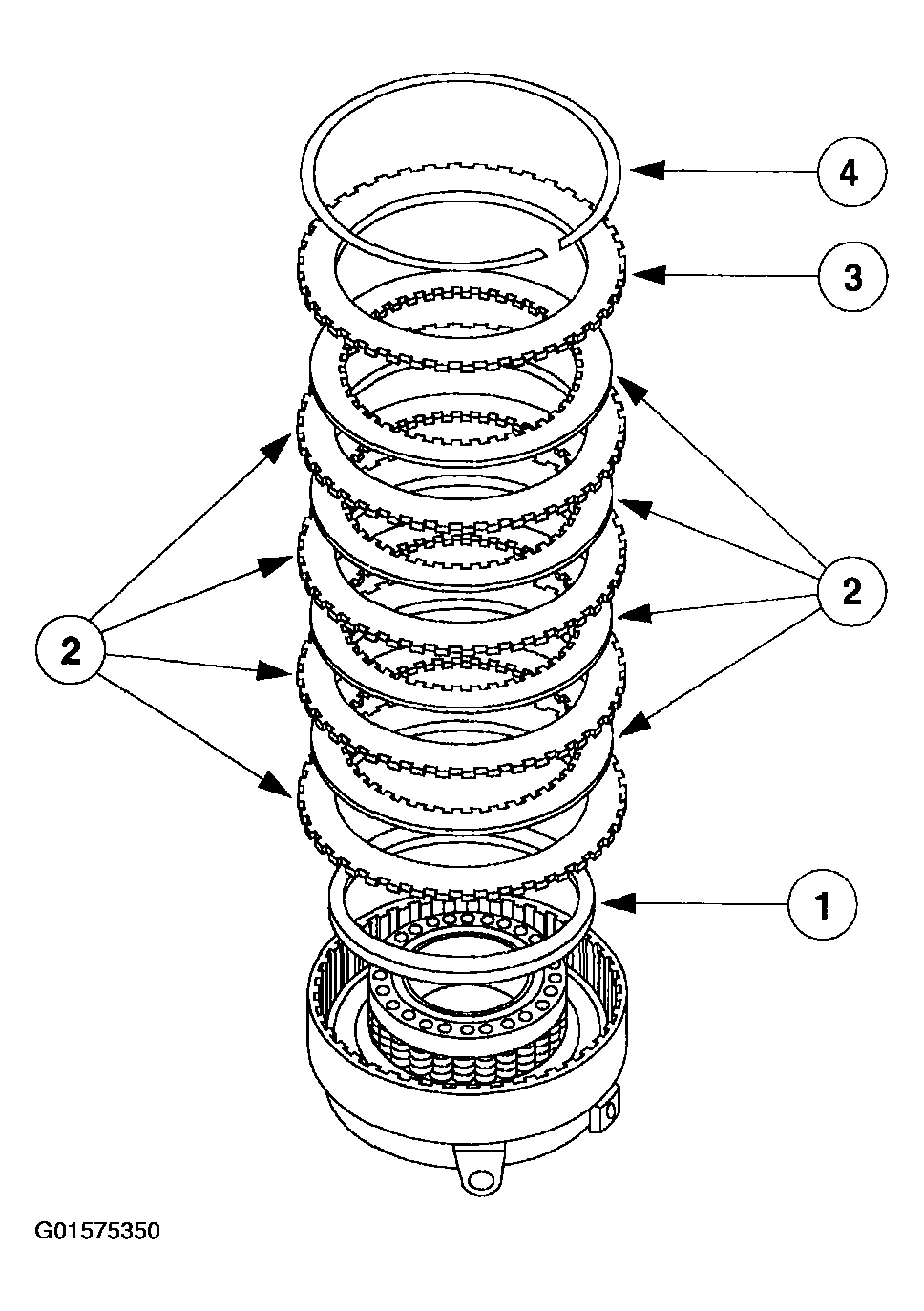

      Fig 6: Installing Reverse Clutch Pressure Plate Retainer Snap Ring
      G01575350Courtesy of FORD MOTOR CO.
    7. WARNING: To prevent injury, wear eye protection when using pressurized air.
    NOTE: Be sure the shop air is dry and regulated at 276 kPa (40 psi).
    Fig 7: Applying Air Pressure To Clutch Assembly
    G01575351Courtesy of FORD MOTOR CO.
  7. Using the special tool, apply air pressure to the clutch assembly and check for correct operation.
    8. NOTE: Measure the clearance using the special tool. Take two readings 180 degrees apart, and determine the average of the two readings.

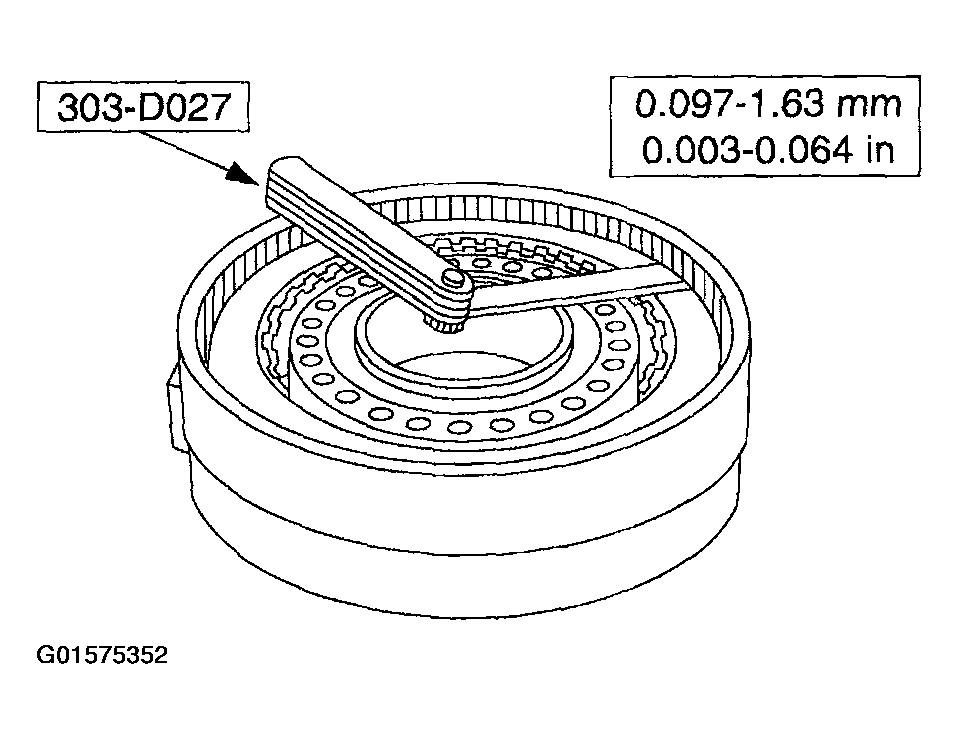

    Fig 8: Measuring Clearance
    G01575352Courtesy of FORD MOTOR CO.
  8. Using the special tool, measure the clearance.
  9. If the clearance is not within specification, selective retaining rings are available. Check the clearance after installing the correct selective retaining ring.
    Fig 9: Selective Retaining Ring Specification Table (1 Of 2)
    G01575353Courtesy of FORD MOTOR CO.
    Fig 10: Selective Retaining Ring Specification Table (2 Of 2)
    G01575354Courtesy of FORD MOTOR CO.
