Reverse Clutch: Disassembly

  1. Remove the reverse clutch pack assembly.
    1. Remove the reverse clutch pressure plate retainer snap ring.
    2. Remove the reverse clutch pressure plate.
    3. Remove the clutch pack.
    4. Remove the wave spring.

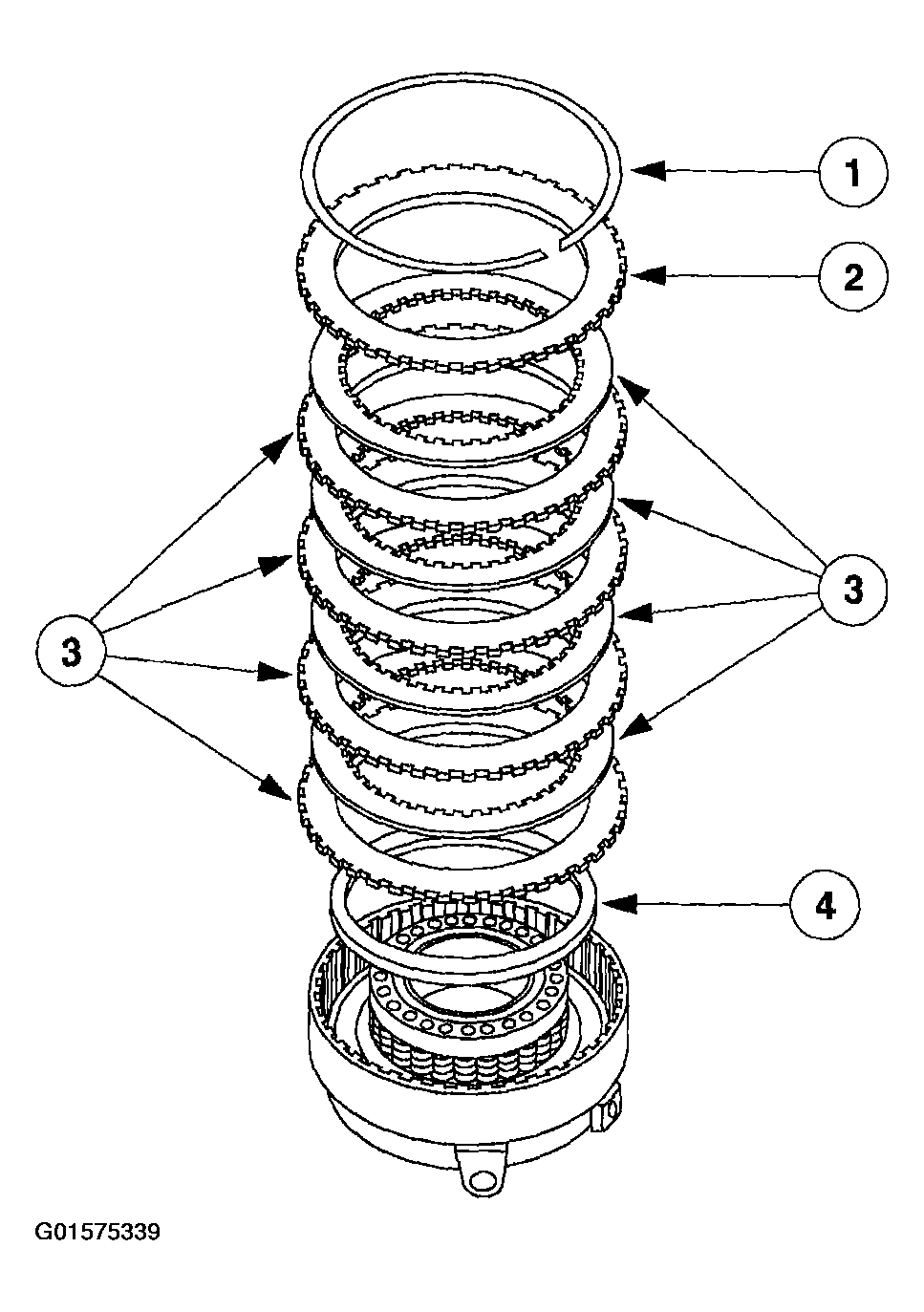

      Fig 1: Exploded View Of Reverse Clutch Pack Assembly
      G01575339Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not fully compress the spring retainer.
    Fig 2: Removing Snap Ring
    G01575340Courtesy of FORD MOTOR CO.
  2. Using the special tool, remove the snap ring.
  3. Remove the reverse clutch support and spring.

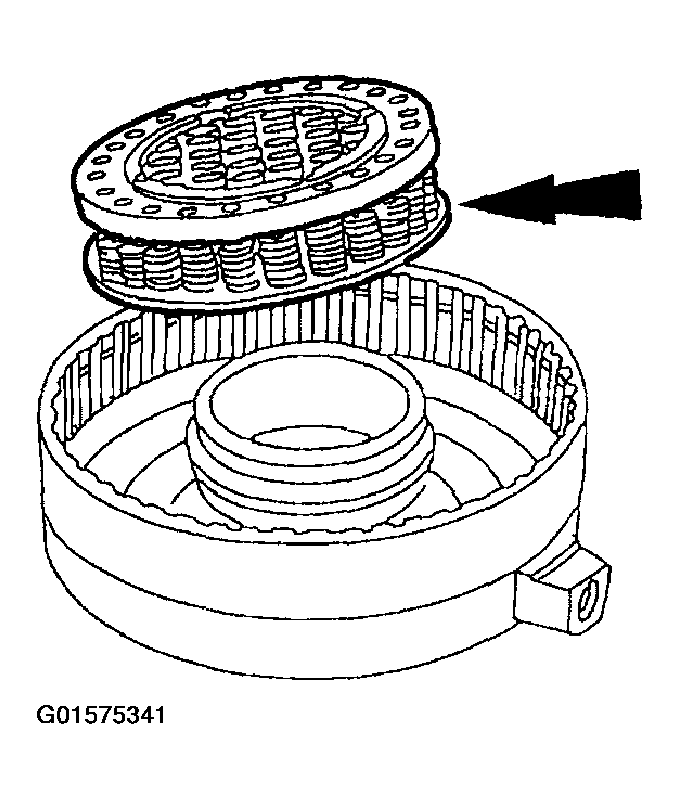

    Fig 3: Removing Reverse Clutch Support And Spring
    G01575341Courtesy of FORD MOTOR CO.
  4. Remove the reverse clutch piston.

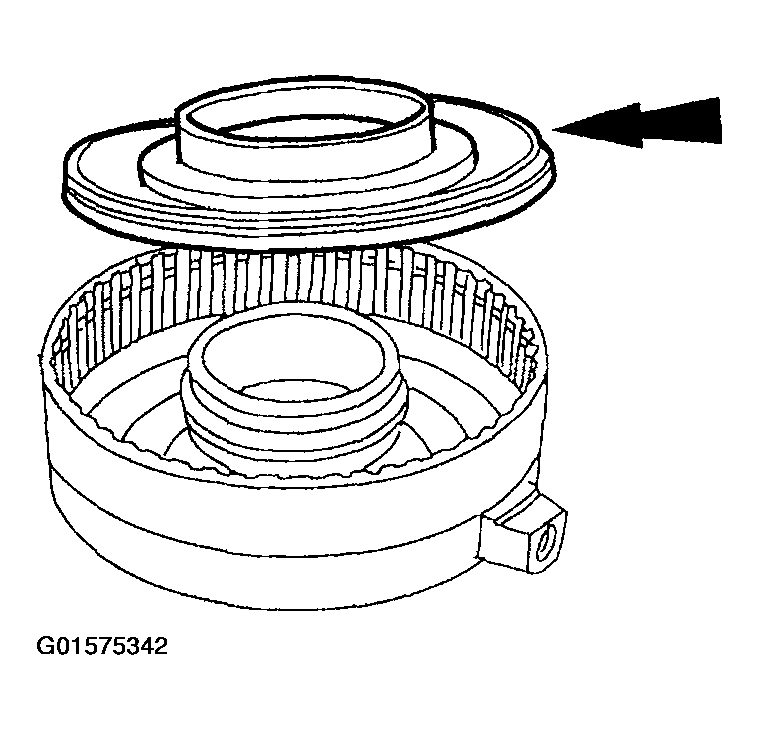

    Fig 4: Removing Reverse Clutch Piston
    G01575342Courtesy of FORD MOTOR CO.
  5. Remove the reverse clutch piston outer seal.
    Fig 5: Removing Reverse Clutch Piston Outer Seal
    G01575343Courtesy of FORD MOTOR CO.
  6. Remove the reverse clutch piston inner seal.
    Fig 6: Removing Reverse Clutch Piston Inner Seal
    G01575344Courtesy of FORD MOTOR CO.
