Reverse Clutch: Notes

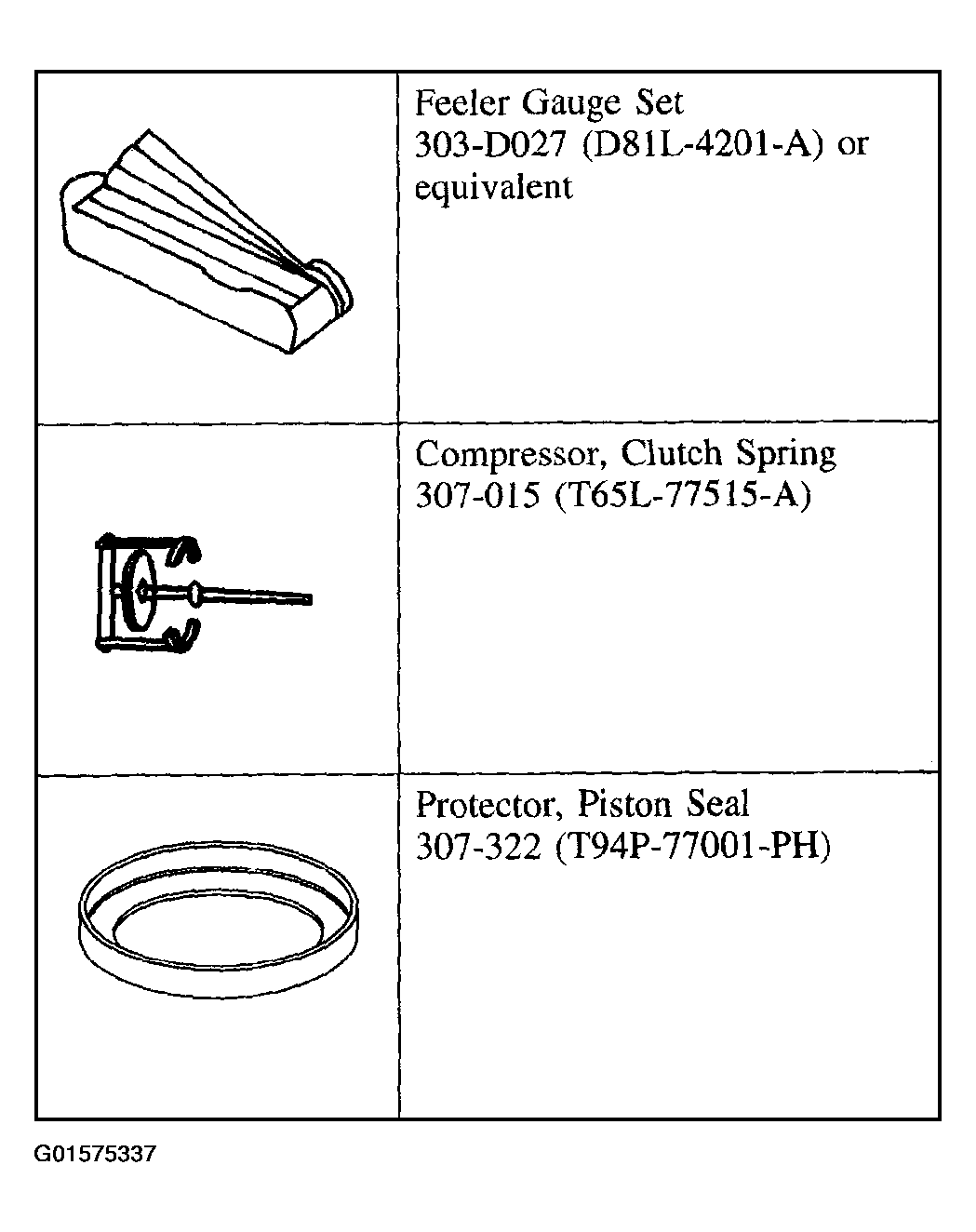

Fig 1: Identifying Special Tools
G01575337Courtesy of FORD MOTOR CO.

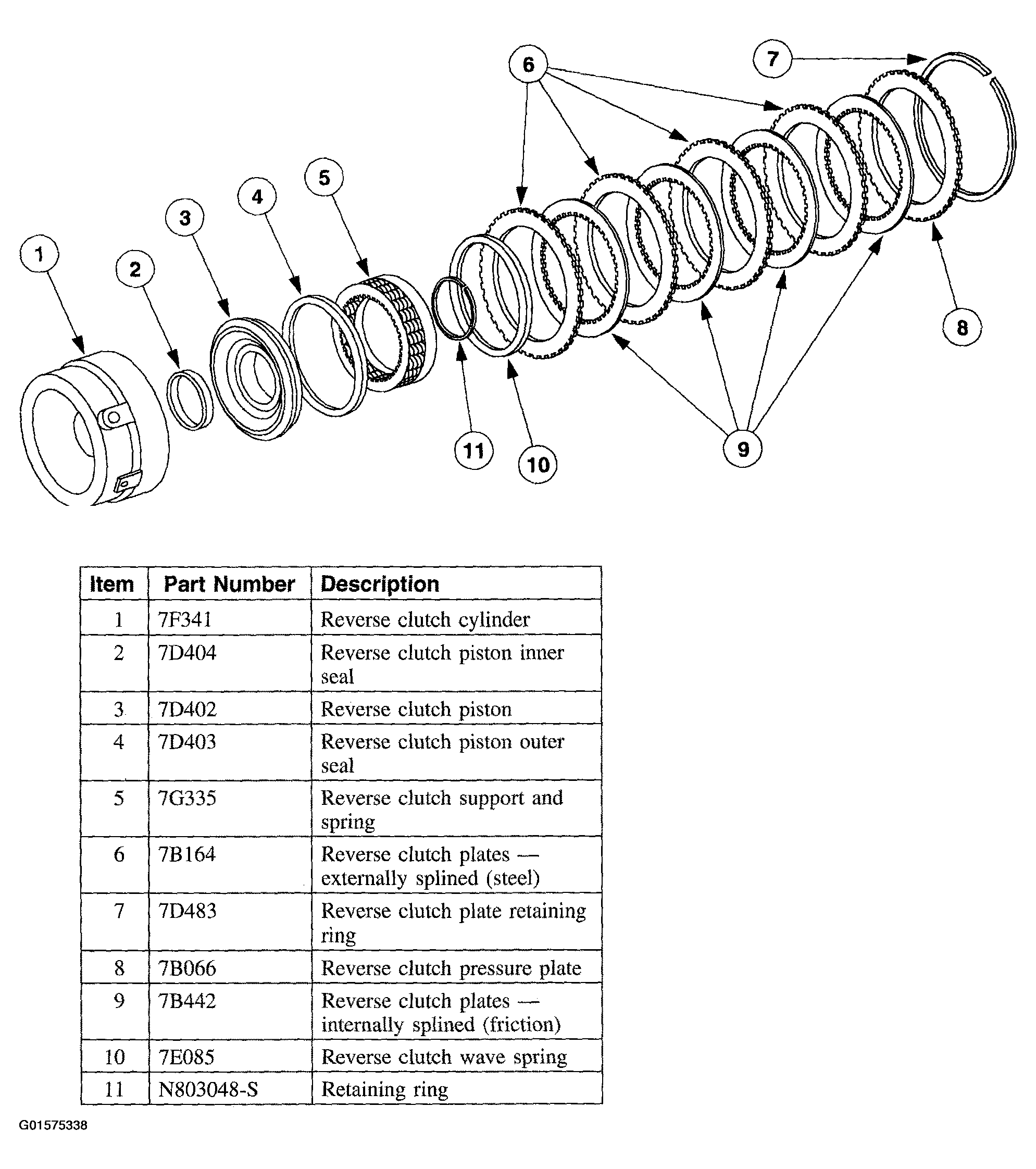

Fig 2: Exploded View Of Reverse Clutch
G01575338Courtesy of FORD MOTOR CO.
