Automatic Transmission - Ax4S: Disassembly: Transaxle

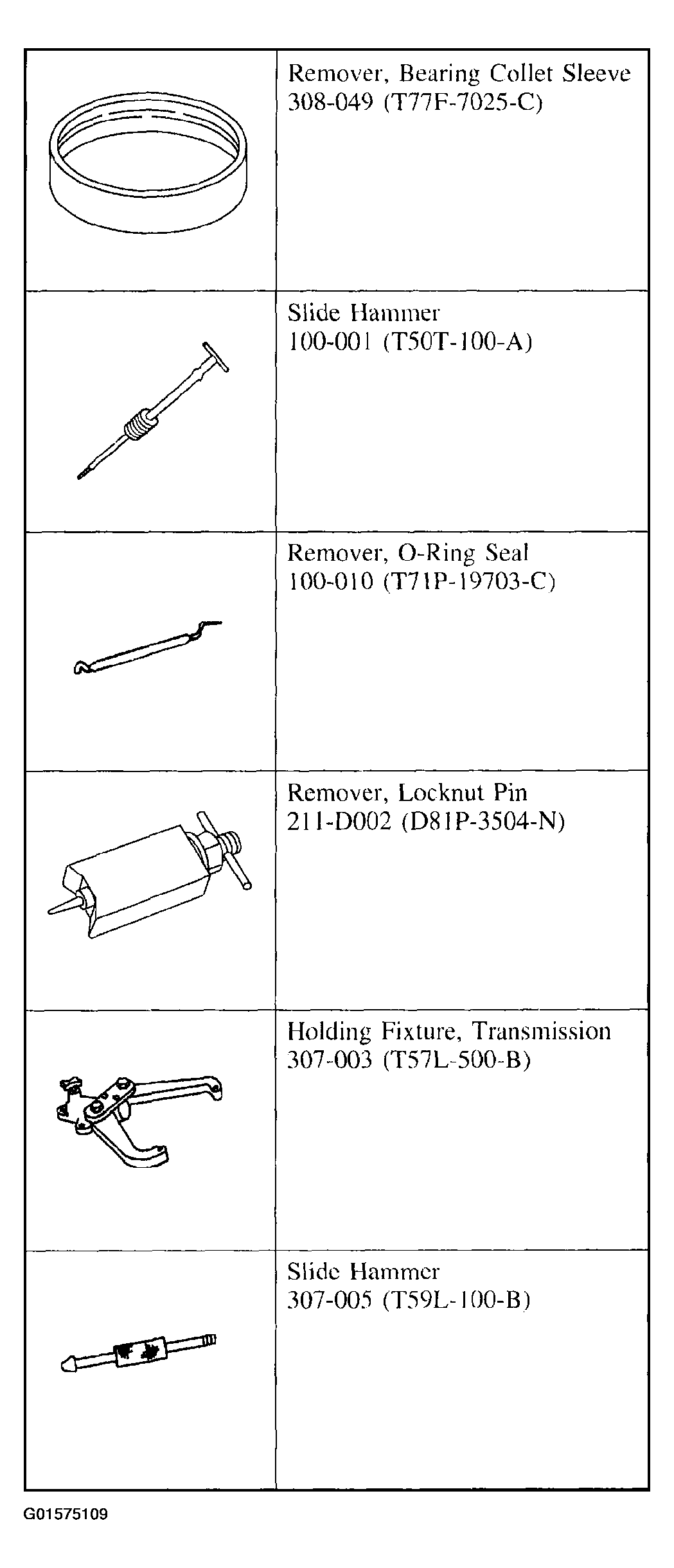

Fig 1: Identifying Special Tools (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Special Tools (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Special Tools (3 Of 3)

Courtesy of FORD MOTOR CO.

CAUTION: The torque converter is heavy. Be careful not to drop it or damage will result.
Fig 4: Installing Special Tools To Torque Converter
Courtesy of FORD MOTOR CO.
1. Using the special tools, remove the torque converter.
2. Using the special tool, install the transaxle.
   Fig 5: Identifying Special Tool On Transaxle

   Courtesy of FORD MOTOR CO.
NOTE: During installation of a new case, a new identification tag will need to be installed, use caution not to damage the tag.

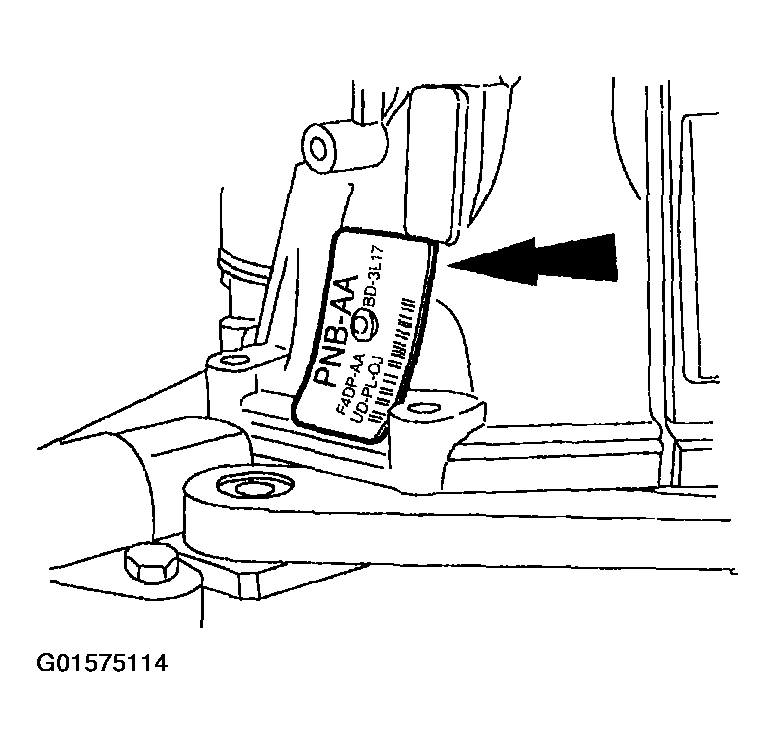

Fig 6: Identifying Identification Tag
Courtesy of FORD MOTOR CO.
3. Remove the identification tag.
4. Place a drain pan under the transaxle, rotate the transaxle to a vertical position and allow the fluid to drain. Once the fluid has drained rotate the transaxle to the horizontal position.
   Fig 7: Identifying Transaxle Drain Pan

   Courtesy of FORD MOTOR CO.
5. Remove the output shaft speed (OSS) sensor cover.
   1. Remove the connector.
   2. Remove the bolt.
   3. Remove the cover.
      Fig 8: Removing Output Shaft Speed Sensor Cover

      Courtesy of FORD MOTOR CO.

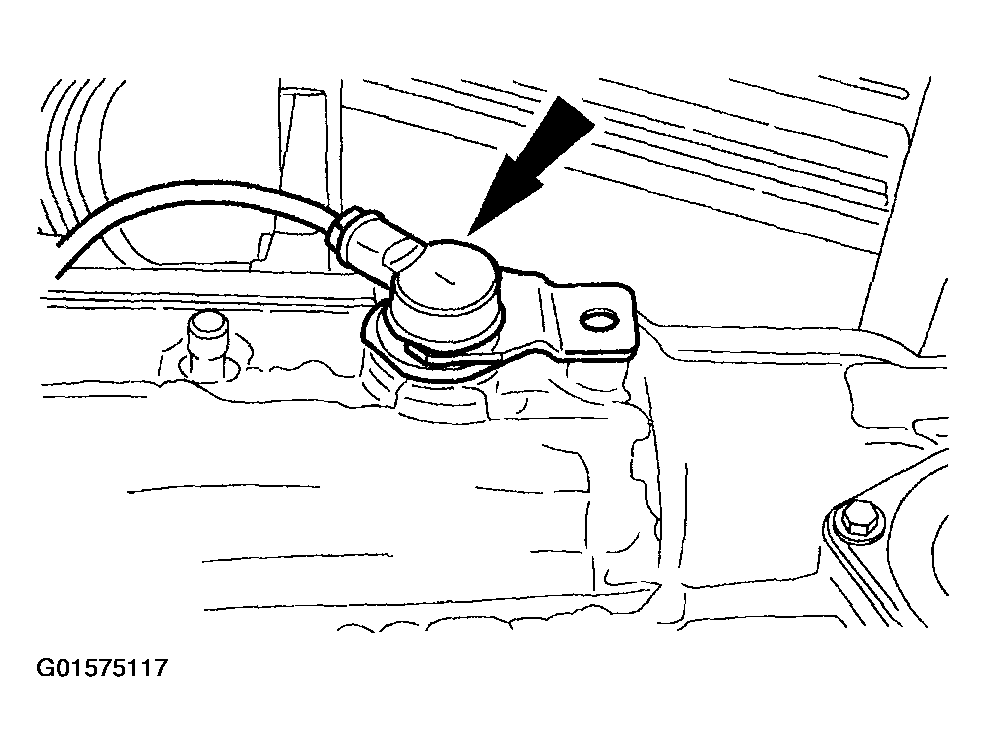

6. Remove the output shaft speed (OSS) sensor.
   Fig 9: Removing Output Shaft Speed Sensor

   Courtesy of FORD MOTOR CO.

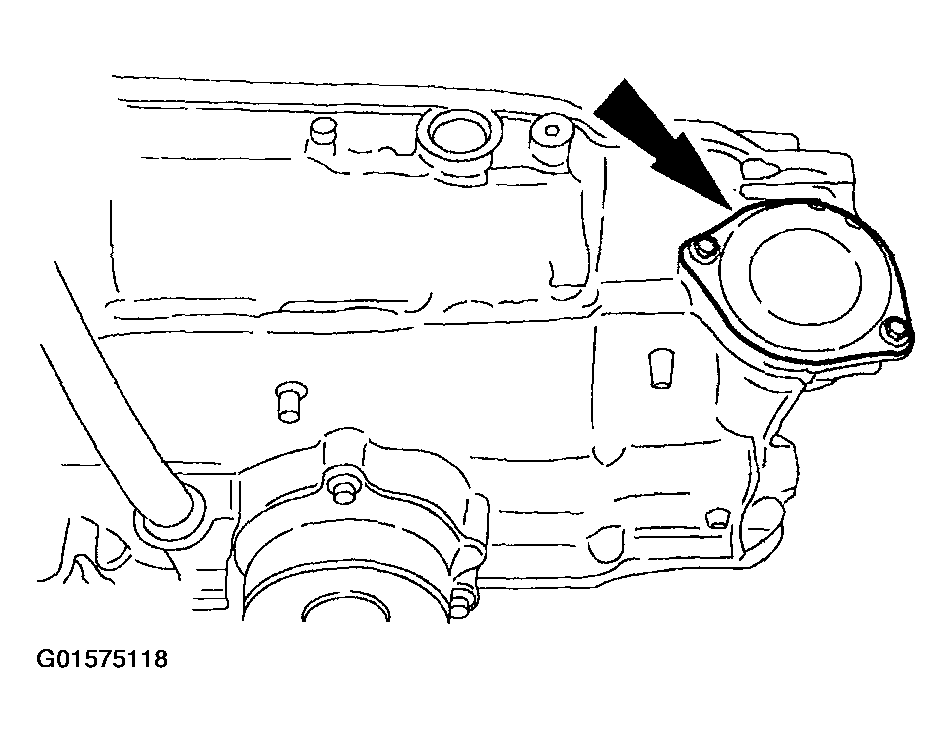

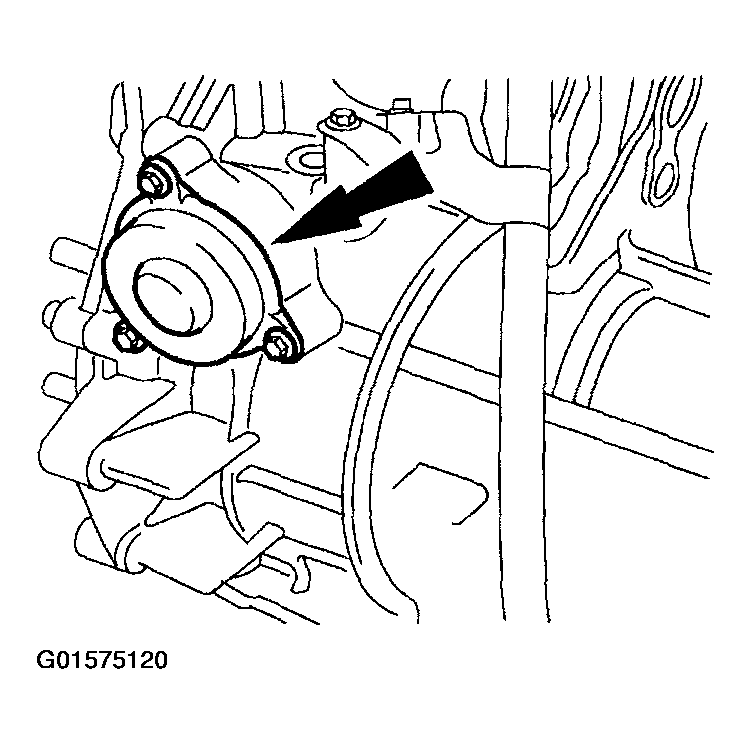

7. Remove the cover.
   Fig 10: Removing Cover

   Courtesy of FORD MOTOR CO.
8. Remove the filler tube and grommet.
   Fig 11: Removing Filler Tube And Grommet

   Courtesy of FORD MOTOR CO.
CAUTION: The overdrive band servo spring cover is under spring tension. Care must be taken during removal as components may be ejected from the case.
9. Remove the overdrive servo piston and rod.
   • Remove the bolts.
   • Remove the cover.
   • Remove the piston and rod.
     Fig 12: Removing Overdrive Servo Piston Cover

     Courtesy of FORD MOTOR CO.
10. Remove the low/intermediate servo cover.
    Fig 13: Removing Low/Intermediate Servo Cover

    Courtesy of FORD MOTOR CO.
11. Remove the manual control lever.
    Fig 14: Removing Manual Control Lever

    Courtesy of FORD MOTOR CO.

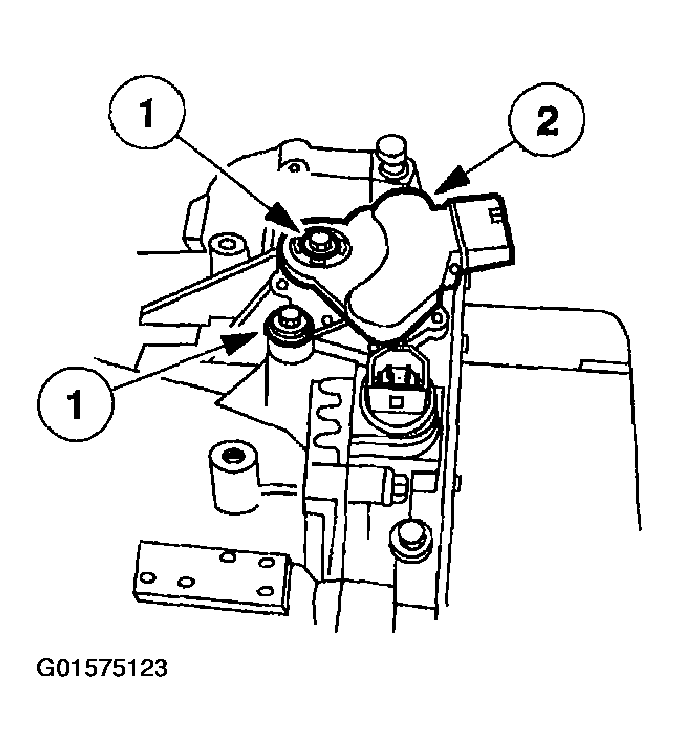

12. Remove the digital transmission range (TR) sensor.
    1. Remove the bolts.
    2. Remove the sensor.
       Fig 15: Locating Digital Transmission Range Sensor

       Courtesy of FORD MOTOR CO.
NOTE: The differential seal is of two-piece construction.

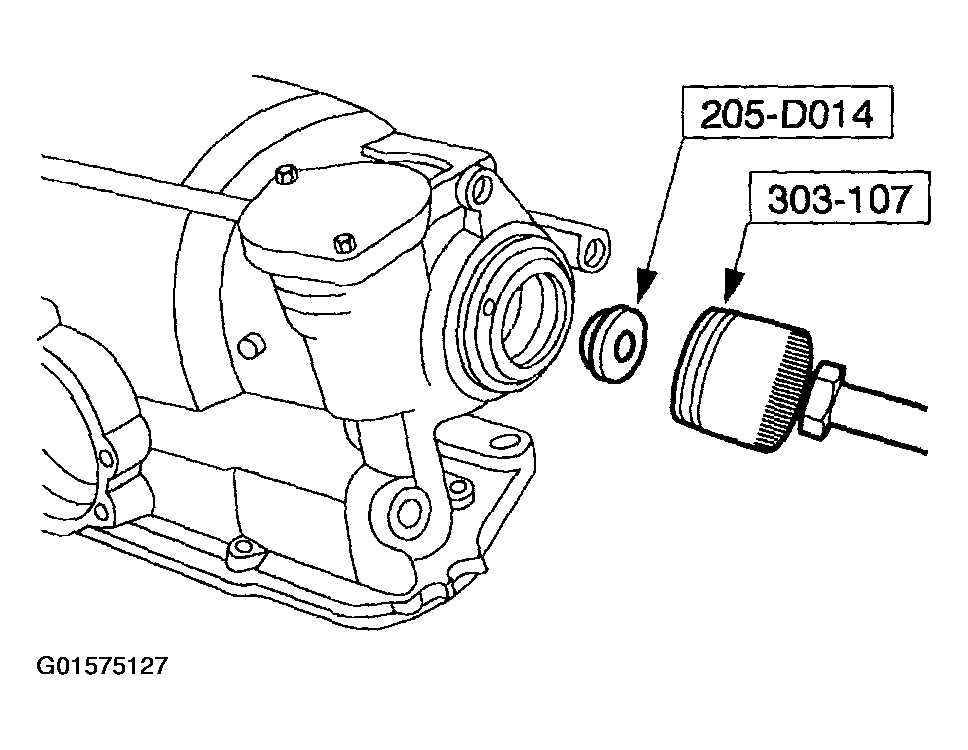

Fig 16: Installing Special Tool Into LH Differential Seal
Courtesy of FORD MOTOR CO.
13. Install the special tool into the LH differential seal.
14. Using the special tool, remove the LH differential seal metal protector.
    1. Rotate the special tool.
    2. Rotate the forcing screw while holding the special tool.
    3. Remove the metal protector from the left differential seal and remove protector from tool.
       Fig 17: Removing LH Differential Seal Metal Protector

       Courtesy of FORD MOTOR CO.
15. Using the special tool, remove the rubber portion of the LH differential seal.
    1. Install the special tool into the left differential seal and rotate the special tool.
    2. Rotate the forcing screw while holding the special tool.
    3. Remove the rubber portion of the seal.
       Fig 18: Removing Rubber Portion Of LH Differential Seal

       Courtesy of FORD MOTOR CO.
16. Install the special tools into the right differential seal.
    Fig 19: Installing Special Tools Into Right Differential Seal

    Courtesy of FORD MOTOR CO.
17. Using the special tool, remove the right differential seal metal protector.
    1. Rotate the special tool.
    2. Rotate the forcing screw while holding the special tool.
    3. Remove the metal protector.
       Fig 20: Removing Right Differential Seal Metal Protector

       Courtesy of FORD MOTOR CO.
18. Using the special tools, remove the rubber portion of the seal.
    1. Rotate the special tool.
    2. Rotate the forcing screw while holding the special tool.
    3. Remove the rubber portion of the seal.
       Fig 21: Removing Rubber Portion Of Seal

       Courtesy of FORD MOTOR CO.
19. Using the special tool, remove the converter hub seal.
    Fig 22: Removing Converter Hub Seal

    Courtesy of FORD MOTOR CO.

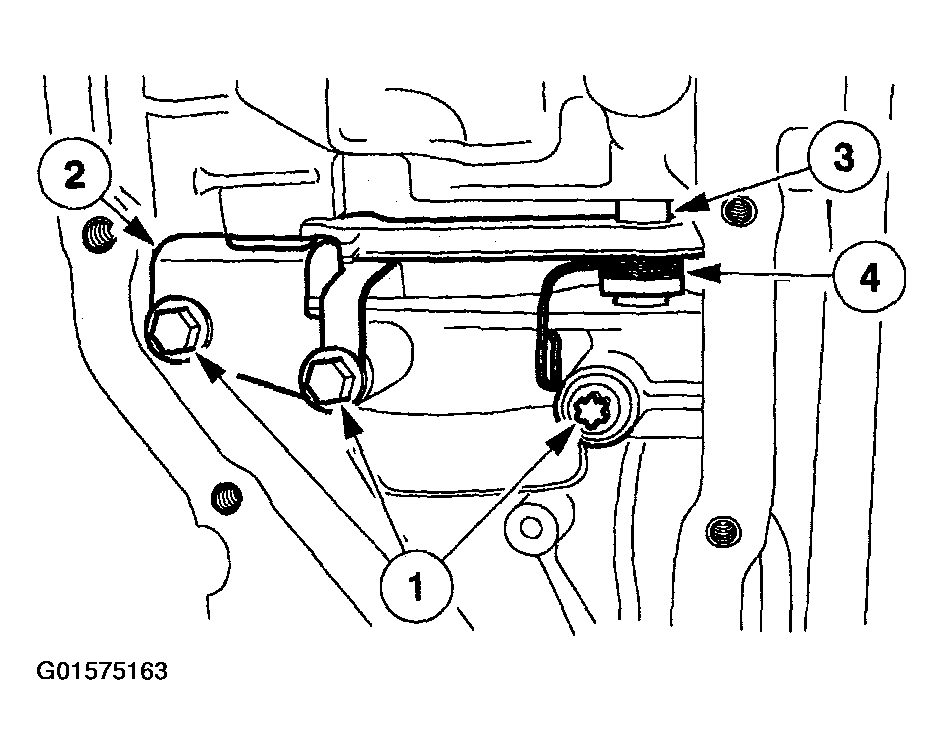

20. Remove the bolts.
    1. Remove the Torx® bolts.
    2. Remove the bolts.
       Fig 23: Identifying Torx® Bolts

       Courtesy of FORD MOTOR CO.
21. Rotate the transaxle to a vertical position.
NOTE: The main control cover gasket is reusable if not torn or damaged.
Fig 24: Identifying Main Control Cover Bolt
Courtesy of FORD MOTOR CO.

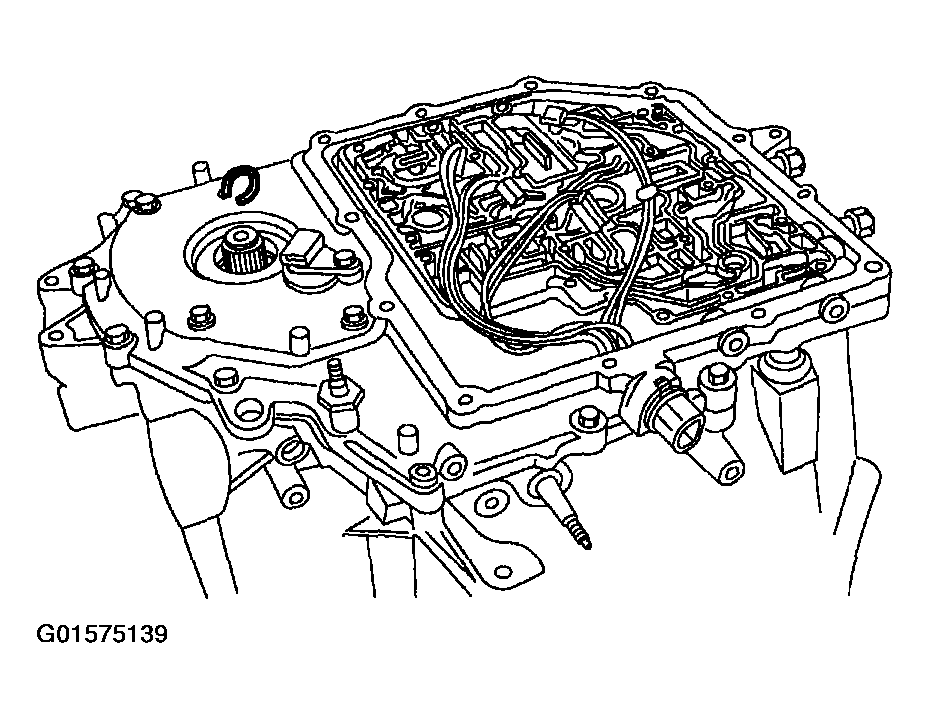

22. Remove the cover.
CAUTION: Do not pull on the wires or pry on the connectors. Damage to the connector will result.
Fig 25: Identifying Locking Tab And Electrical Connectors
Courtesy of FORD MOTOR CO.
23. Lift the locking tab and disconnect the electrical connectors.
NOTE: The manual valve should be inserted completely into the main control valve body.
Fig 26: Rotating Manual Control Lever To Low Detent
Courtesy of FORD MOTOR CO.
24. Rotate the manual control lever to the low detent.
CAUTION: Do not remove the two bolts that hold the pump assembly and main control valve body together as the pump assembly may fall from the main control valve body and become damaged.
Fig 27: Identifying Pump Assembly Bolt
Courtesy of FORD MOTOR CO.
25. Remove the bolts. Note the size and location of the bolts.
26. Remove the main control valve body.
    • Remove the pump assembly and main control valve body.
    • Rotate the main control valve body while lifting to remove.
      Fig 28: Removing Main Control Valve Body

      Courtesy of FORD MOTOR CO.
27. Disconnect the manual control valve actuating rod.
    Fig 29: Disconnecting Manual Control Valve Actuating Rod

    Courtesy of FORD MOTOR CO.
28. Remove the pump shaft.
    Fig 30: Removing Pump Shaft

    Courtesy of FORD MOTOR CO.
29. Remove the output shaft circlip.
    Fig 31: Removing Output Shaft Circlip

    Courtesy of FORD MOTOR CO.
30. Remove the turbine shaft speed (TSS) sensor.
    Fig 32: Removing Turbine Shaft Speed Sensor

    Courtesy of FORD MOTOR CO.

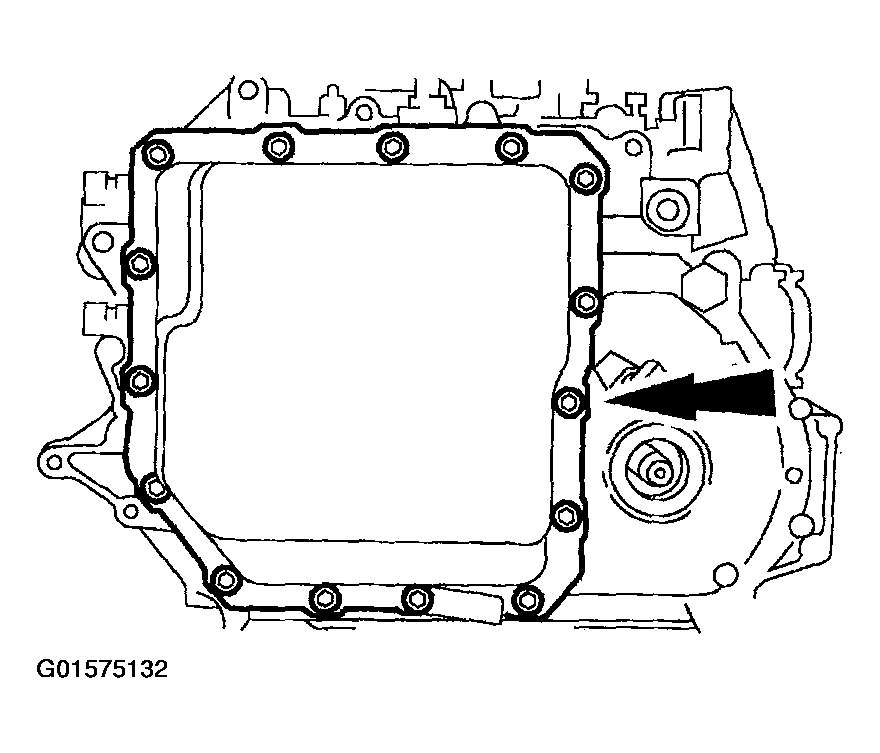

NOTE: The transaxle pan gasket is reusable if not torn or damaged.
Fig 33: Identifying Fluid Pan
Courtesy of FORD MOTOR CO.
31. Remove the fluid pan.
32. Remove the magnet.
    Fig 34: Identifying Magnet

    Courtesy of FORD MOTOR CO.

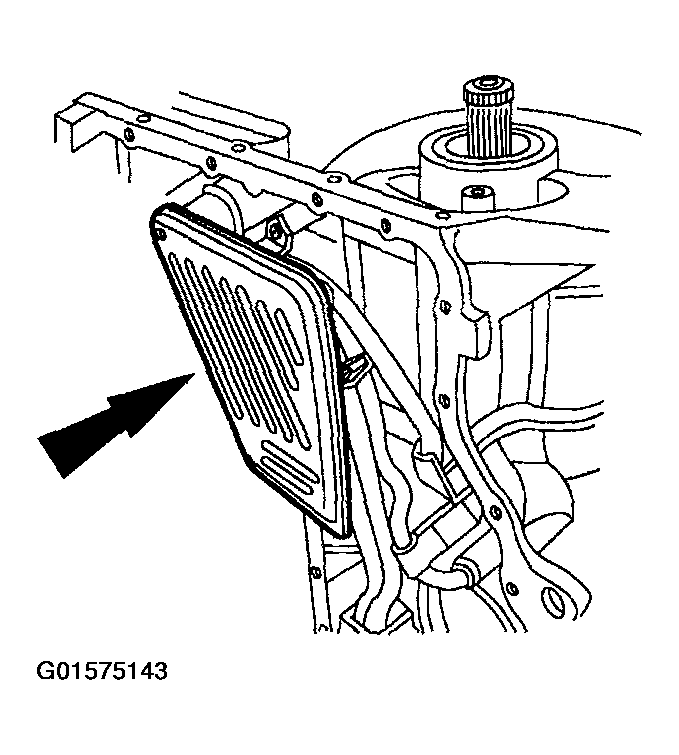

33. Remove the filter and the seal.
    Fig 35: Identifying Filter And Seal

    Courtesy of FORD MOTOR CO.

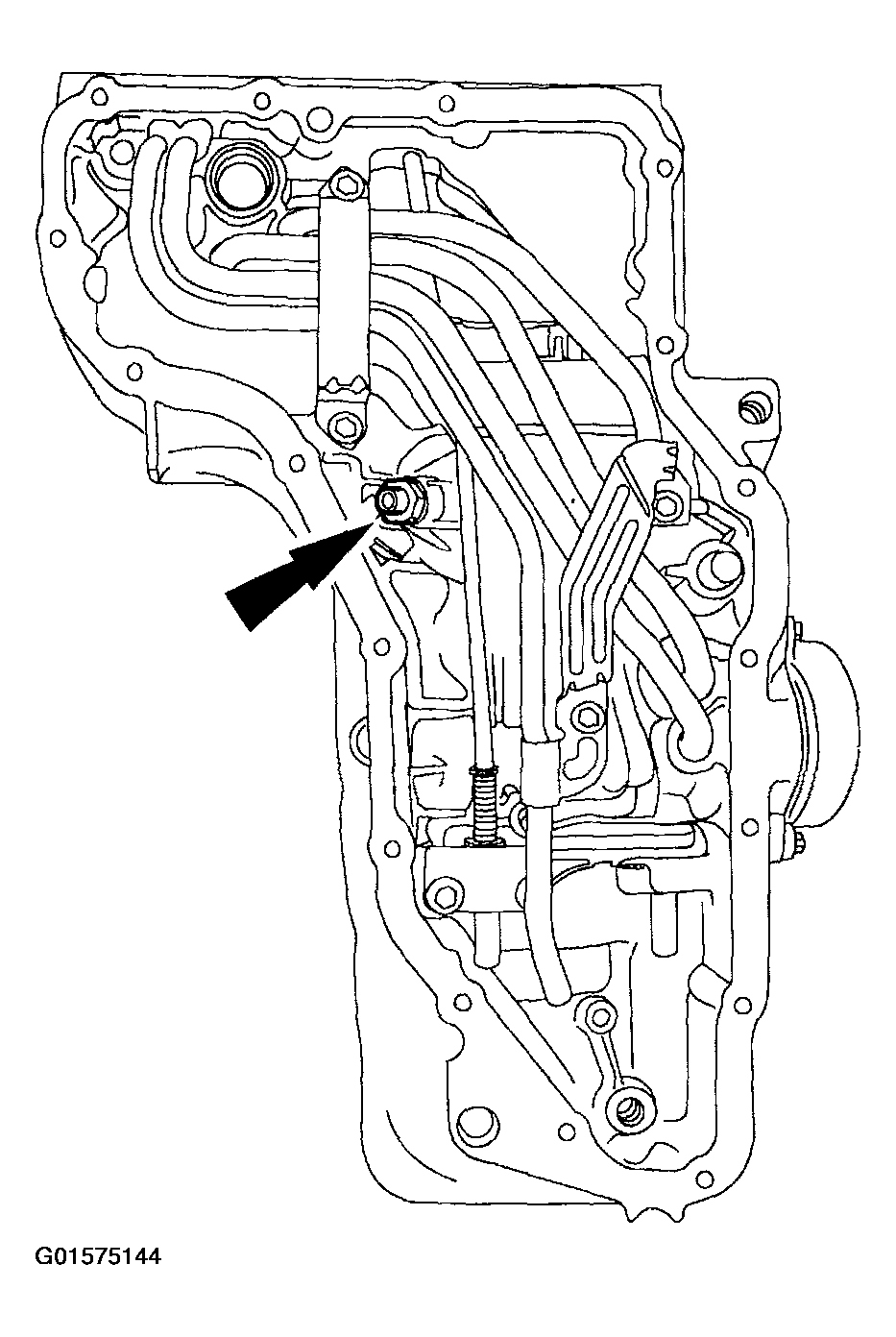

34. Loosen the nut and remove the reverse clutch anchor pin.
    Fig 36: Removing Reverse Clutch Anchor Pin

    Courtesy of FORD MOTOR CO.
CAUTION: The chain cover is under spring pressure. Care must be taken to prevent internal parts from being ejected.
NOTE: Mark bolt size and location for assembly.
Fig 37: Identifying Chain Cover Bolts
Courtesy of FORD MOTOR CO.
35. Remove the bolts starting from the inside and work out.
NOTE: The plastic thrust washers No. 1 and 3 may stick to the cover or to the sprockets.
Fig 38: Removing Chain Cover And Gasket
Courtesy of FORD MOTOR CO.
36. Remove the chain cover and gasket.
37. Tag and mark the location of the accumulator springs.
    1. Remove the drive shift accumulator spring.
    2. Remove the 3-4 accumulator spring.
    3. Remove the 1-2 accumulator spring.
       Fig 39: Removing Accumulator Springs

       Courtesy of FORD MOTOR CO.
CAUTION: Be careful not to damage or bend the tabs on the exciter ring. If bent, the TSS sensor will not operate.
Fig 40: Removing Drive Sprocket, Driven Sprocket, And Drive Chain
Courtesy of FORD MOTOR CO.
38. Remove the drive sprocket, driven sprocket, and drive chain as an assembly.
NOTE: The thrust washers may remain on the sprockets.
39. Remove the thrust washers.
    1. Remove the No. 2 thrust washer.
    2. Remove the No. 4 thrust washer.
       Fig 41: Removing Thrust Washers

       Courtesy of FORD MOTOR CO.
40. Inspect the bearing for damage. Install a new bearing if necessary.
    Fig 42: Inspecting Bearing

    Courtesy of FORD MOTOR CO.
41. Using the special tools, remove the bearing.
    Fig 43: Removing Bearing

    Courtesy of FORD MOTOR CO.
42. Using the special tool, remove the roll pin.
    Fig 44: Removing Roll Pin

    Courtesy of FORD MOTOR CO.
CAUTION: Do not damage the machined surface of the case.
NOTE: The position of the manual valve detent lever is different than past models. The roll pin and shoulder point toward the driven sprocket support. Note the position of the lever during disassembly for correct assembly.
Fig 45: Removing Remaining Roll Pins
Courtesy of FORD MOTOR CO.
43. Remove the remaining roll pins.
NOTE: The position of the manual valve detent lever is different than past models. The roll pin and shoulder point toward the driven sprocket support. Note the position of the lever during disassembly for correct assembly.
Fig 46: Removing Manual Control Lever Shaft
Courtesy of FORD MOTOR CO.
44. Remove the manual control lever shaft.
45. Remove the parking lever actuating rod.
    Fig 47: Removing Parking Lever Actuating Rod

    Courtesy of FORD MOTOR CO.
46. Using a screwdriver remove the manual control lever shaft seal.
    Fig 48: Identifying Manual Control Lever Shaft Seal

    Courtesy of FORD MOTOR CO.
NOTE: The No. 5 thrust washer may stick to the drive sprocket support.
Fig 49: Removing Drive Sprocket Support And Thrust Washer
Courtesy of FORD MOTOR CO.
47. Remove the drive sprocket support and the No. 5 thrust washer.
NOTE: The No. 8 thrust washer and the No. 9 thrust bearing may remain on the drive sprocket support and the driven sprocket.
Fig 50: Removing Rear Thrust Washer
Courtesy of FORD MOTOR CO.
48. Remove the No. 8 driven sprocket support selective fit rear thrust washer and the No. 9 needle bearing.
49. Remove the plastic overdrive band retainer.
    Fig 51: Removing Plastic Overdrive Band Retainer

    Courtesy of FORD MOTOR CO.

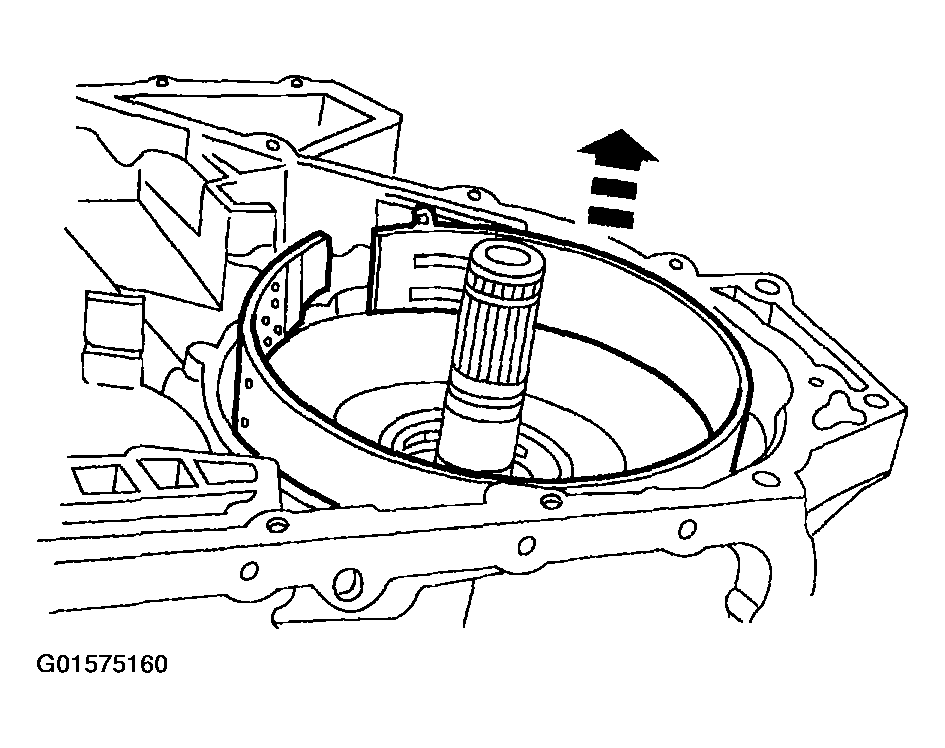

50. Remove the overdrive band.
    Fig 52: Removing Overdrive Band

    Courtesy of FORD MOTOR CO.
51. Remove the bolts and the lube tube brackets.
    Fig 53: Removing Bolts And Lube Tube Brackets

    Courtesy of FORD MOTOR CO.
52. Using the special tool, remove the lube tubes.
    Fig 54: Removing Lube Tubes

    Courtesy of FORD MOTOR CO.
53. Remove the park pawl assembly.
    1. Remove the bolts.
    2. Remove the park pawl abutment.
    3. Remove the park pawl shaft.
    4. Remove the park pawl return spring.
       Fig 55: Removing Park Pawl Assembly

       Courtesy of FORD MOTOR CO.
NOTE: Do not overtighten the handle of the tool. Place two 3/8-inch washers between the handle and the notched block.
Fig 56: Removing Front Sun And Shell Assembly
Courtesy of FORD MOTOR CO.
54. Using the special tools, remove the front sun and shell assembly.
55. Using the special tool, remove the reverse clutch and planet assembly.
    Fig 57: Removing Reverse Clutch And Planet Assembly

    Courtesy of FORD MOTOR CO.
56. Remove the front planet and rear ring gear.
    Fig 58: Removing Front Planet And Rear Ring Gear

    Courtesy of FORD MOTOR CO.
57. Remove the rear sun gear, drum, and the No. 15 rear sun gear thrust bearing and race.
    Fig 59: Removing Rear Sun Gear, Drum, And Rear Sun Gear Thrust Bearing And Race

    Courtesy of FORD MOTOR CO.

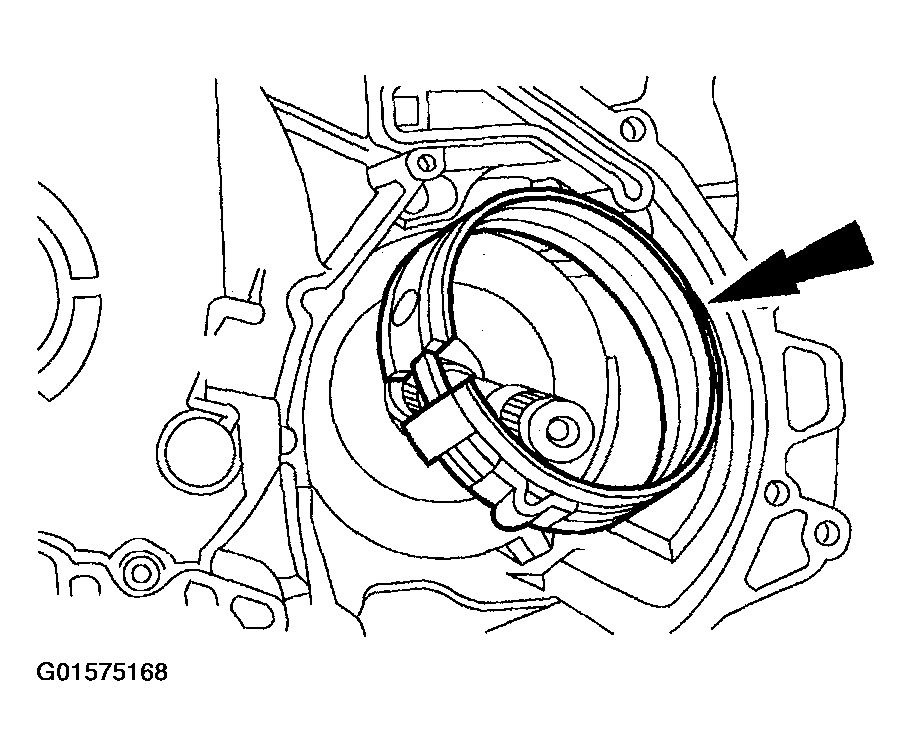

58. Remove the low and intermediate band.
    Fig 60: Removing Low And Intermediate Band

    Courtesy of FORD MOTOR CO.
CAUTION: Do not damage any machined surfaces.
Fig 61: Removing Rear Support Snap Ring
Courtesy of FORD MOTOR CO.
59. Using a screwdriver, remove the rear support snap ring through the side of the case.
60. Remove the final drive/differential assembly.
    Fig 62: Removing Final Drive/Differential Assembly

    Courtesy of FORD MOTOR CO.
NOTE: The differential carrier thrust washer may remain on the differential assembly.
61. Remove the differential carrier thrust washers.
    • Remove the No. 18 differential carrier thrust washer.
    • Remove the No. 19 differential carrier thrust bearing and race.
      Fig 63: Removing Differential Carrier Thrust Washers

      Courtesy of FORD MOTOR CO.
62. Remove the final drive ring gear.
    Fig 64: Removing Final Drive Ring Gear

    Courtesy of FORD MOTOR CO.
NOTE: The following procedures are done only if installing a new case.
Fig 65: Identifying Stator Support Assembly Bolts
Courtesy of FORD MOTOR CO.
63. Remove the bolts.
64. Remove the stator support assembly.
    Fig 66: Removing Stator Support Assembly

    Courtesy of FORD MOTOR CO.
