Differential Fluid Seals: Installation

  1. Using the special tool, install the LH differential seal.

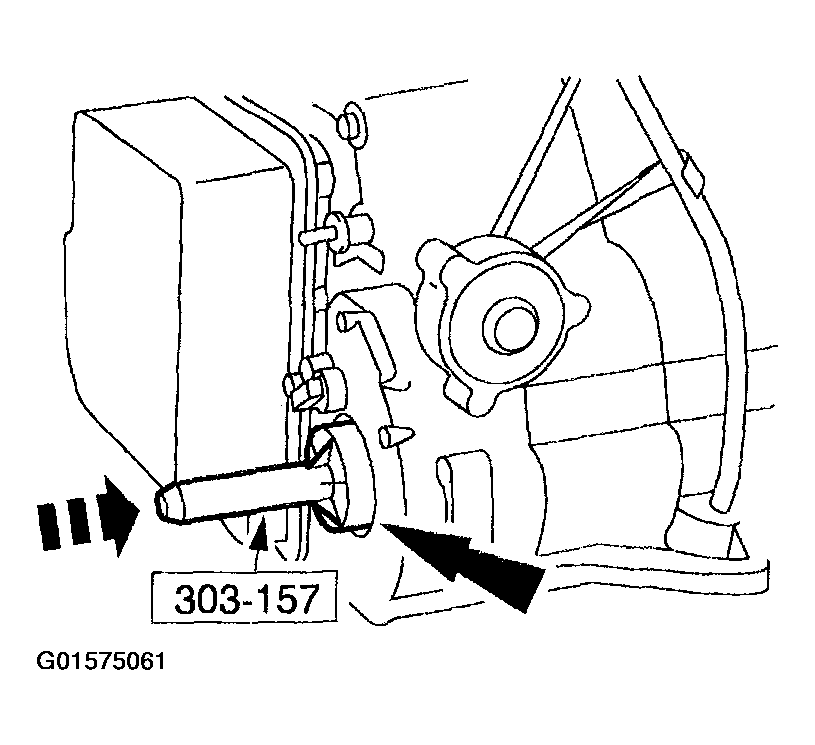

    Fig 1: Installing LH Differential Seal
    G01575061Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the RH seal.

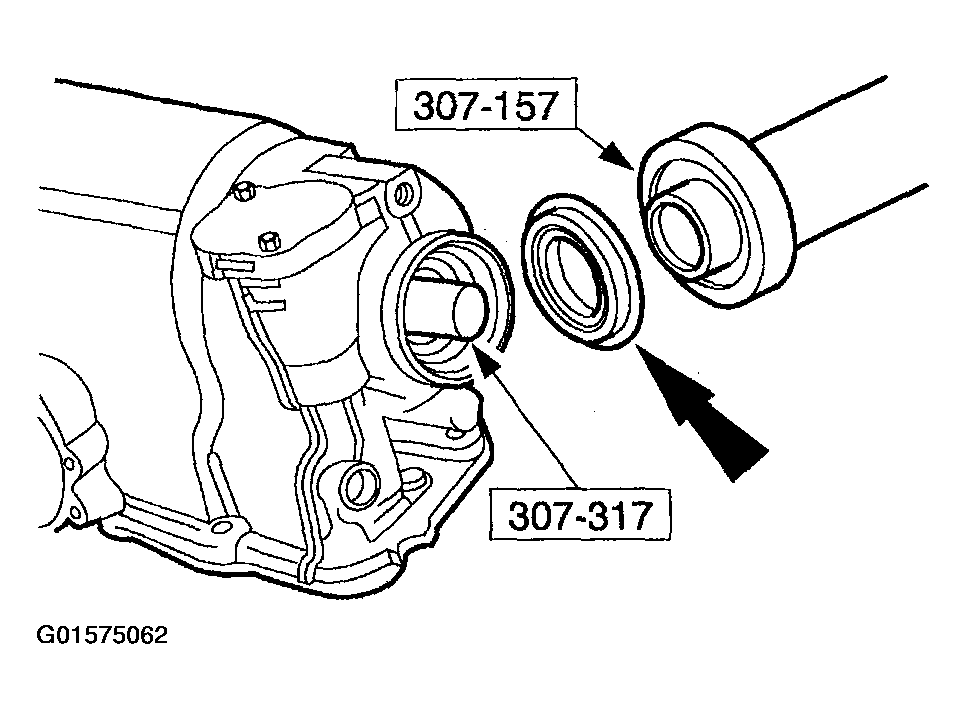

    Fig 2: Installing RH Seal
    G01575062Courtesy of FORD MOTOR CO.
  3. Install the halfshafts.
  4. Install the front wheels
  5. Lower the vehicle.
