Selector Lever Cable Adjustment - Floor Shift

NOTE: The shift control cable adjustment procedure must be performed in the order shown.

Position the transaxle range selector lever in OVERDRIVE.
Loosen the manual control lever-to-shift control cable nut.

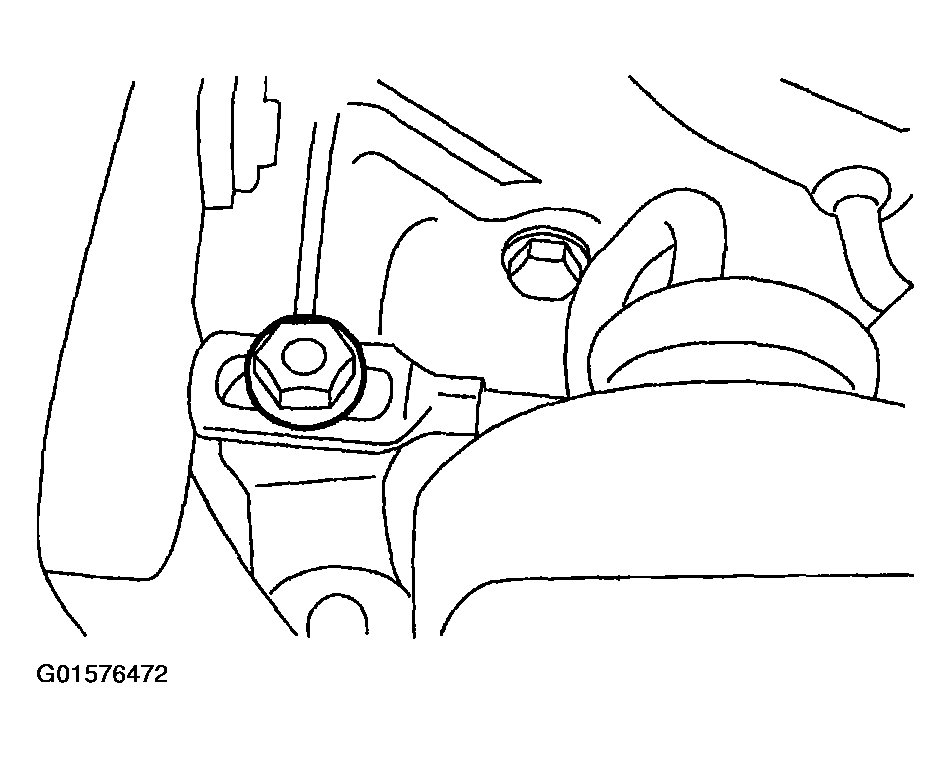

Fig 1: Loosening Manual Control Lever-To-Shift Control Cable Nut
Courtesy of FORD MOTOR CO.
Position the manual control lever in OVERDRIVE. Tighten the nut.

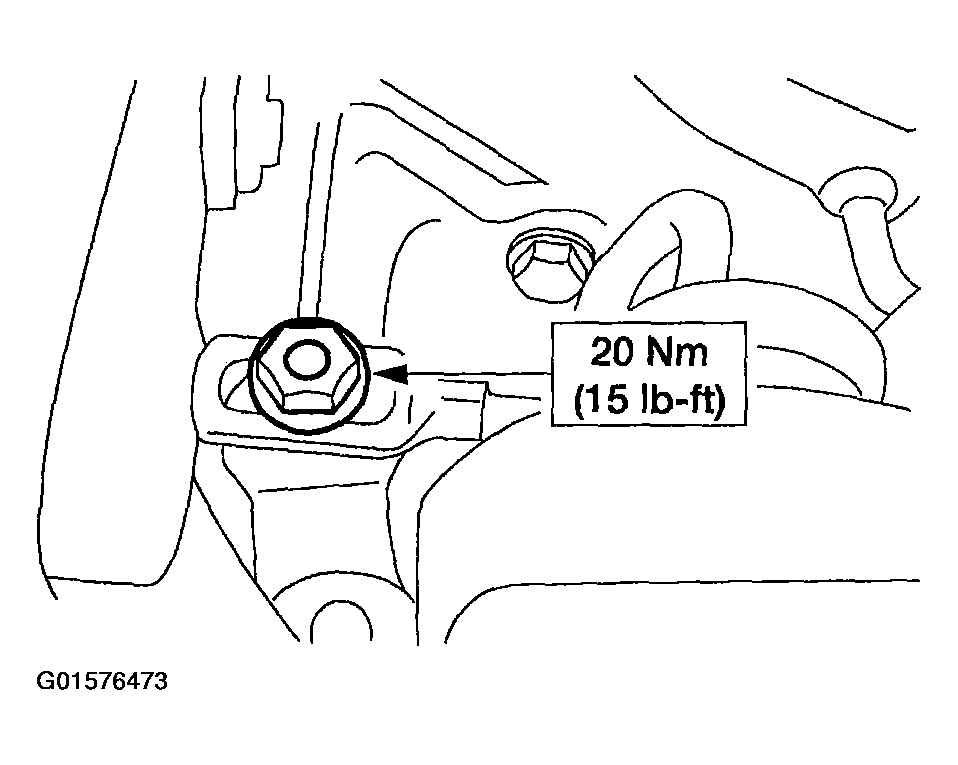

Fig 2: Tightening Nut
Courtesy of FORD MOTOR CO.
Check the operation of the transaxle in each transaxle range selector lever position.
