Torque Specifications

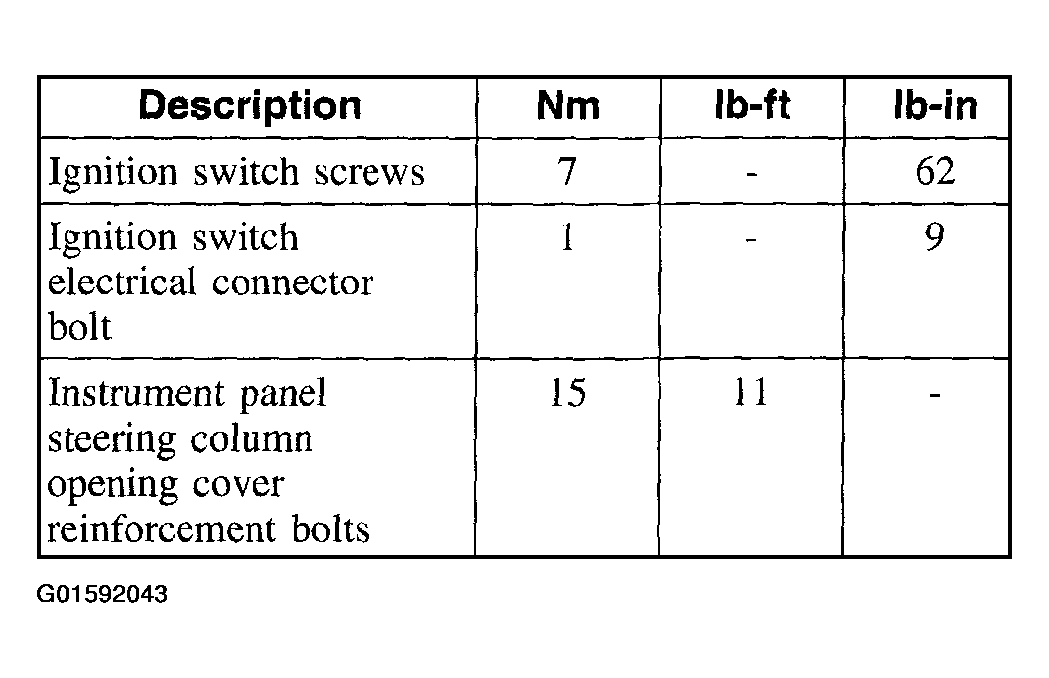

Fig 1: Steering Column Switches Torque Specification (1 Of 2)
G01592043Courtesy of FORD MOTOR CO.
Fig 2: Steering Column Switches Torque Specification (2 Of 2)
G01592044Courtesy of FORD MOTOR CO.
