Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function

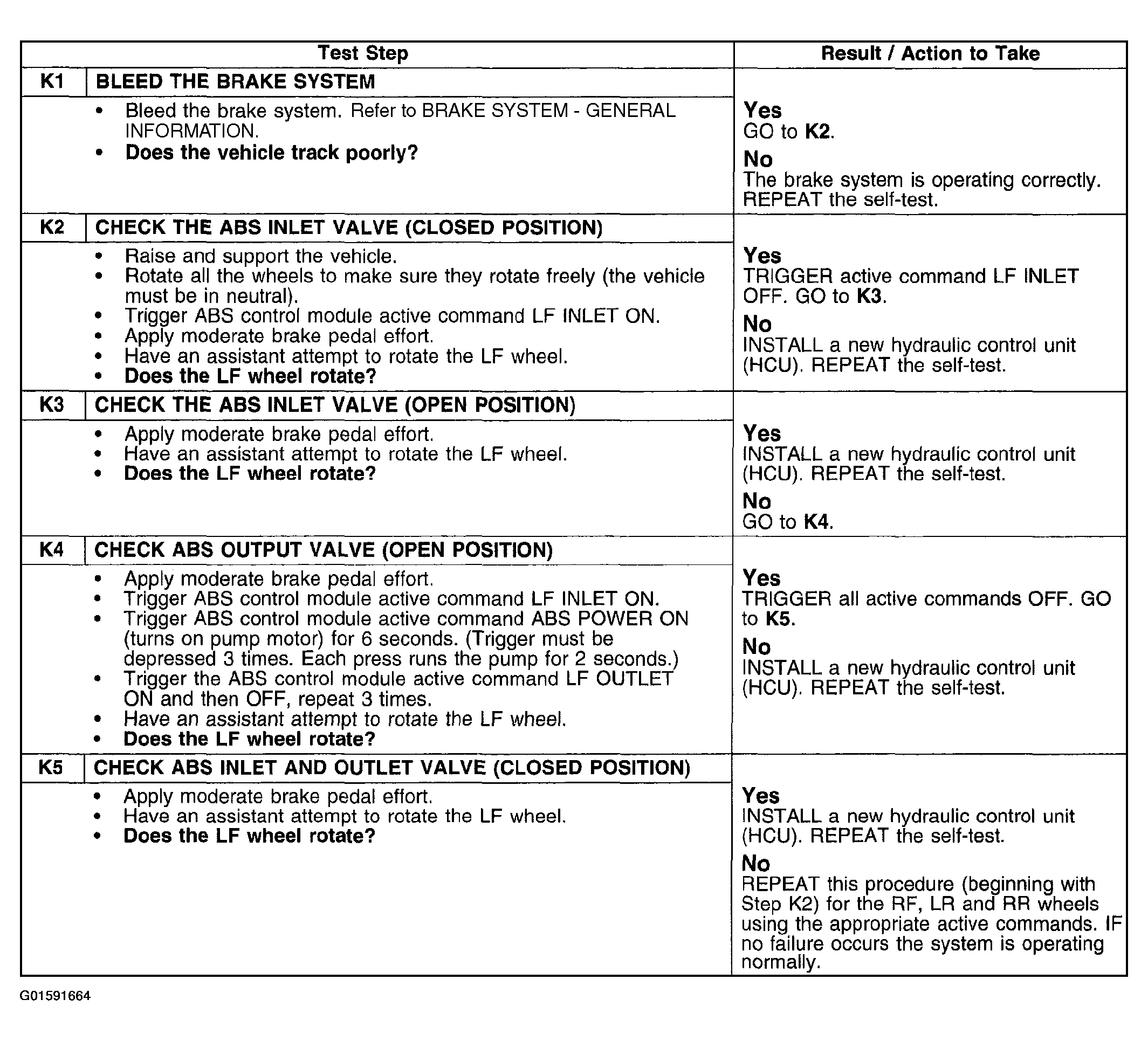

Fig 1: Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function (Steps K1-K5)
G01591664Courtesy of FORD MOTOR CO.
