Pinpoint Test B: High Engine Idle Speed

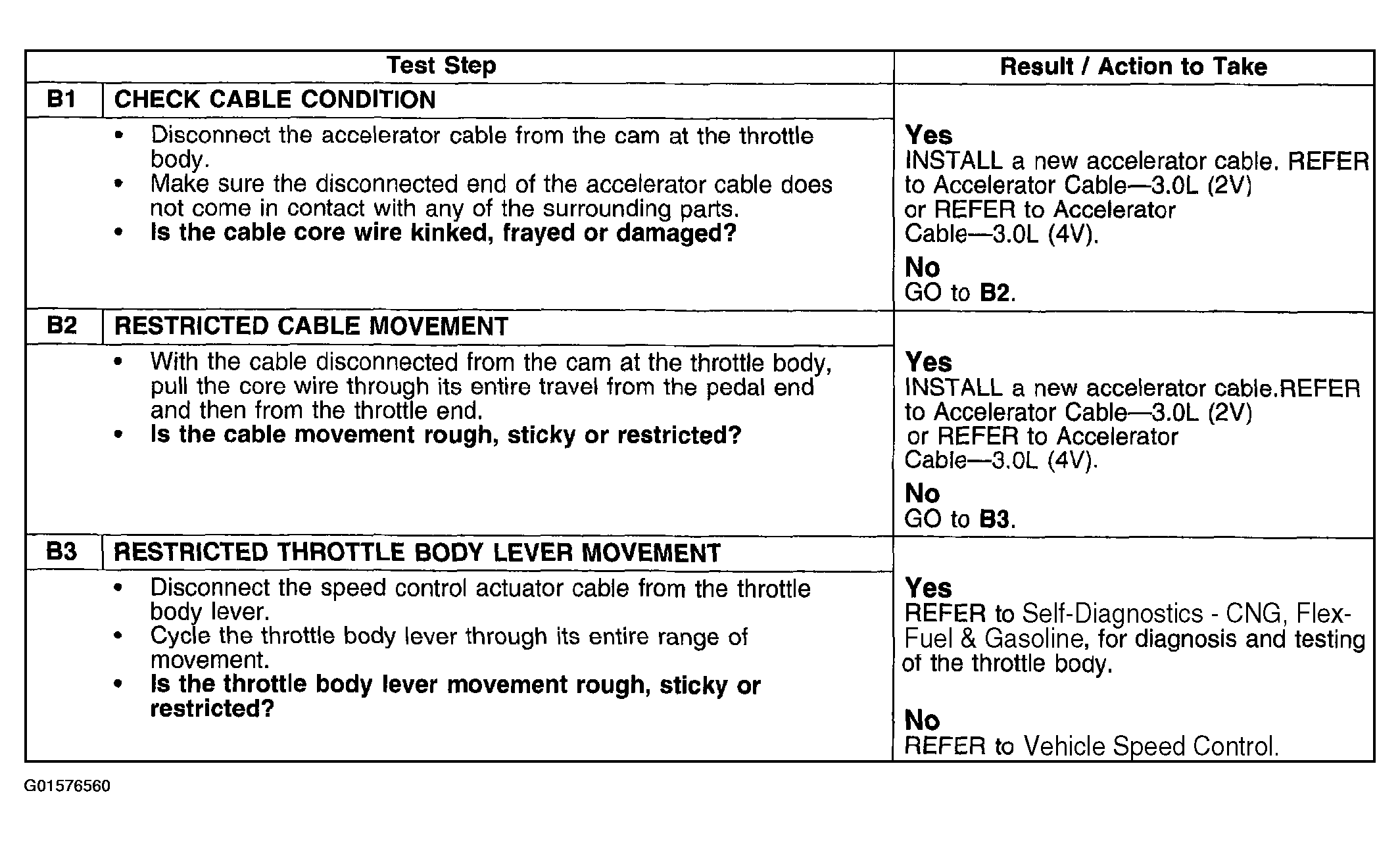

Fig 1: Pinpoint Test B: High Engine Idle Speed (Steps B1-B3)
G01576560Courtesy of FORD MOTOR CO.
