Main Components And Functions

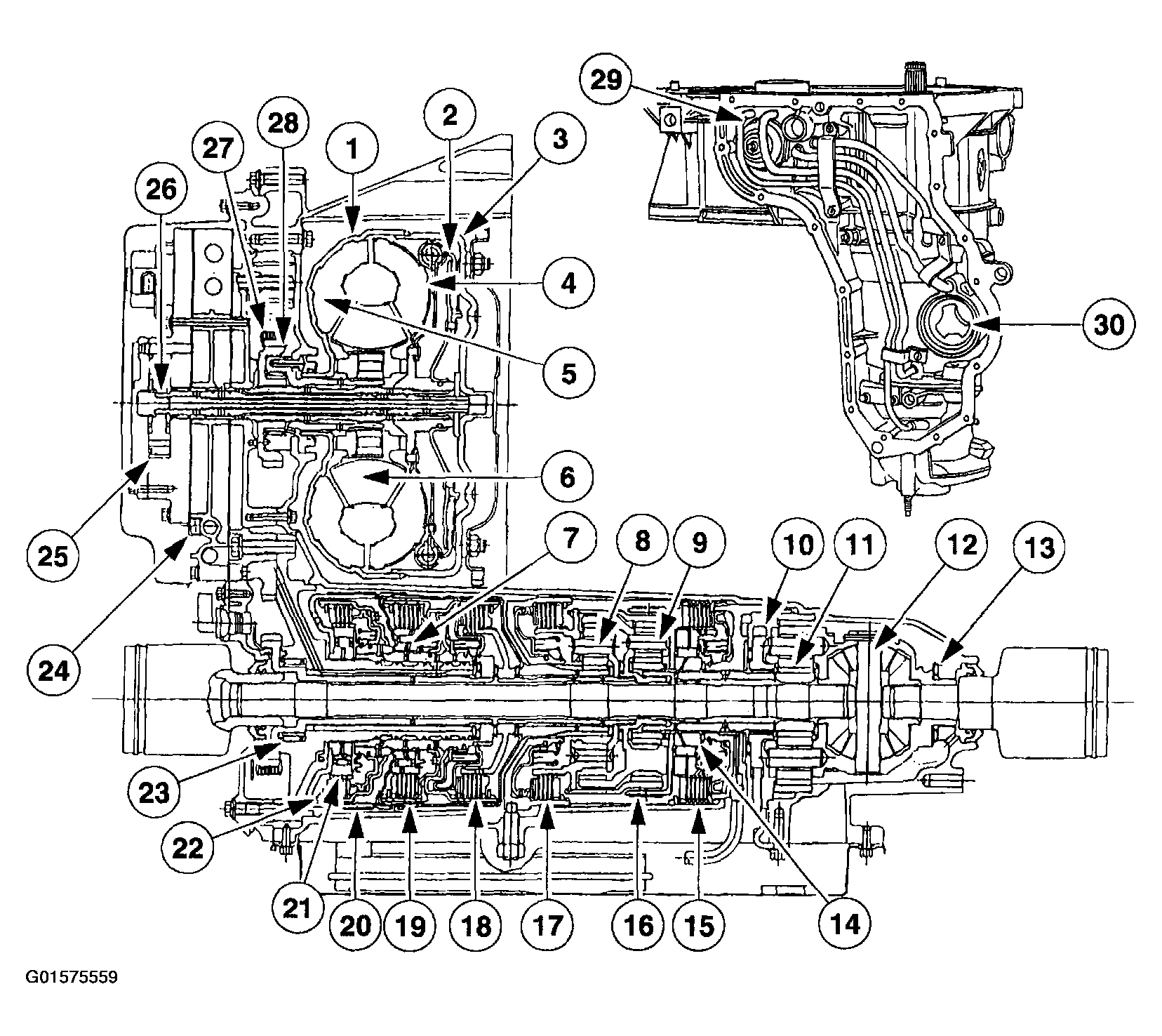

Fig 1: Identifying Main Components And Functions (1 Of 2)
G01575559Courtesy of FORD MOTOR CO.

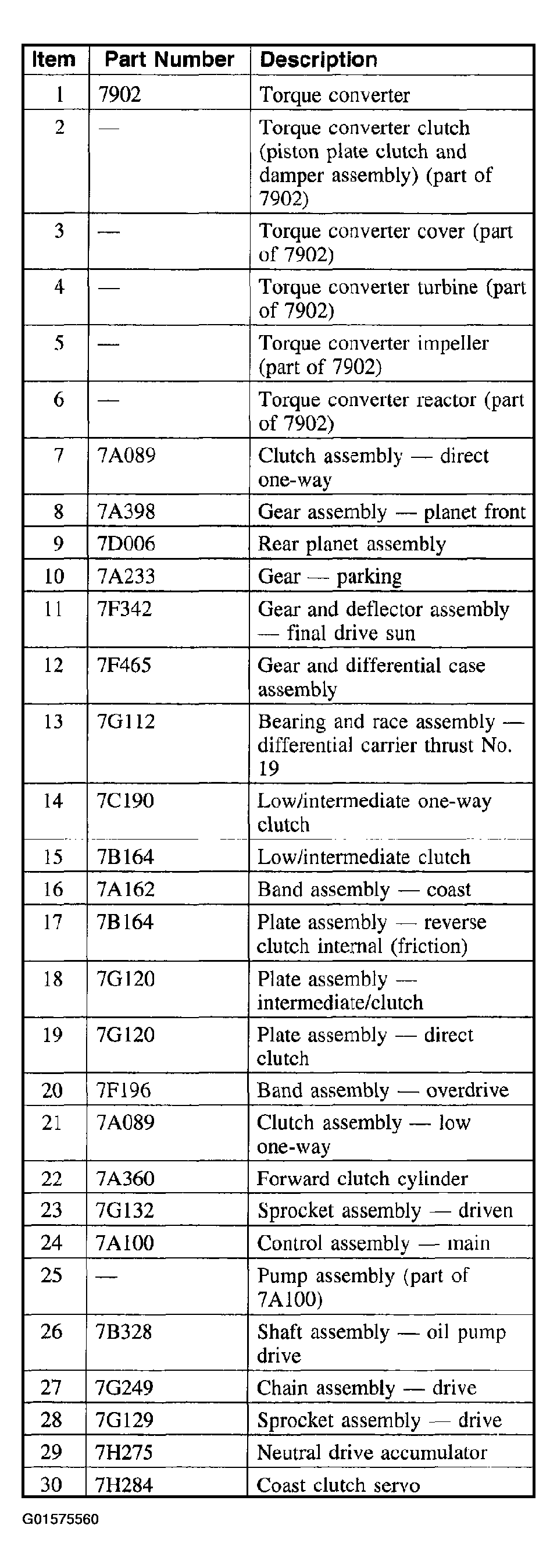

Fig 2: Identifying Main Components And Functions (2 Of 2)
G01575560Courtesy of FORD MOTOR CO.
