Main Control Valve Body: Assembly

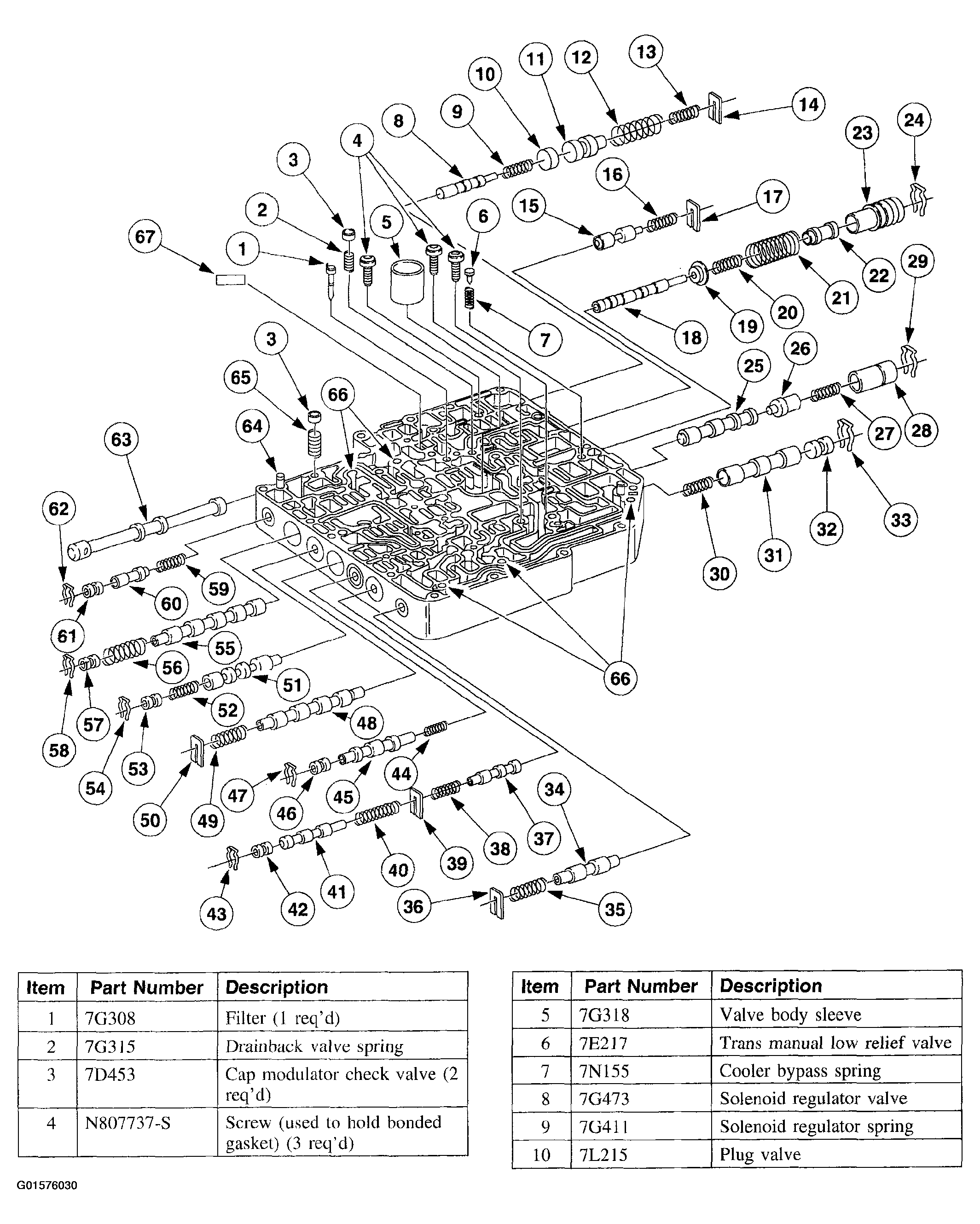

Fig 1: Exploded View Of AX4N Main Control Valve Body Assembly (1 Of 2)

Courtesy of FORD MOTOR CO.

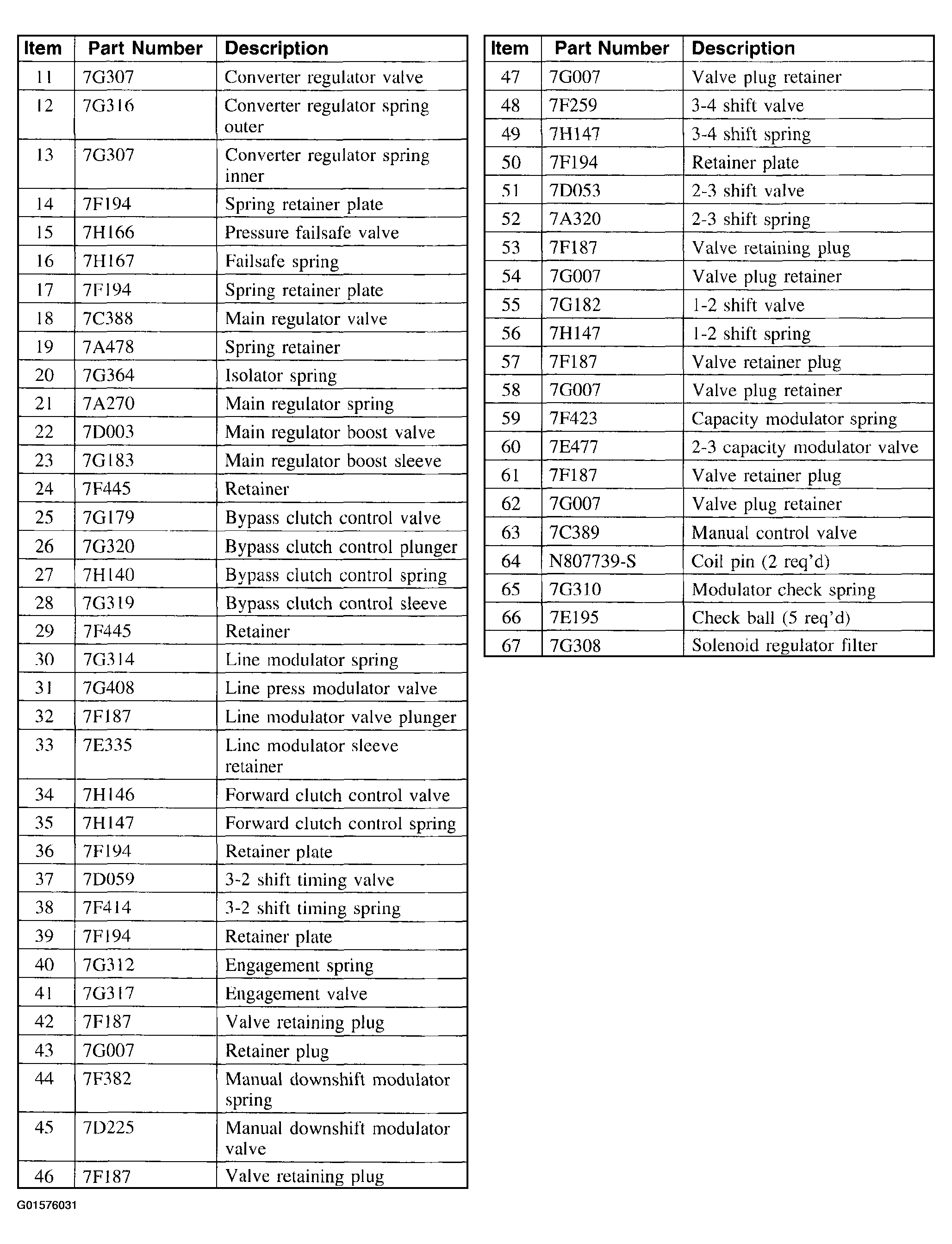

Fig 2: Exploded View Of AX4N Main Control Valve Body Assembly (2 Of 2)

Courtesy of FORD MOTOR CO.

CAUTION: Do not stone or polish any of the valves. If the valves do not move freely during assembly replacement of the valve body is necessary.
1. Install the valves and springs.
2. Install the check balls.

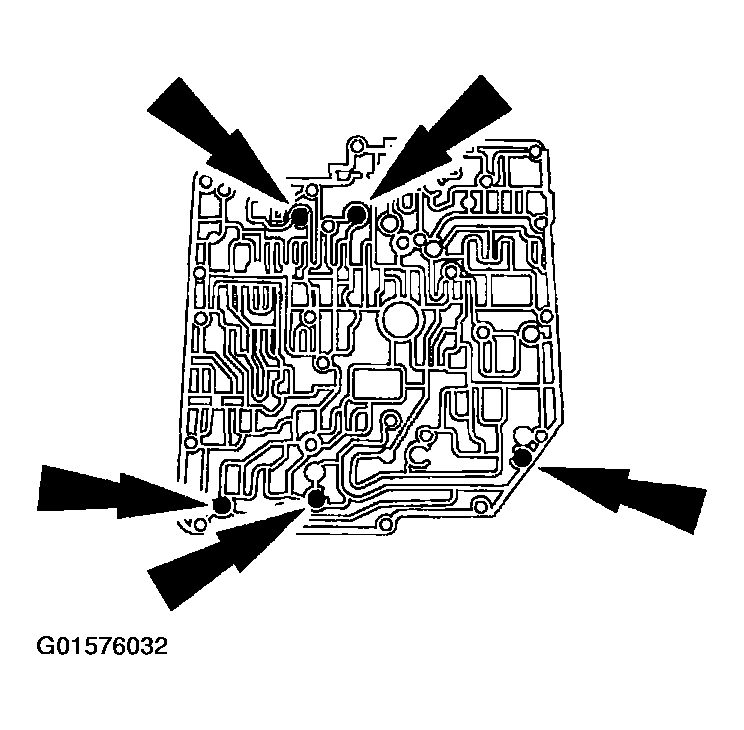

   Fig 3: Installing Check Balls

   Courtesy of FORD MOTOR CO.
3. Install the relief valves and springs.
   1. Install the modulator check valve and spring.
   2. Install the manual low relief valve and drain back spring.
   3. Install the manual low relief valve and cooler bypass spring.

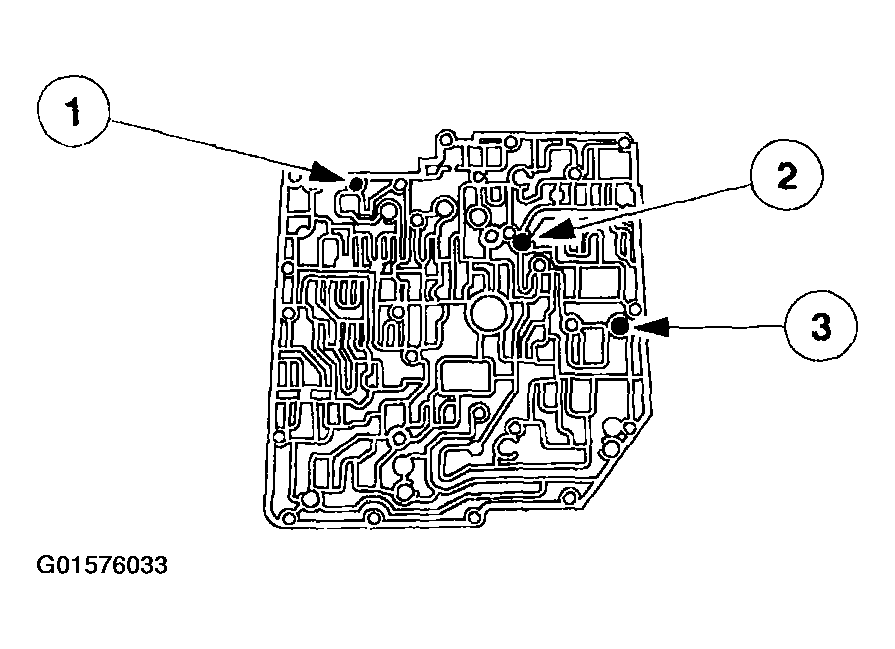

      Fig 4: Installing Manual Low Relief Valve And Cooler Bypass Spring

      Courtesy of FORD MOTOR CO.
4. Install new filters.
   1. Install a new solenoid regulator filter.
   2. Install a new torque converter clutch filter.

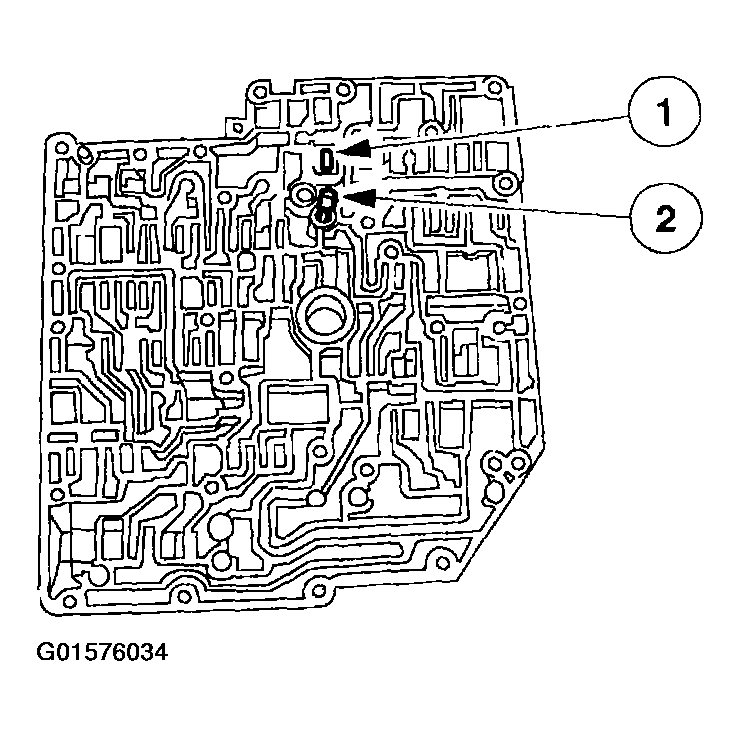

      Fig 5: Installing Torque Converter Clutch Filter

      Courtesy of FORD MOTOR CO.
CAUTION: Verify correct alignment of the relief and check valves to the separator plate before tightening the bolts. If the relief and check valves are incorrectly installed the transaxle will not operate correctly.
NOTE: The new gaskets are bonded to the separator plate.

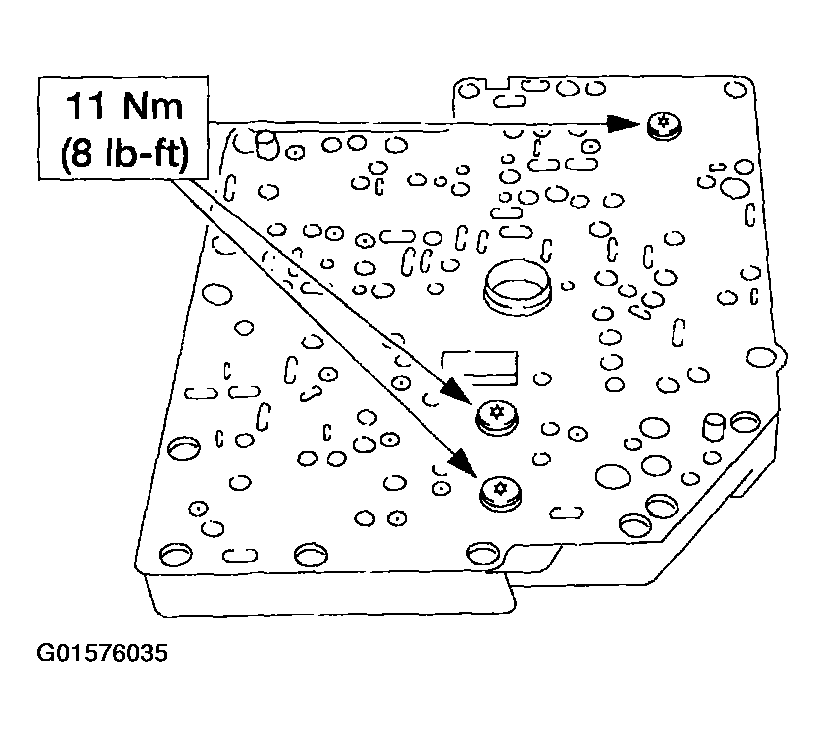

Fig 6: Installing Valve Body Separator Plate With Bonded Gasket And Bolts
Courtesy of FORD MOTOR CO.
5. Install new valve body separator plate with bonded gasket and bolts.
