Sun And Shell Assembly - Disassembly: Notes

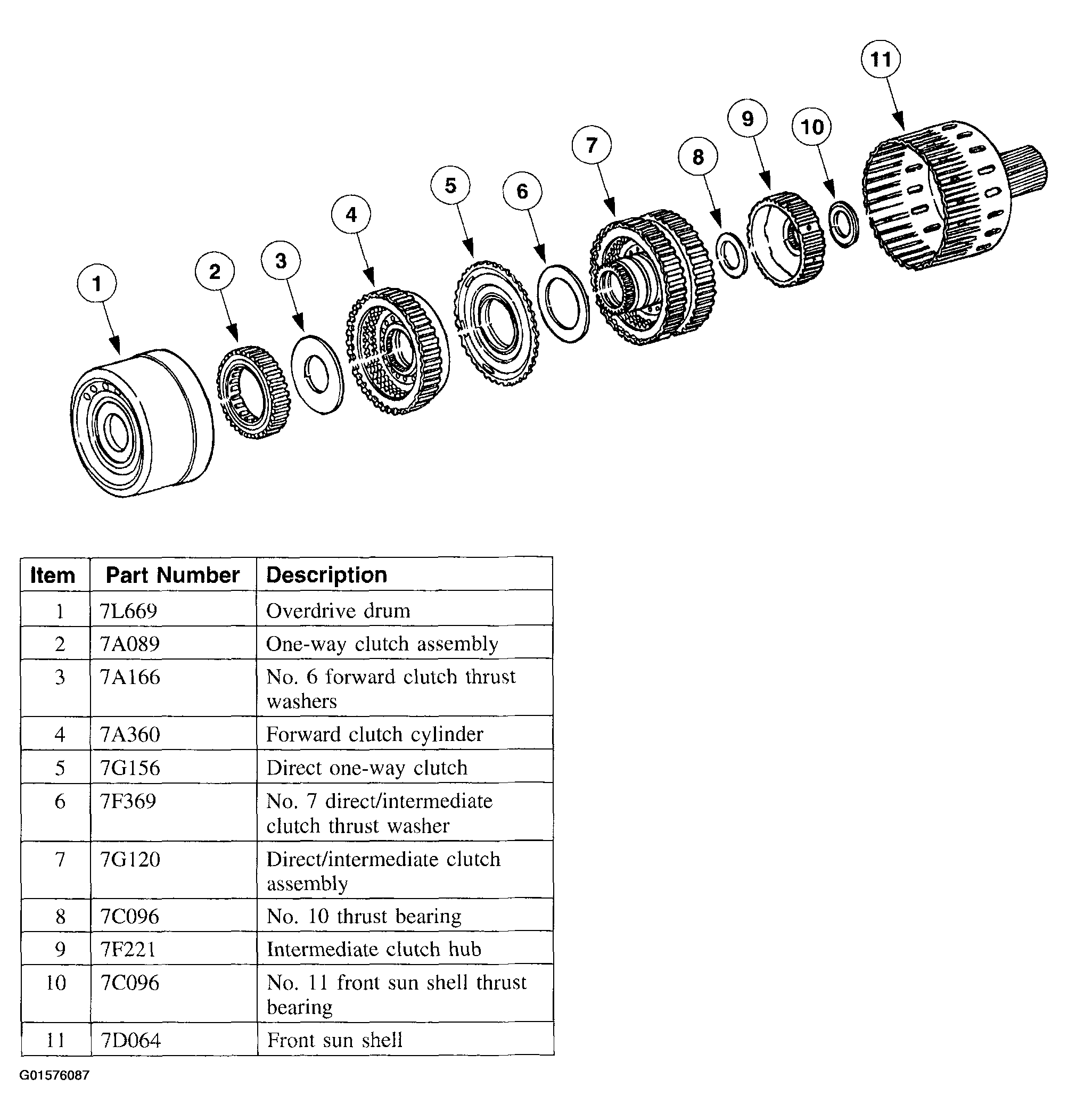

Fig 1: Exploded View Of Sun And Shell Assembly
G01576087Courtesy of FORD MOTOR CO.
