Automatic Transmission - Ax4S
›
Description And Operation
›
Disassembled Views
Disassembled Views

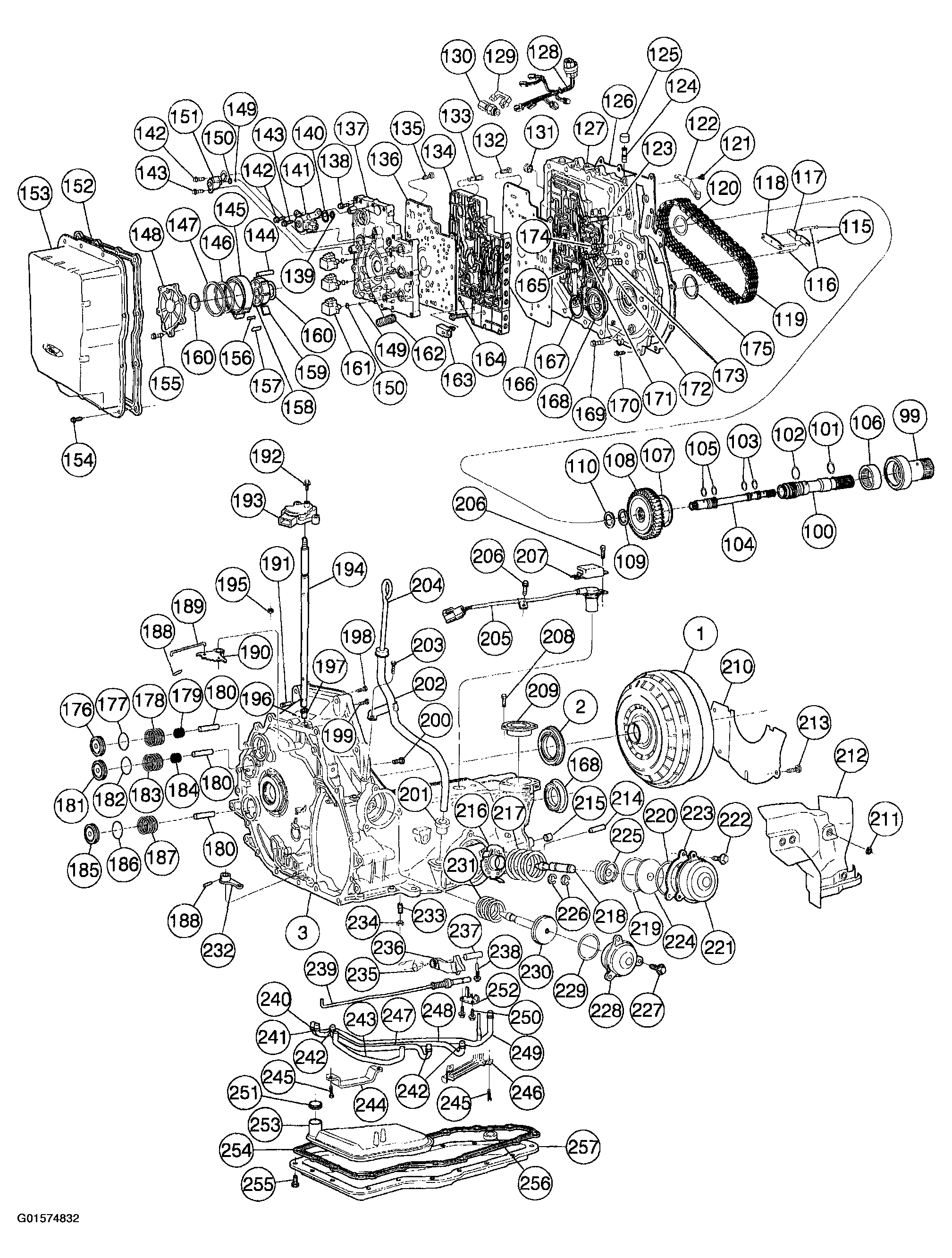

Fig 1: Identifying Disassembled Views (1 Of 7)
Courtesy of FORD MOTOR CO.

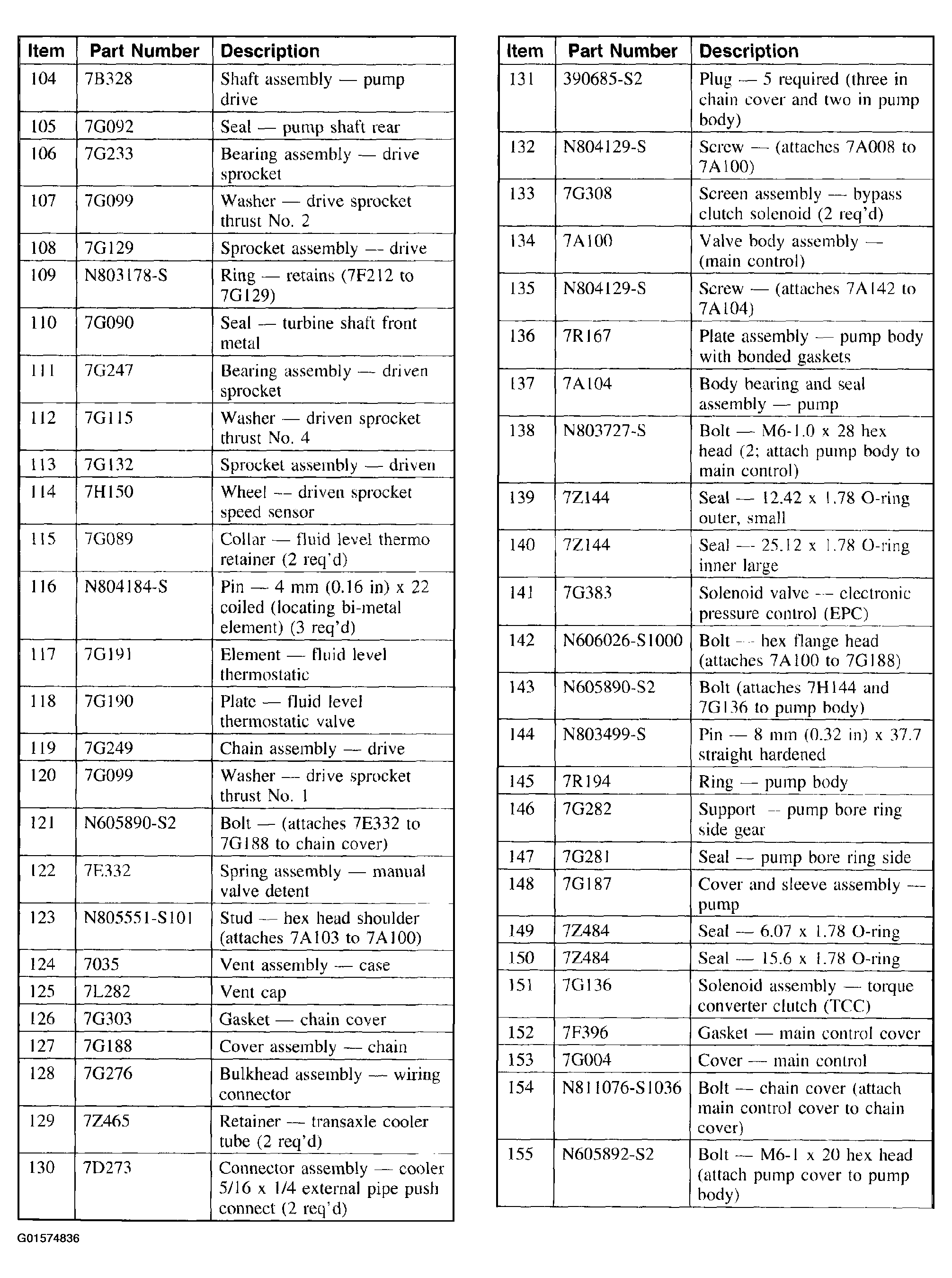

Fig 2: Identifying Disassembled Views (2 Of 7)
Courtesy of FORD MOTOR CO.

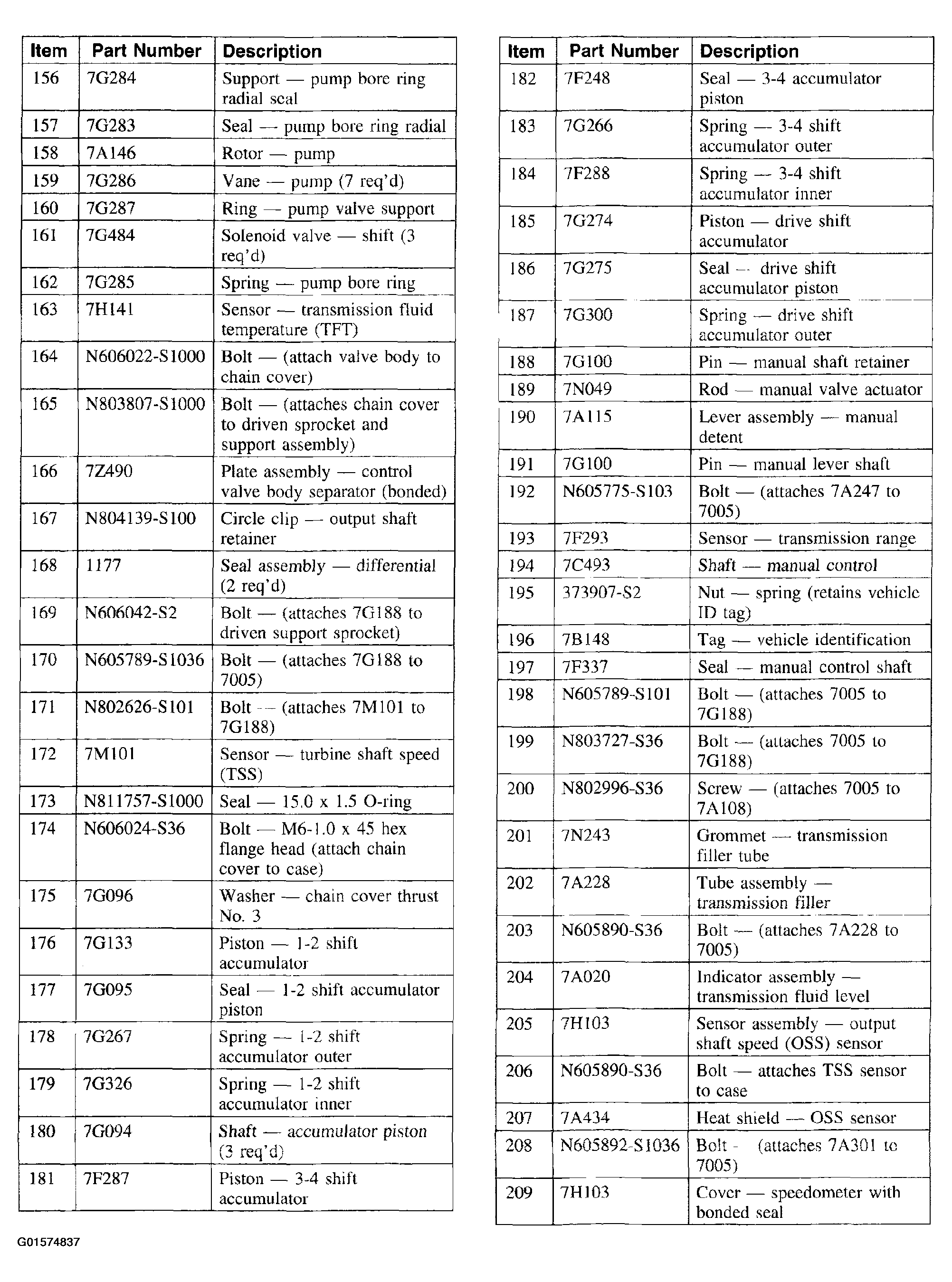

Fig 3: Identifying Disassembled Views (3 Of 7)
Courtesy of FORD MOTOR CO.

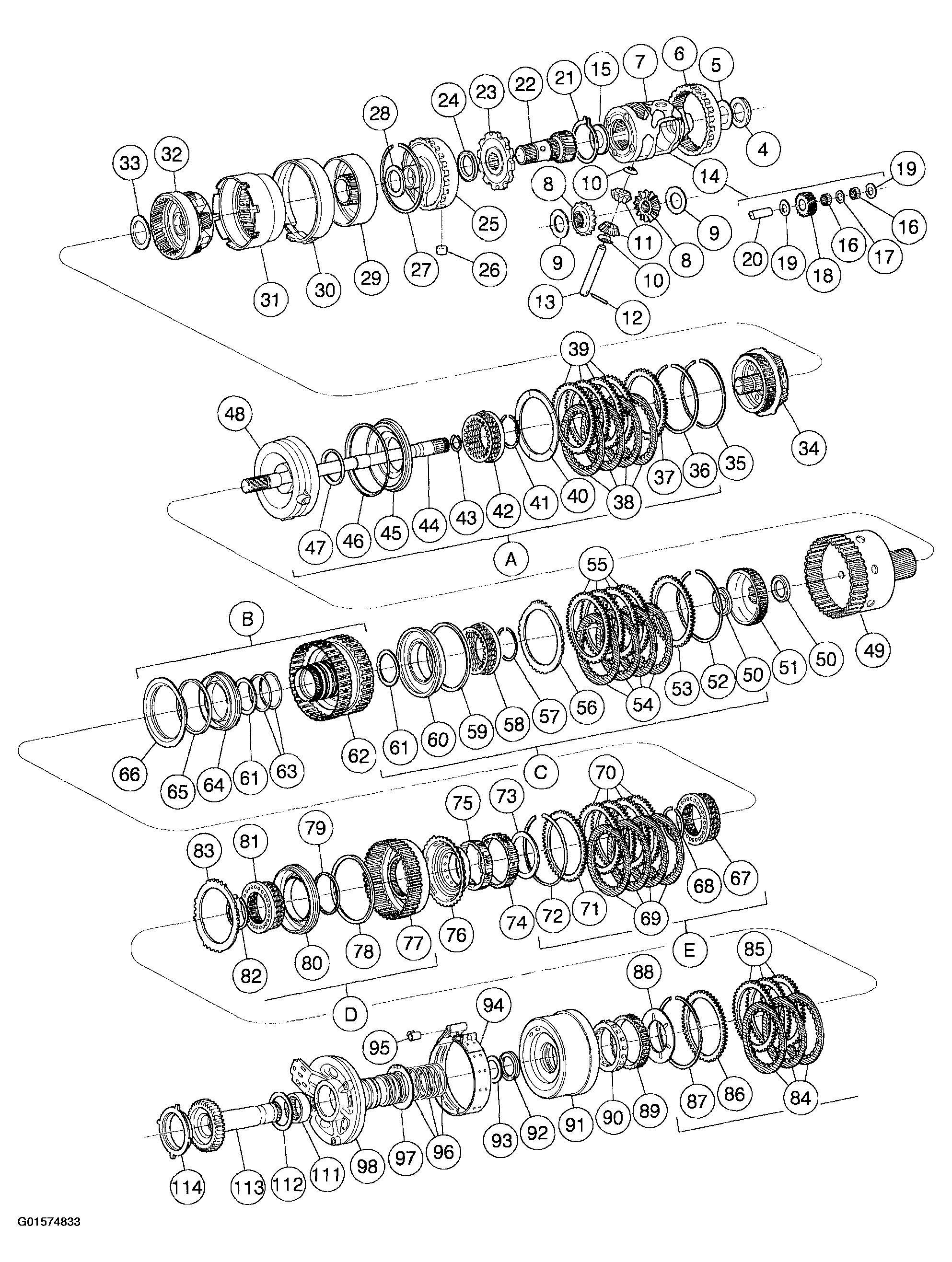

Fig 4: Identifying Disassembled Views (4 Of 7)
Courtesy of FORD MOTOR CO.

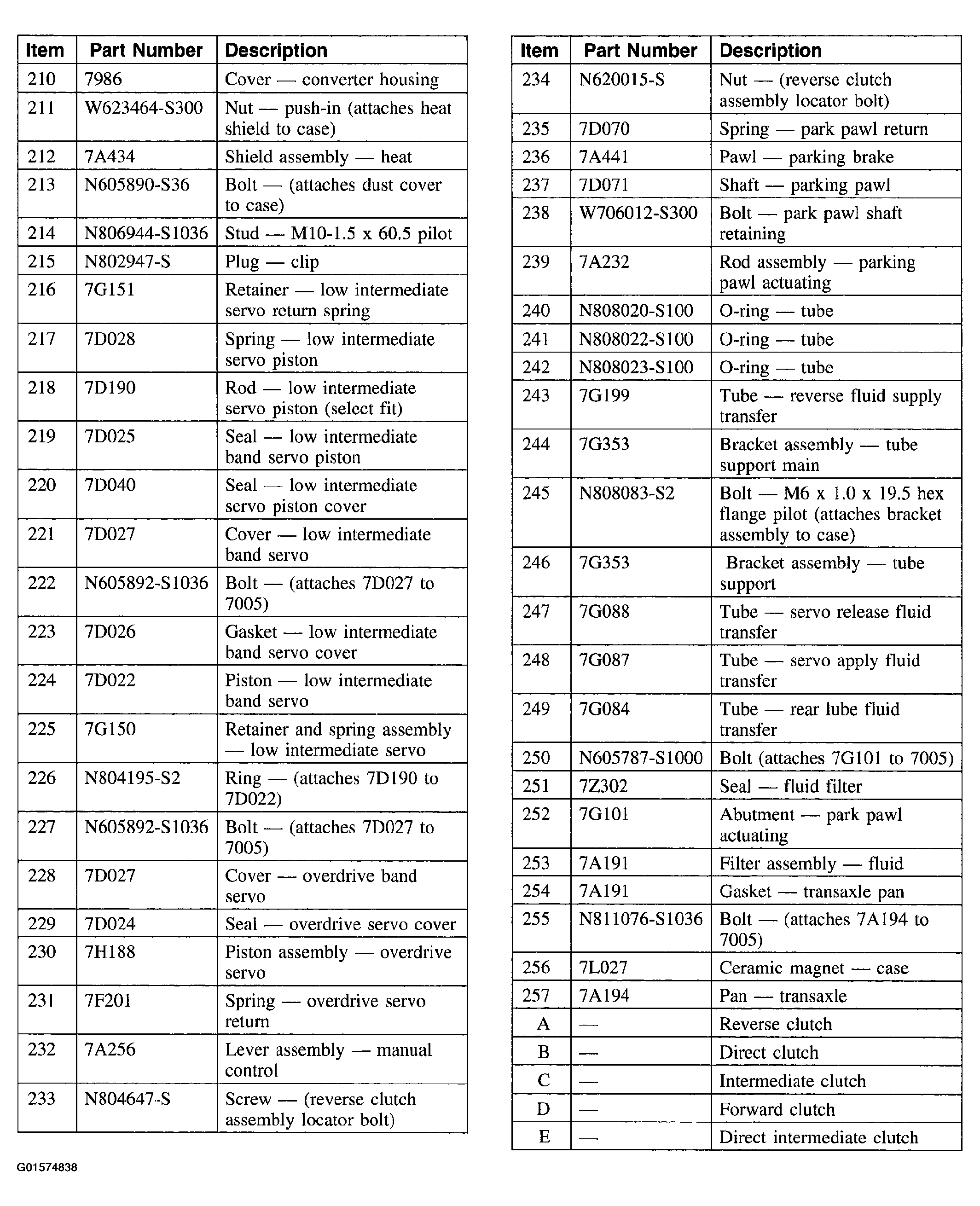

Fig 5: Identifying Disassembled Views (5 Of 7)
Courtesy of FORD MOTOR CO.

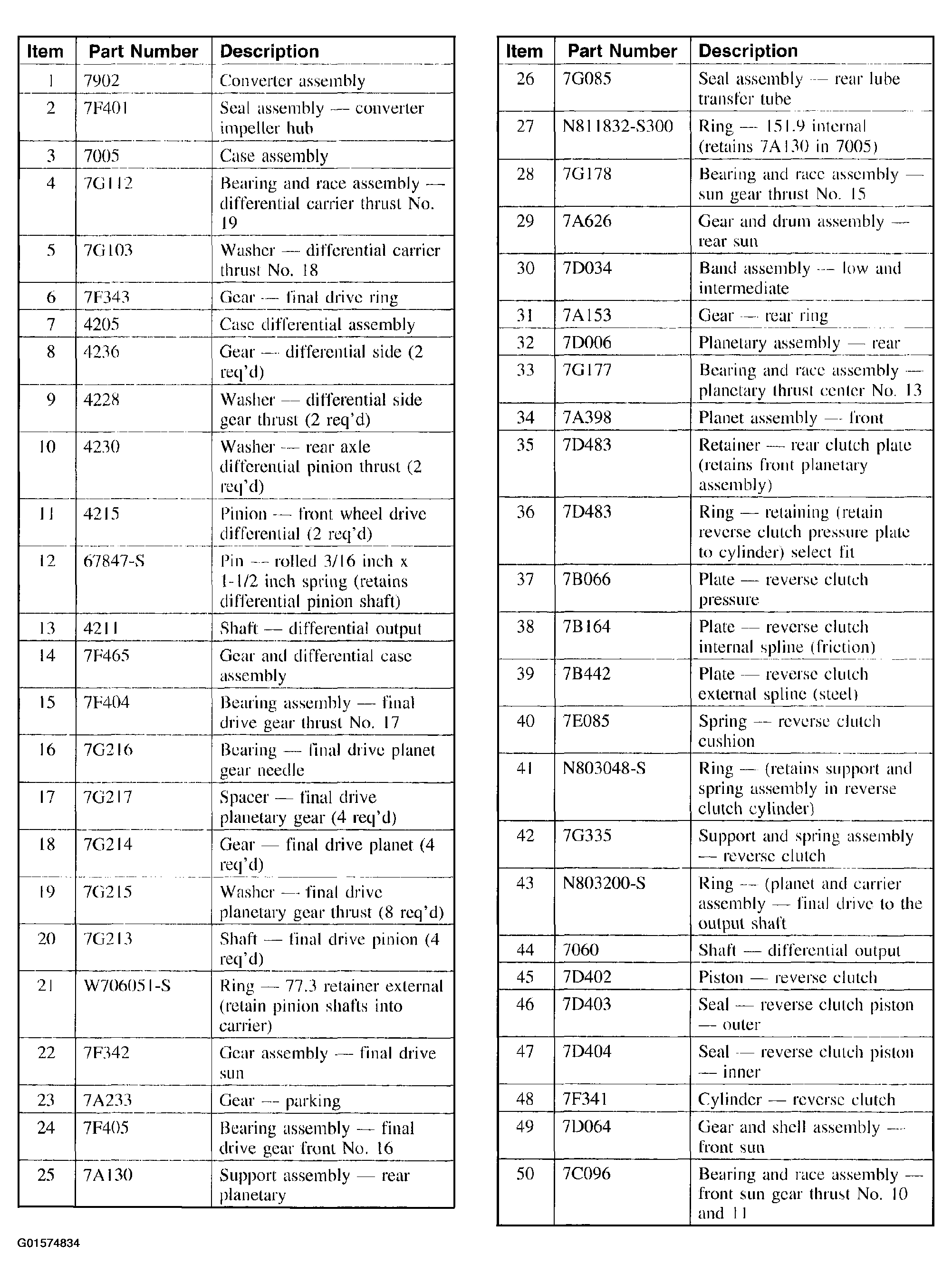

Fig 6: Identifying Disassembled Views (6 Of 7)
Courtesy of FORD MOTOR CO.

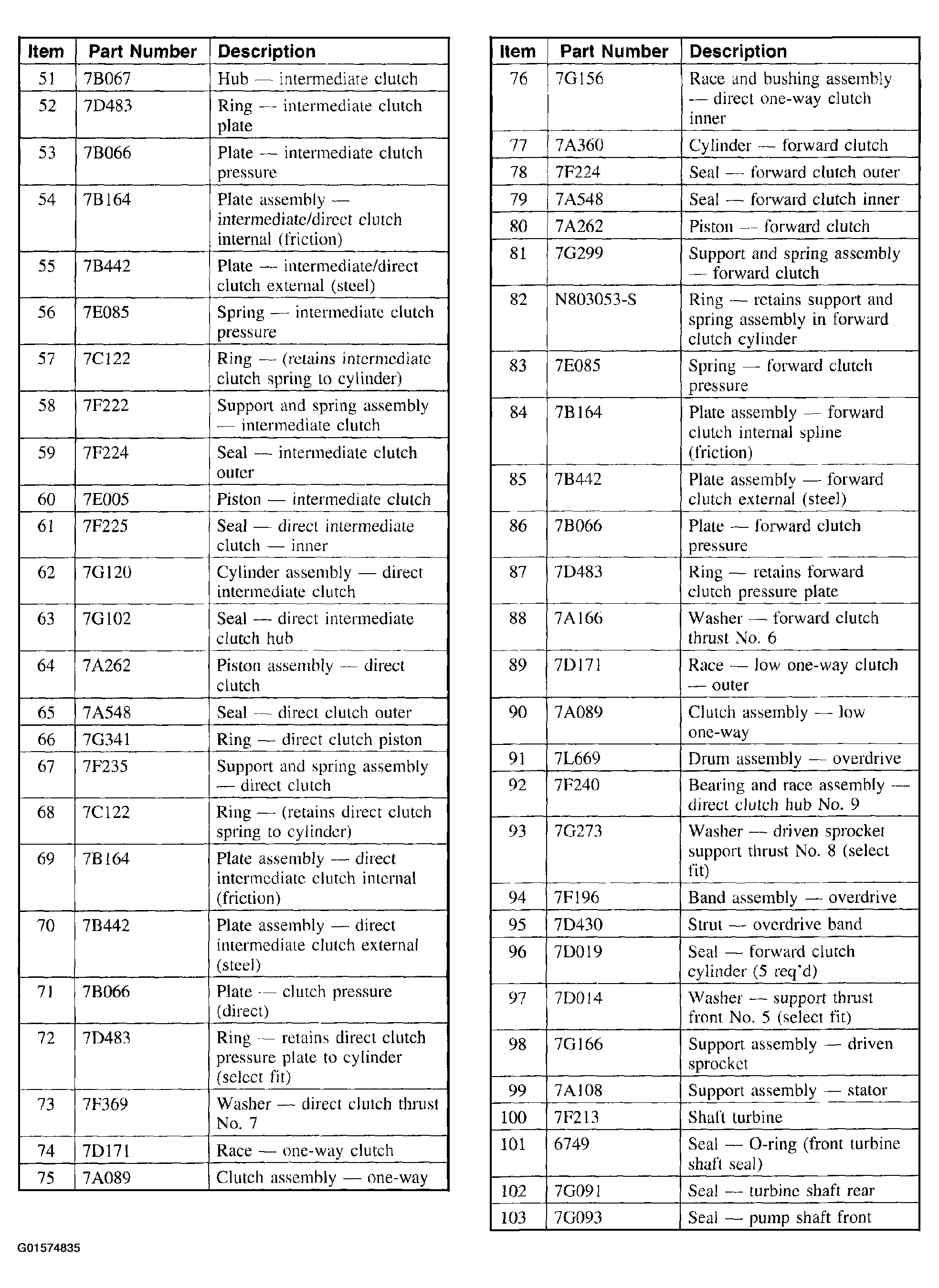

Fig 7: Identifying Disassembled Views (7 Of 7)
Courtesy of FORD MOTOR CO.
