Digital Transmission Range (Tr) Sensor: Installation

  1. Verify that the transaxle range selector lever is in NEUTRAL.
  2. Install the digital TR sensor and loosely install the bolts.

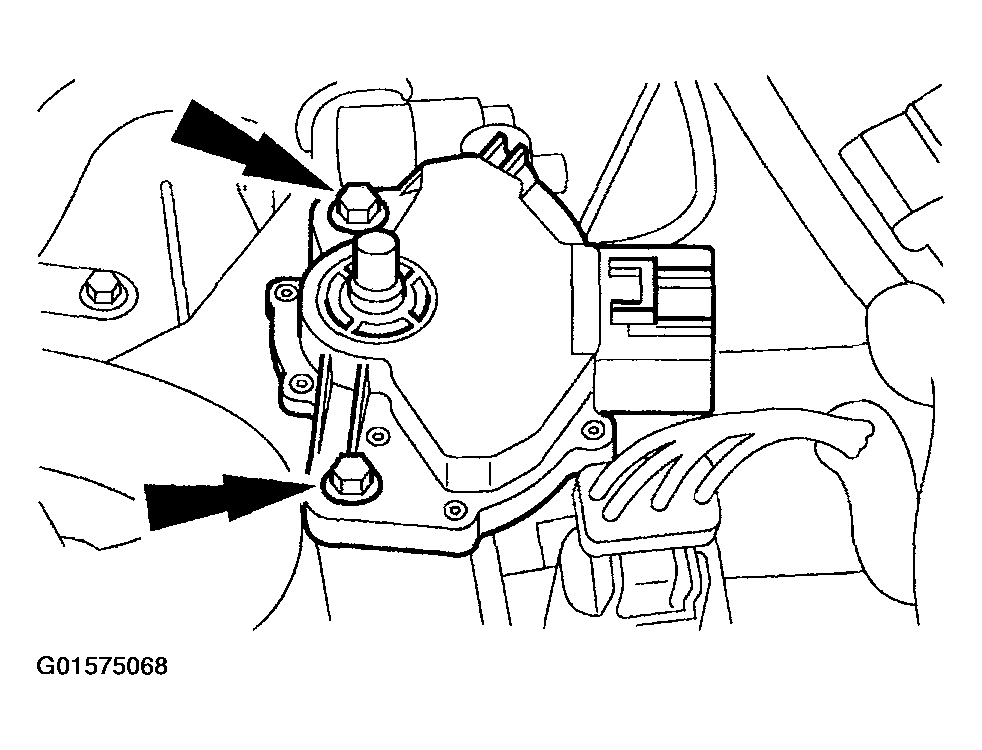

    Fig 1: Identifying Digital Transmission Range Sensor Bolt
    G01575068Courtesy of FORD MOTOR CO.
  3. Using the special tool, align the digital TR sensor.

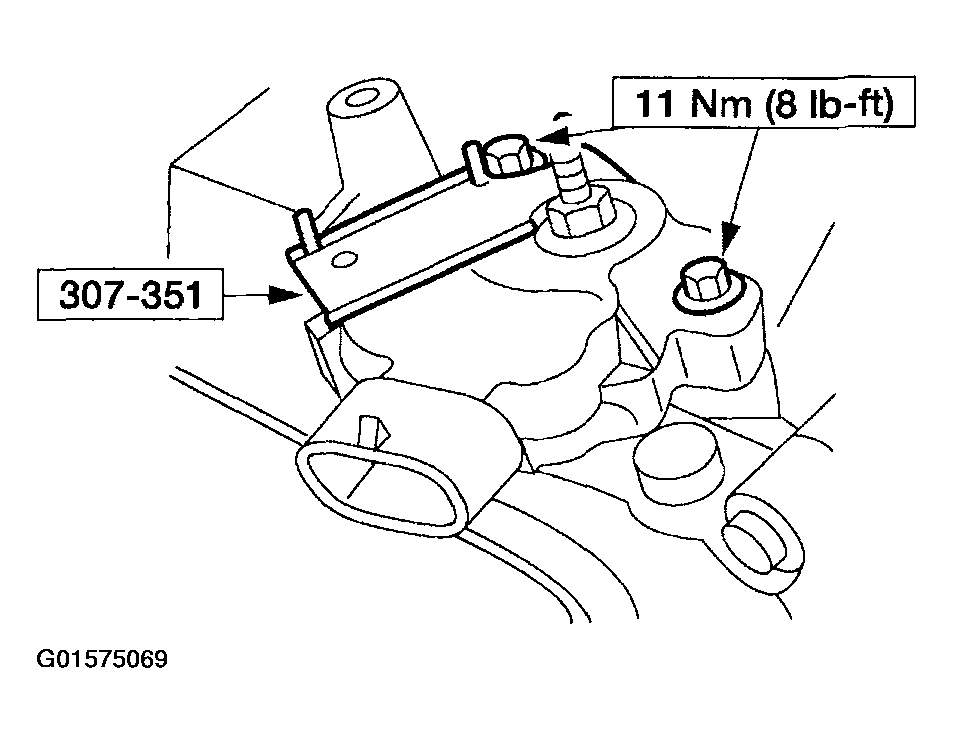

    Fig 2: Aligning Digital TR Sensor
    G01575069Courtesy of FORD MOTOR CO.
  4. Install the manual control lever and nut.

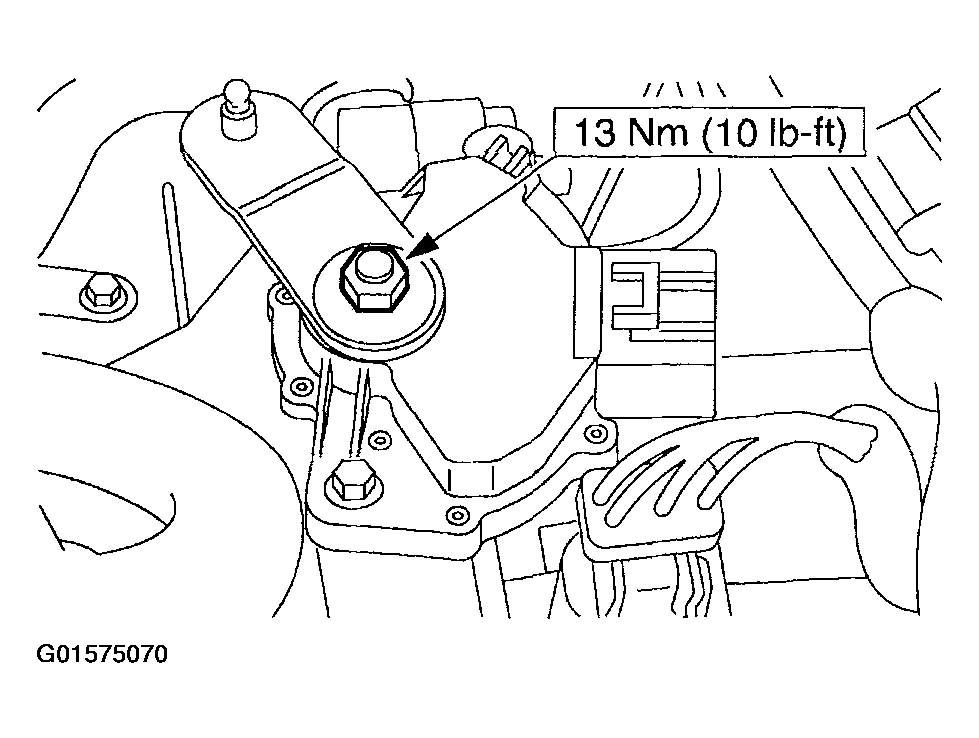

    Fig 3: Identifying Tightening Torque Of Manual Control Lever Nut
    G01575070Courtesy of FORD MOTOR CO.
  5. Connect the shift cable.

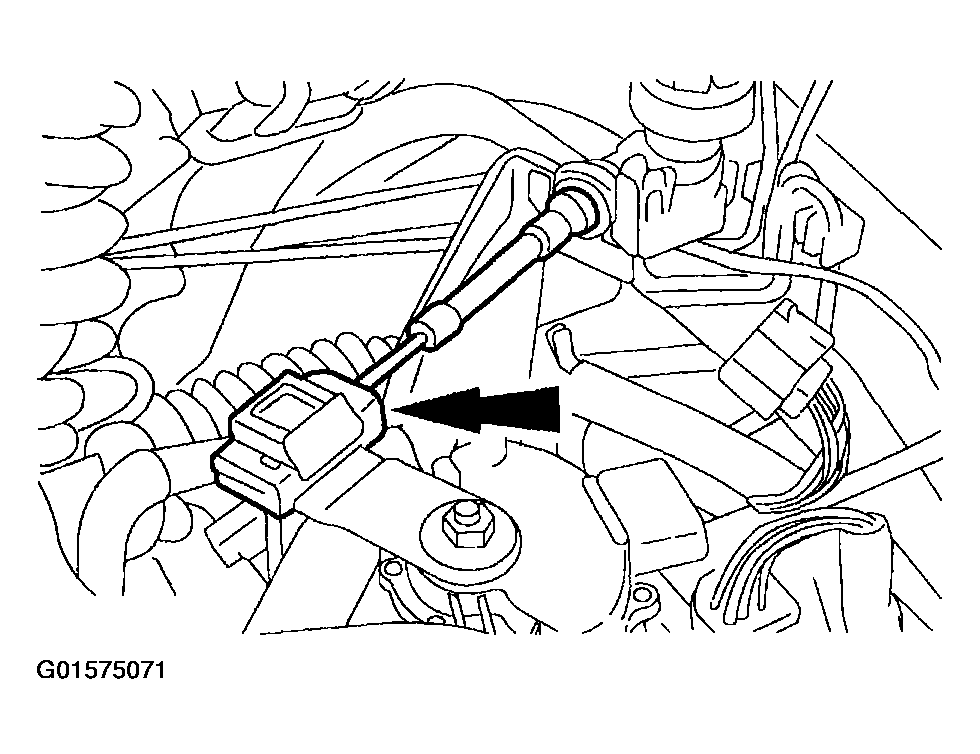

    Fig 4: Connecting Shift Cable
    G01575071Courtesy of FORD MOTOR CO.
  6. Verify that the shift cable is correctly adjusted. For additional information, refer to TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
  7. Connect connector.

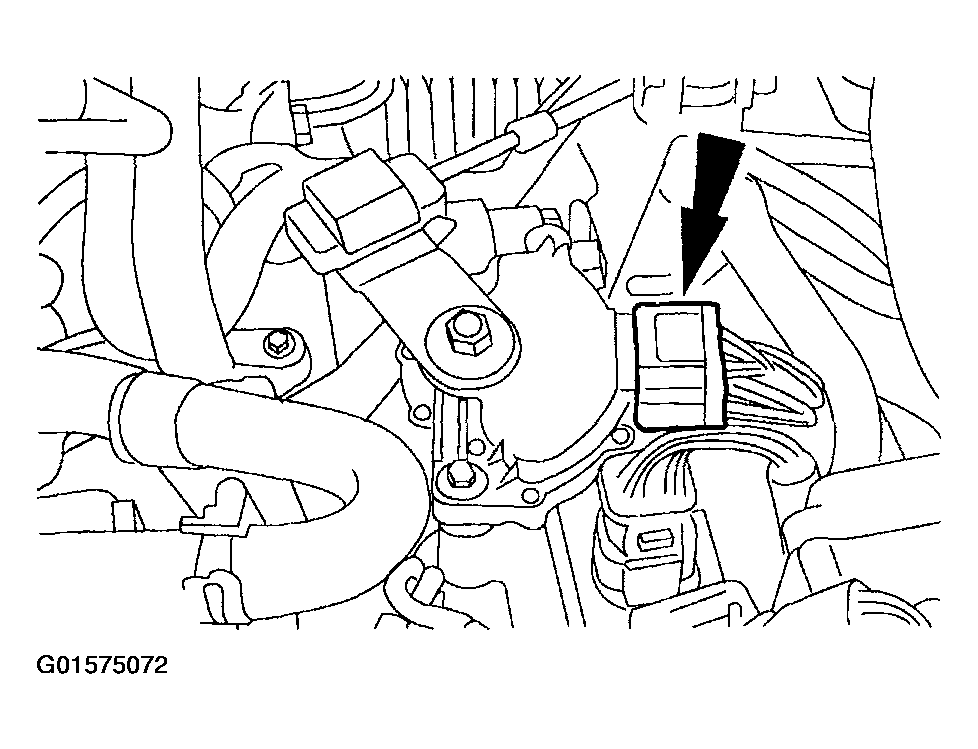

    Fig 5: Connecting Connector
    G01575072Courtesy of FORD MOTOR CO.
  8. Install the engine air cleaner assembly.
  9. Connect the battery ground cable.
  10. Check for correct vehicle operation.
