Automatic Transmission - Ax4S
›
Specifications
›
Band And Clutch Application Chart
Band And Clutch Application Chart

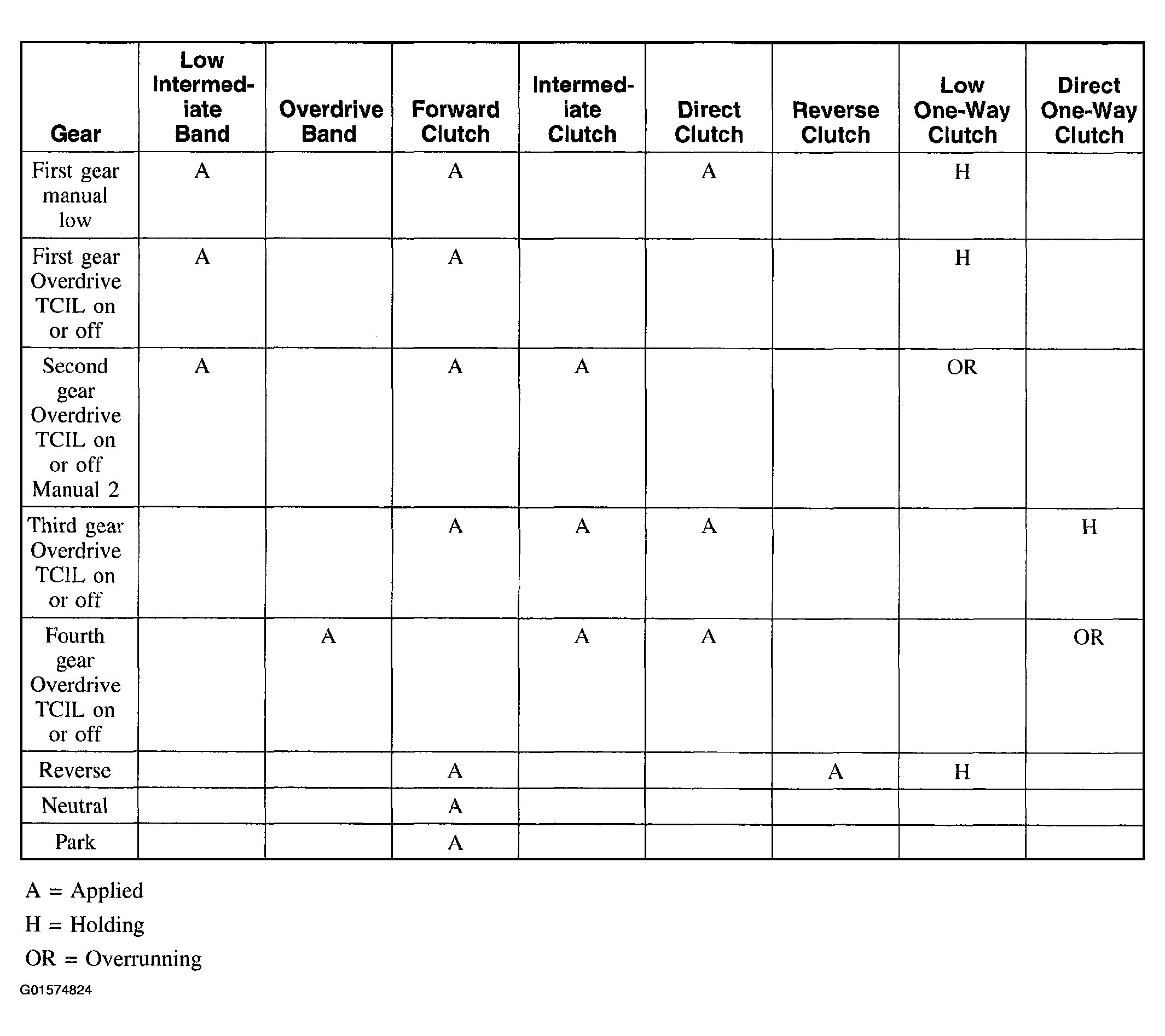

Fig 1: Band and Clutch Application Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
