Heated Seat Switch: Notes

Remove the components in the order listed in the figure below. To remove individual components, carry out only the following steps:

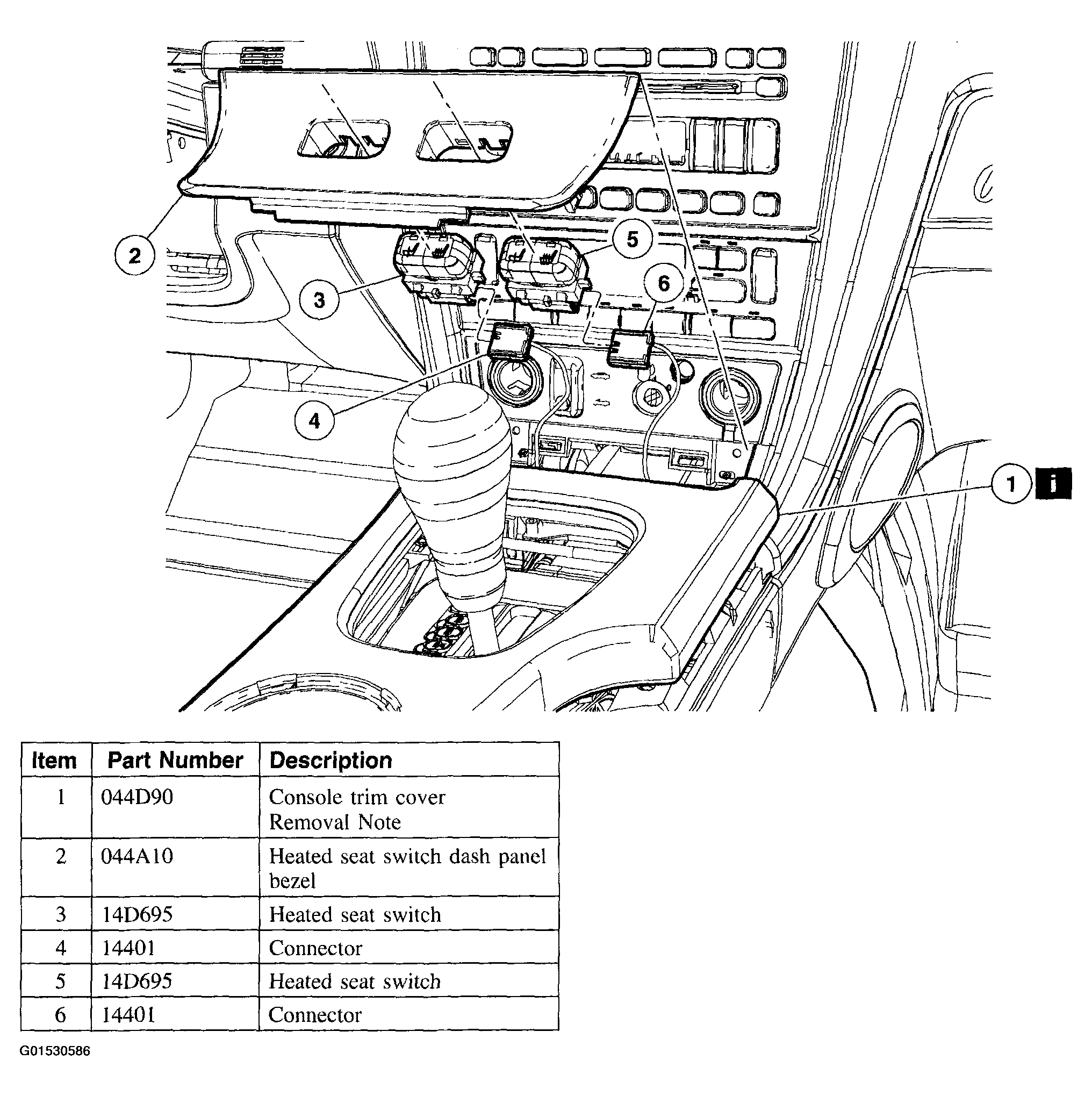

Fig 1: Heated Seat Switch Components Removal Chart
Courtesy of FORD MOTOR CO.

Fig 2: Heated Seat Switch Component Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
