Removal And Installation: Fender: Notes

Remove the front bumper cover. For additional information, refer to FRONT BUMPER .
Remove the wheel and tire assembly. For additional information, refer to SUSPENSION SYSTEM .
To remove the individual components, only carry out the following steps.

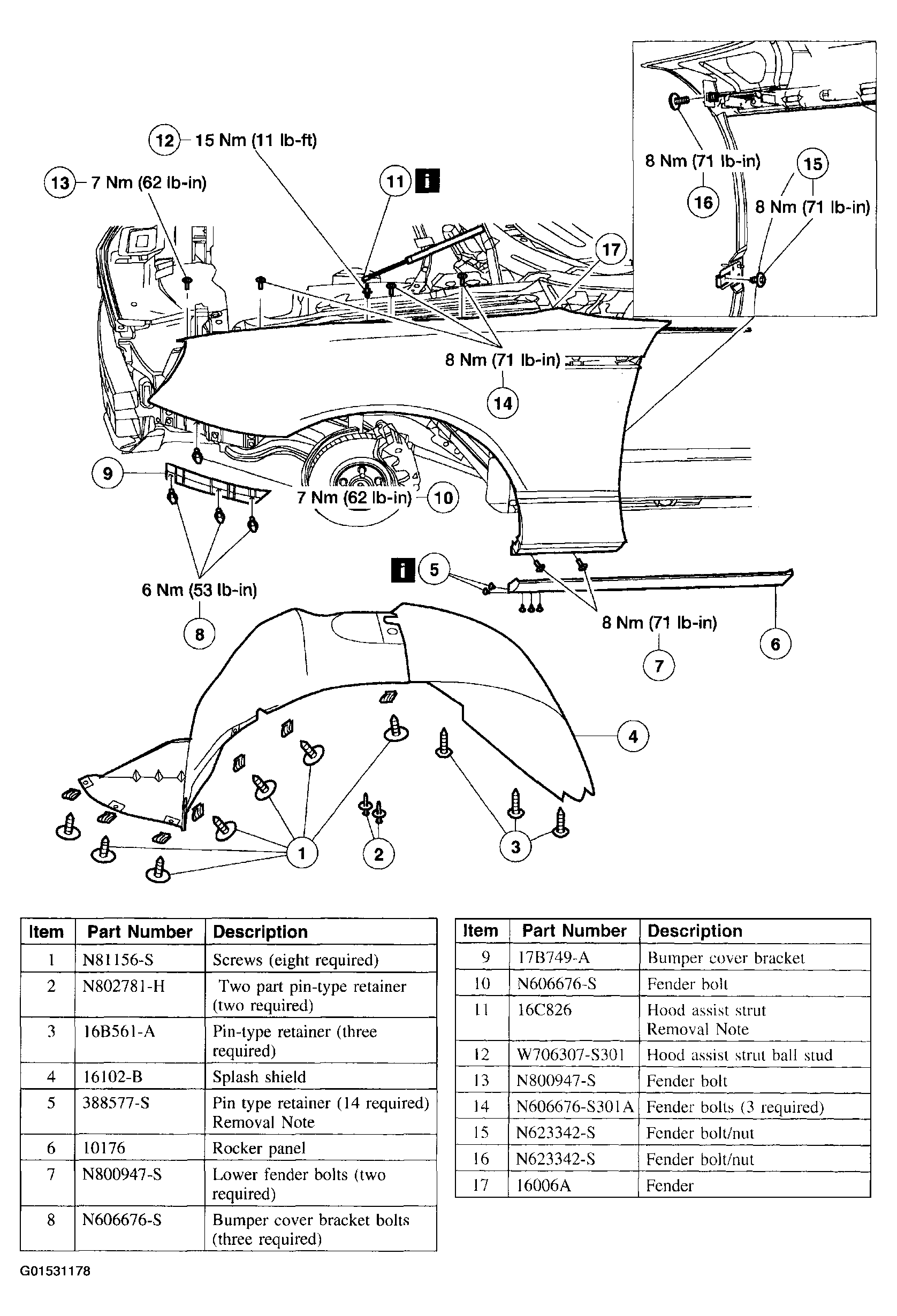

Fig 1: Fender Components Removing Steps
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the figure.

Fig 2: Fender Components Removal
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
