Traction Control Cancel Switch C280 (Traction Control Actuator)

Fig 1: Traction Control Cancel Switch C280 (Traction Control Actuator) Terminal

Courtesy of FORD MOTOR CO.

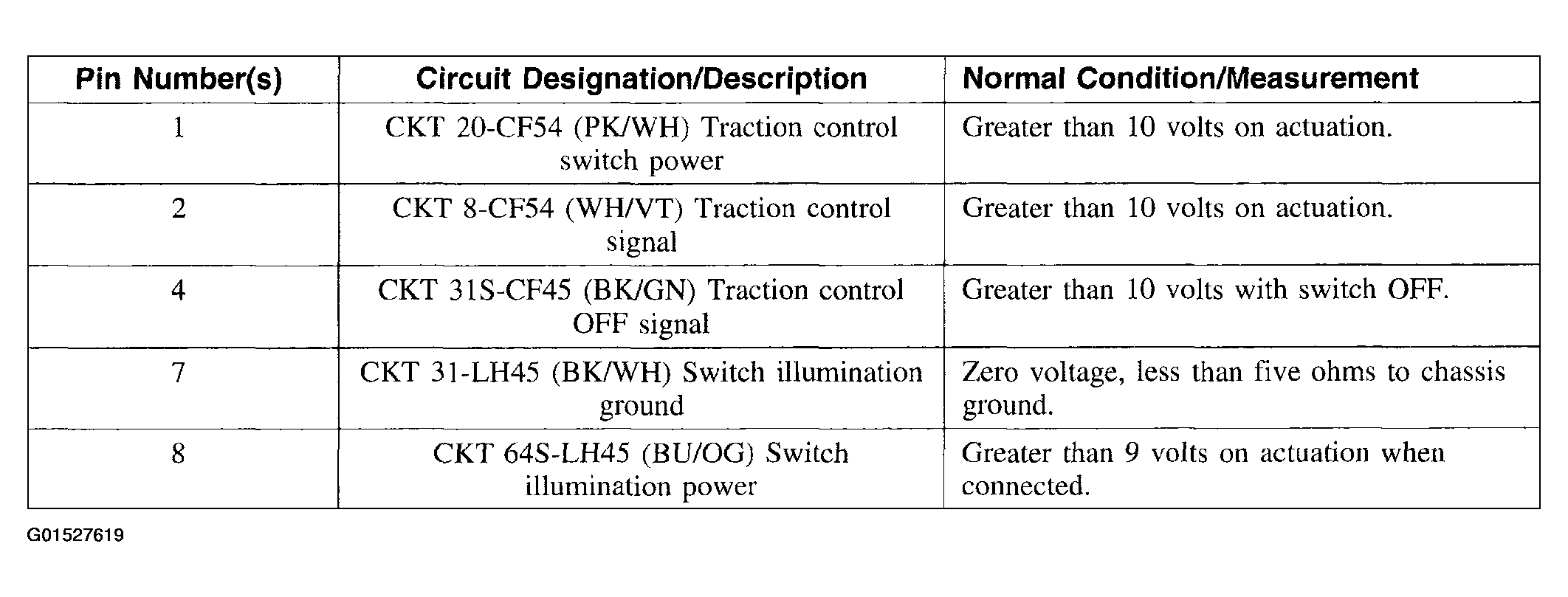

Fig 2: Connector Reference Chart

Courtesy of FORD MOTOR CO.
