Water Pump: Notes

Fig 1: Material Chart

Courtesy of FORD MOTOR CO.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the thermostat housing. For additional information, refer to THERMOSTAT HOUSING .
Remove the accessory drive belt. For additional information, refer to ENGINE .
Remove the components in the order indicated in the following illustration and table.

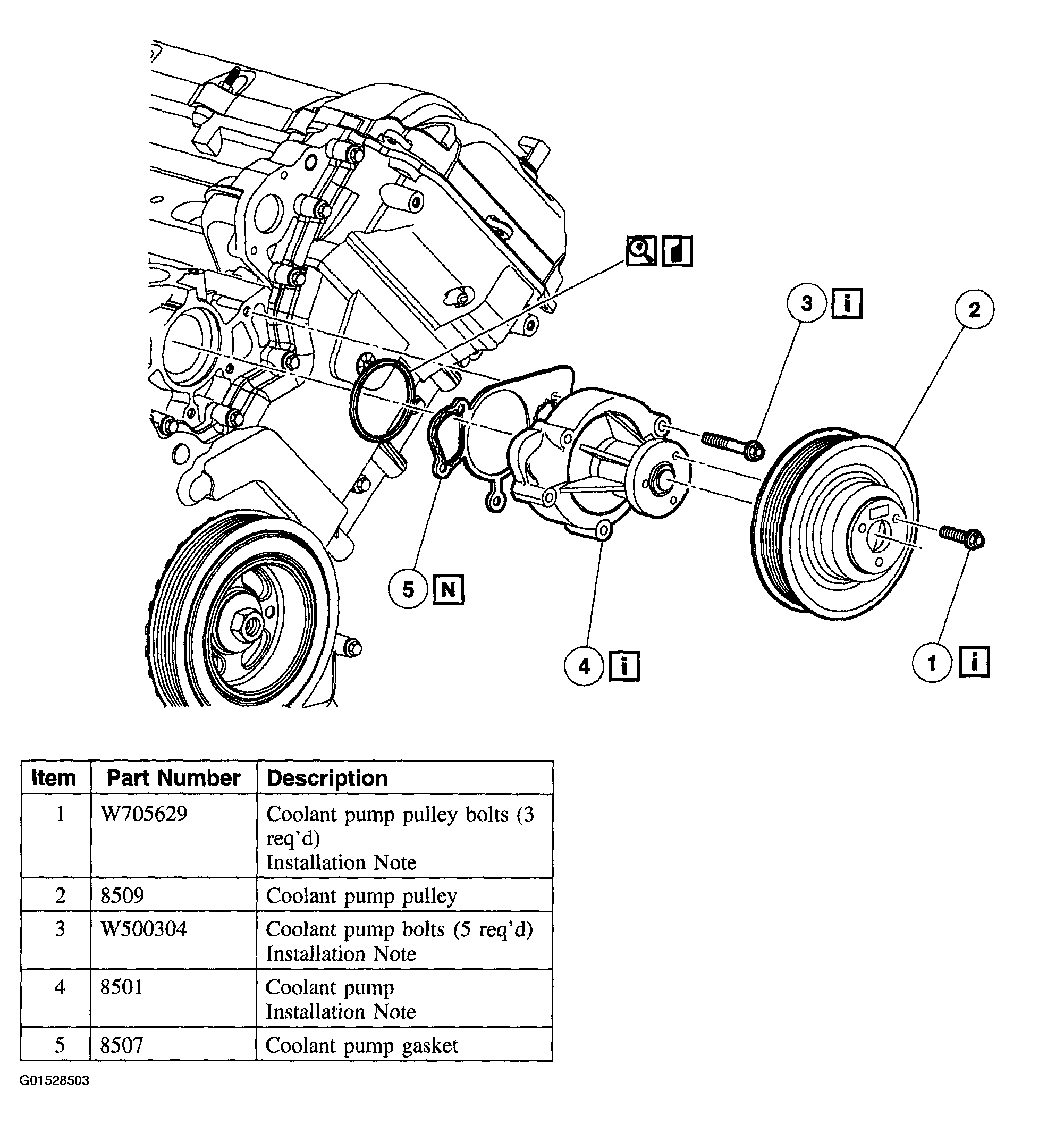

Fig 2: Water Pump Components Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
