Engine Mount: Notes

Special Tool(s)

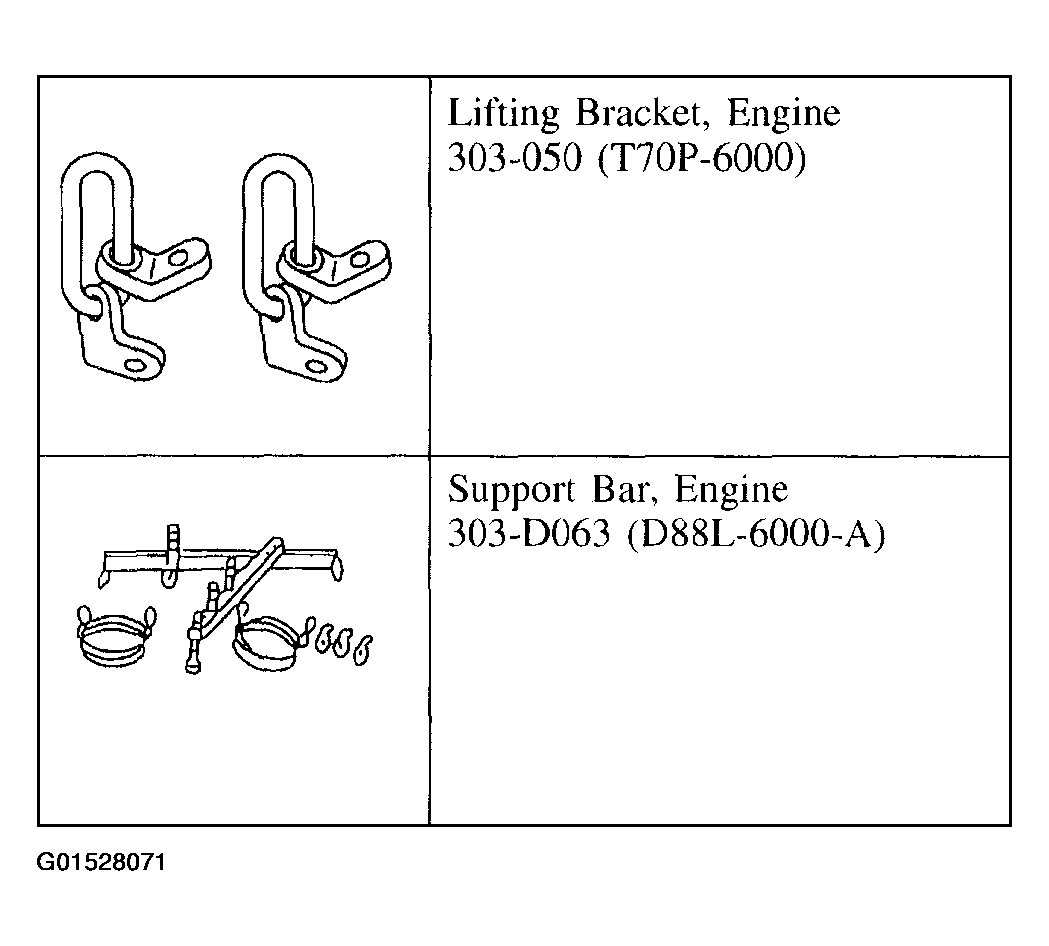

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
3. Remove the air cleaner outlet tube. .
4. Remove the upper radiator sight shield.
   Fig 2: Removing Upper Radiator Sight Shield

   Courtesy of FORD MOTOR CO.
5. Install the special tools and support the engine.

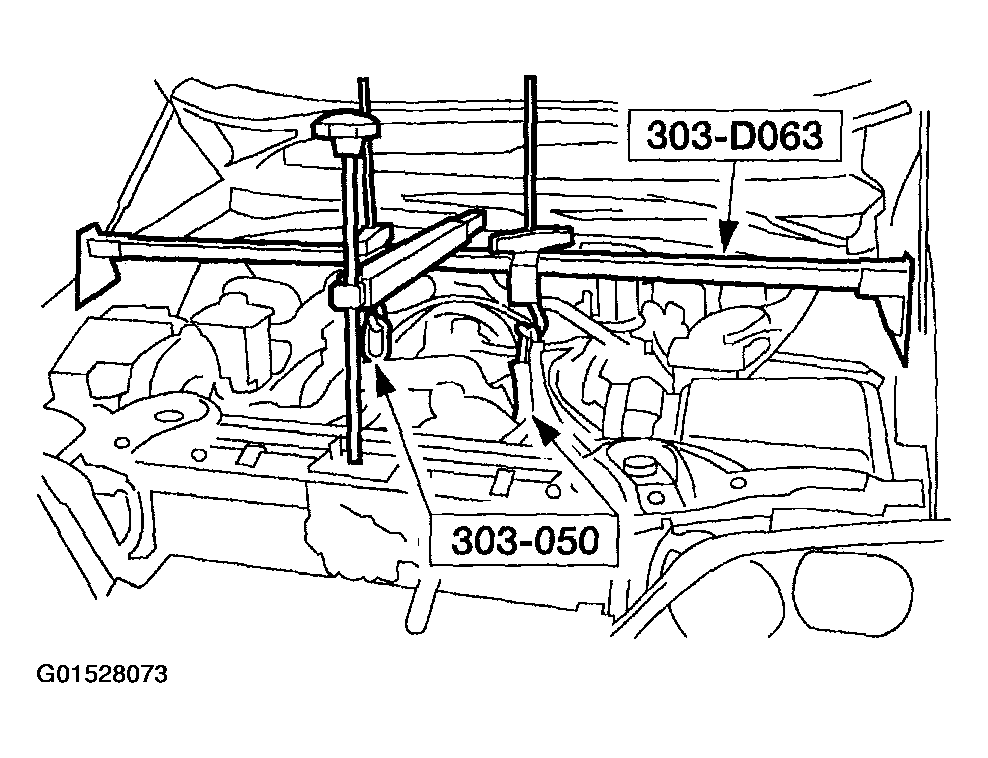

   Fig 3: Installing Special Tools To Support Engine

   Courtesy of FORD MOTOR CO.
6. Remove the LH and the RH lower splash shield.

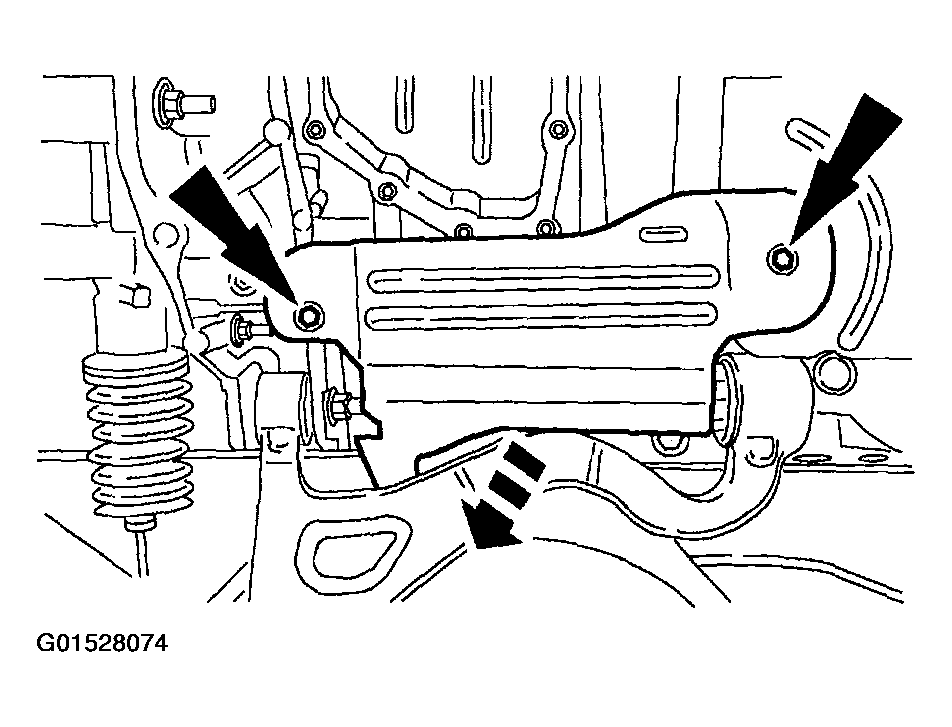

   Fig 4: Removing Lower Splash Shields

   Courtesy of FORD MOTOR CO.
7. Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the listed steps.

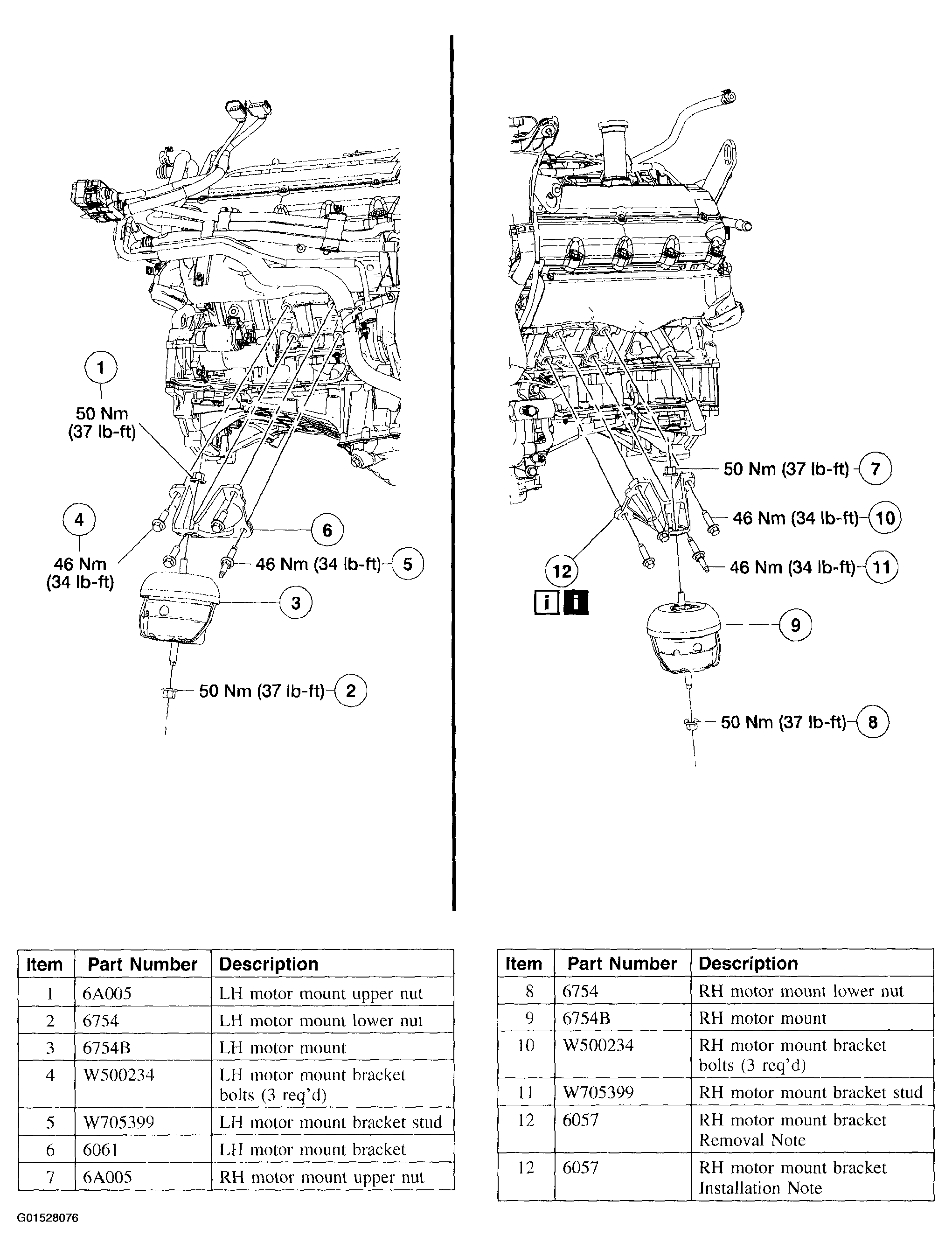

   Fig 5: Engine Mount Component Removal Chart

   Courtesy of FORD MOTOR CO.
   Fig 6: Engine Mount Component Locator

   Courtesy of FORD MOTOR CO.
8. To install, reverse the removal procedure.
