Intake Manifold: Notes

Fig 1: Material Chart
G01527889Courtesy of FORD MOTOR CO.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
  2. Remove the air cleaner outlet tube. .
  3. CAUTION: The coolant drain procedure must be followed exactly or damage to the engine can occur.
  4. Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
  5. Remove the cowl vent screen. For additional information, refer to BODY SYSTEM - EXTERIOR .
  6. Remove the engine compartment brace.

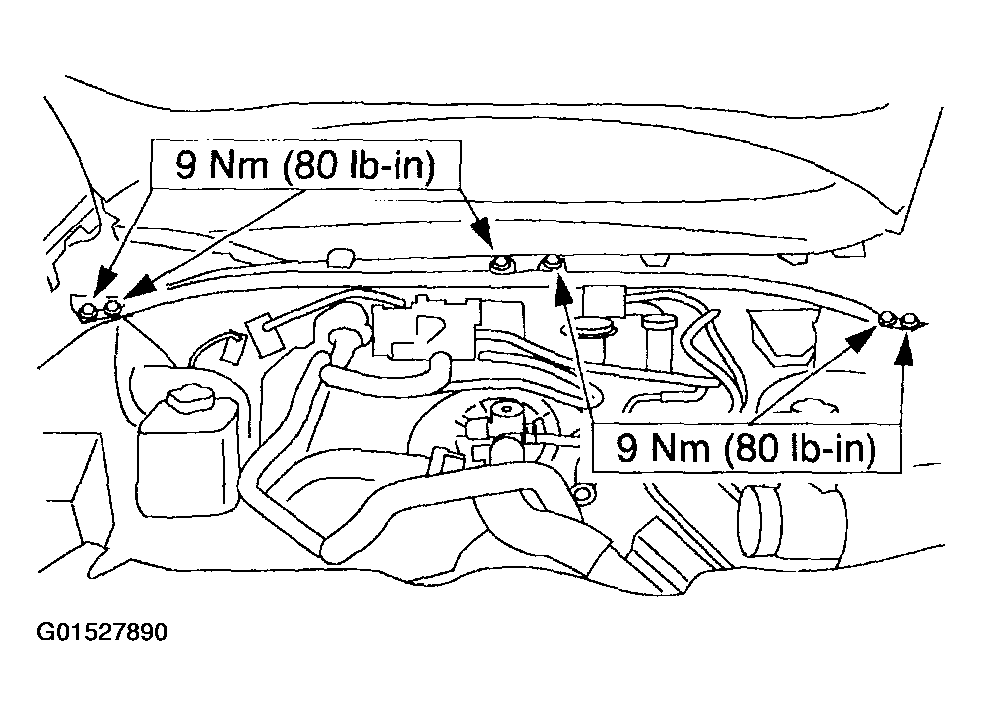

    Fig 2: Removing Engine Compartment Brace
    G01527890Courtesy of FORD MOTOR CO.
  7. Disconnect the fuel line. For additional information, refer to FUEL SYSTEM .
  8. Remove the exhaust gas recirculation (EGR) system module. For additional information, refer to EXHAUST GAS RECIRCULATION (EGR) VALVE .
  9. Remove the components in the order indicated in the following illustration and table.

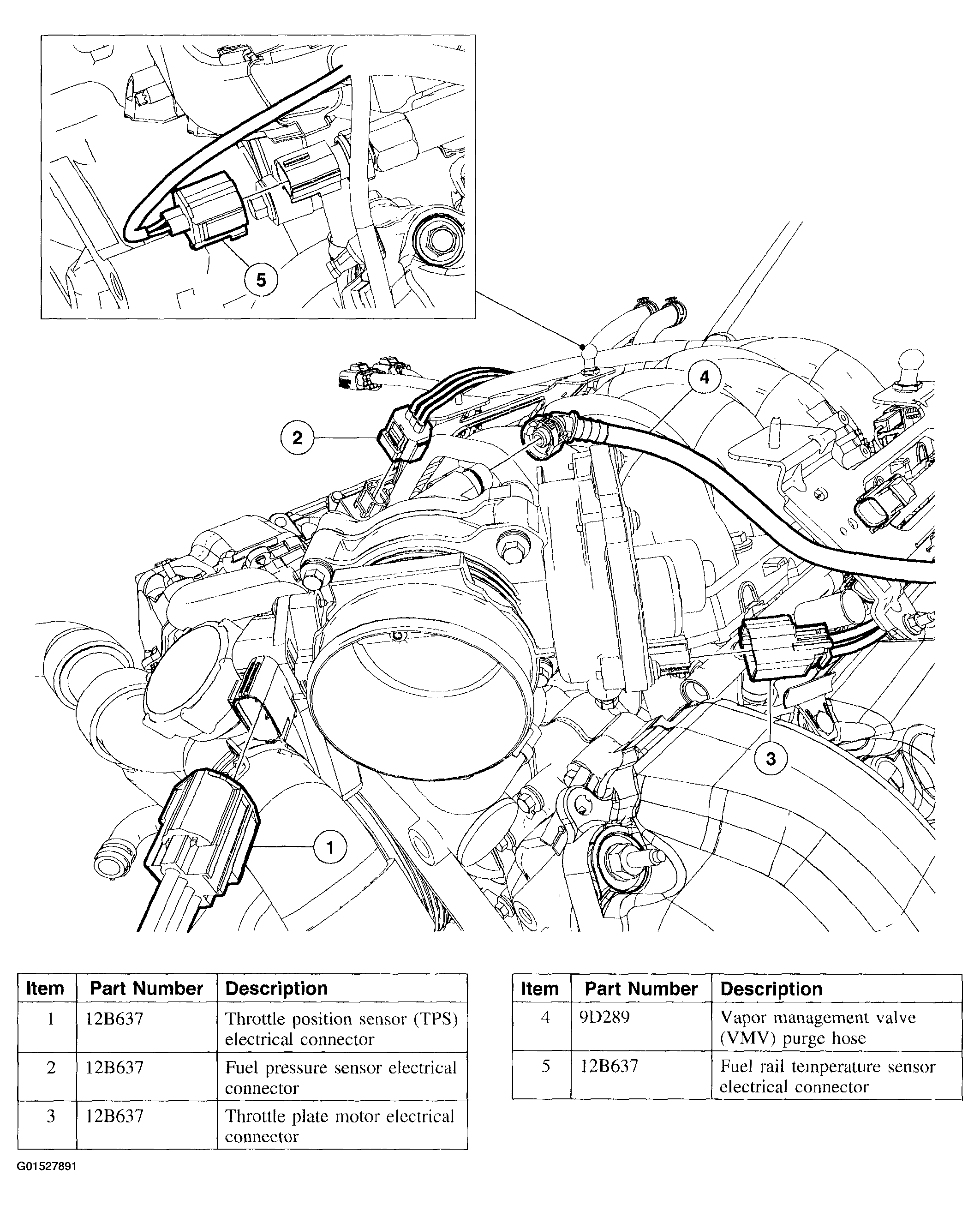

    Fig 3: Intake Manifold Component Removal Chart (Items 1-5)
    G01527891Courtesy of FORD MOTOR CO.
  10. Remove the components in the order indicated in the following illustration and table.

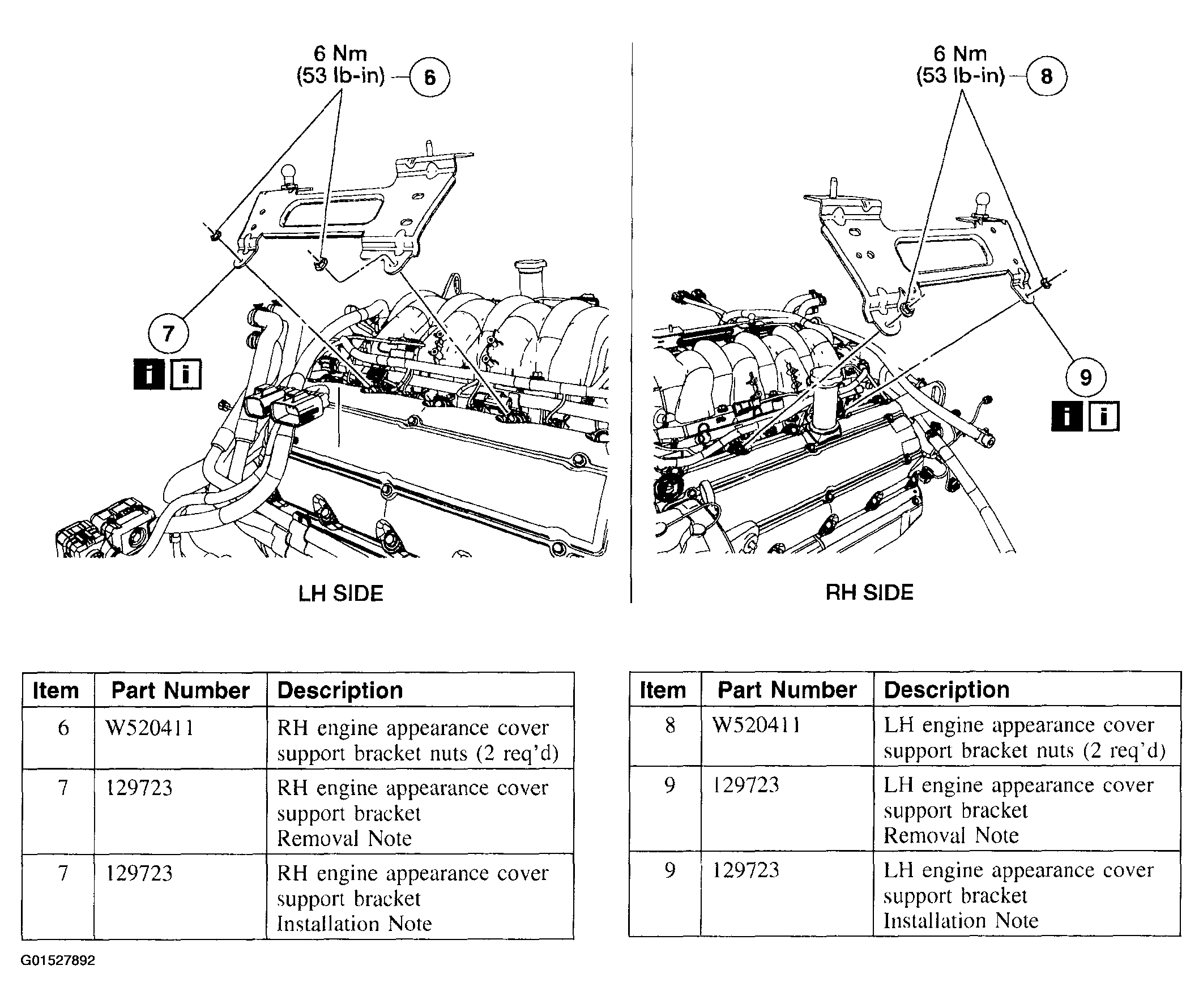

    Fig 4: Intake Manifold Component Removal Chart (Items 6-9)
    G01527892Courtesy of FORD MOTOR CO.
  11. Remove the components in the order indicated in the following illustration and table.

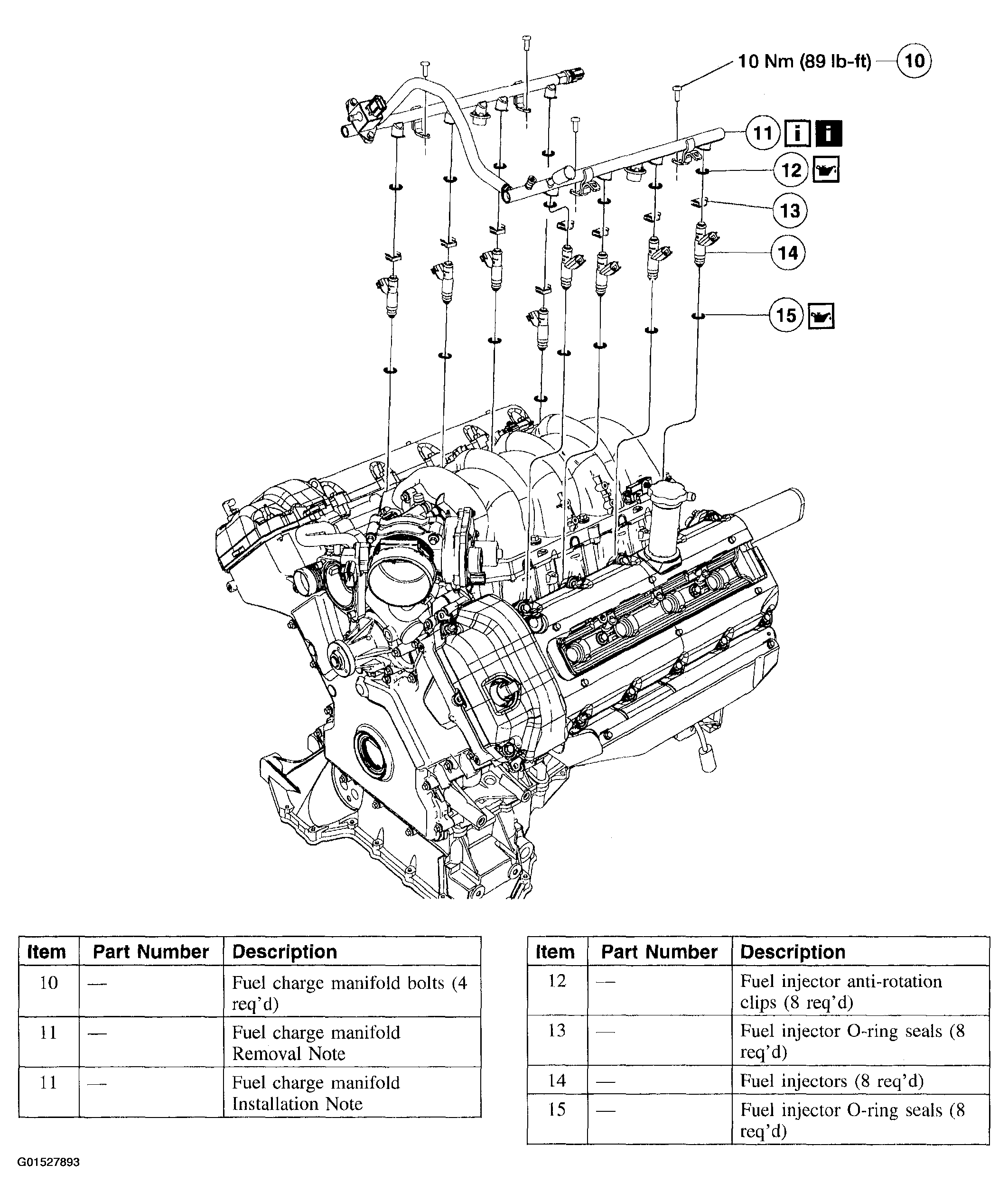

    Fig 5: Intake Manifold Component Removal Chart (Items 10-15)
    G01527893Courtesy of FORD MOTOR CO.
  12. Remove the components in the order indicated in the following illustration and table.

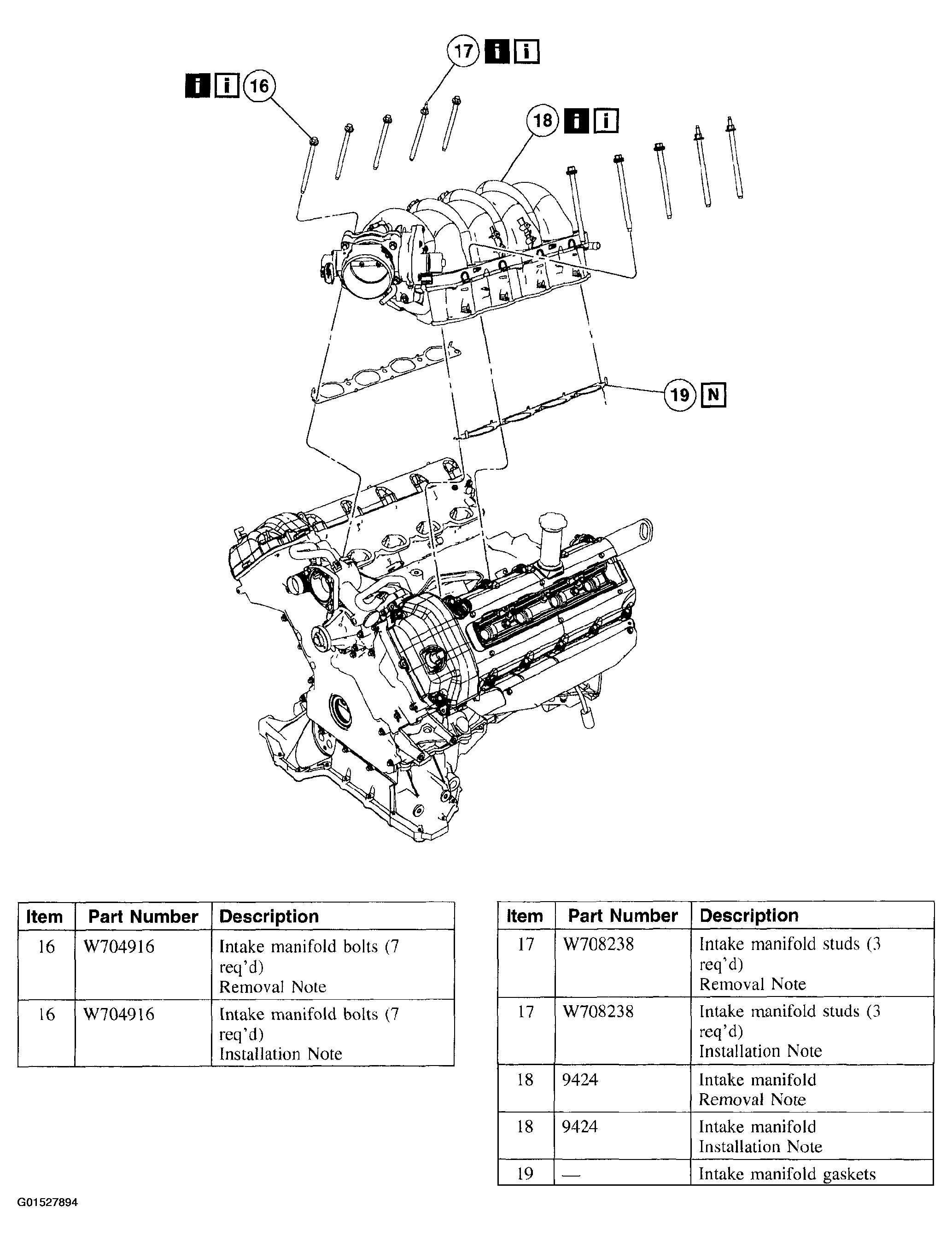

    Fig 6: Intake Manifold Component Removal Chart (Items 16-19)
    G01527894Courtesy of FORD MOTOR CO.
  13. To install, reverse the removal procedure.
