Oil Cooler: Notes

Fig 1: Material Chart

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

CAUTION: The cooling system filling and bleeding procedure must be followed exactly or damage to the engine can occur.

Drain the cooling system. For additional information, refer to ENGINE COOLING .
Drain the engine oil.
Remove the lower splash shield.
Remove the components in the order indicated in the following illustration.

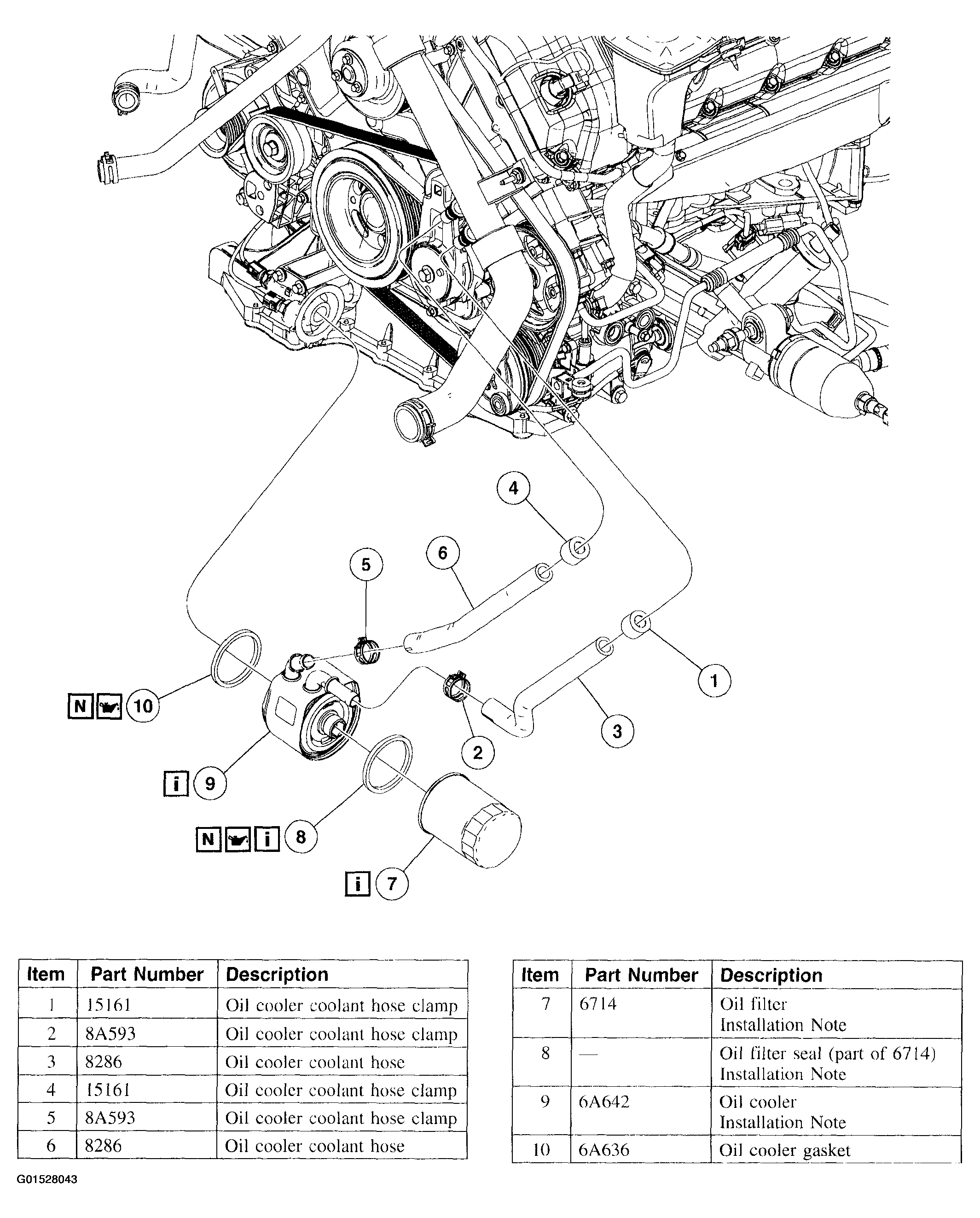

Fig 2: Oil Cooler Component Locator
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
